KanexPro Dante 2-Channel Analog Line Output Adapter

About: KanexPro Dante 2-Channel Analog Line Output Adapter

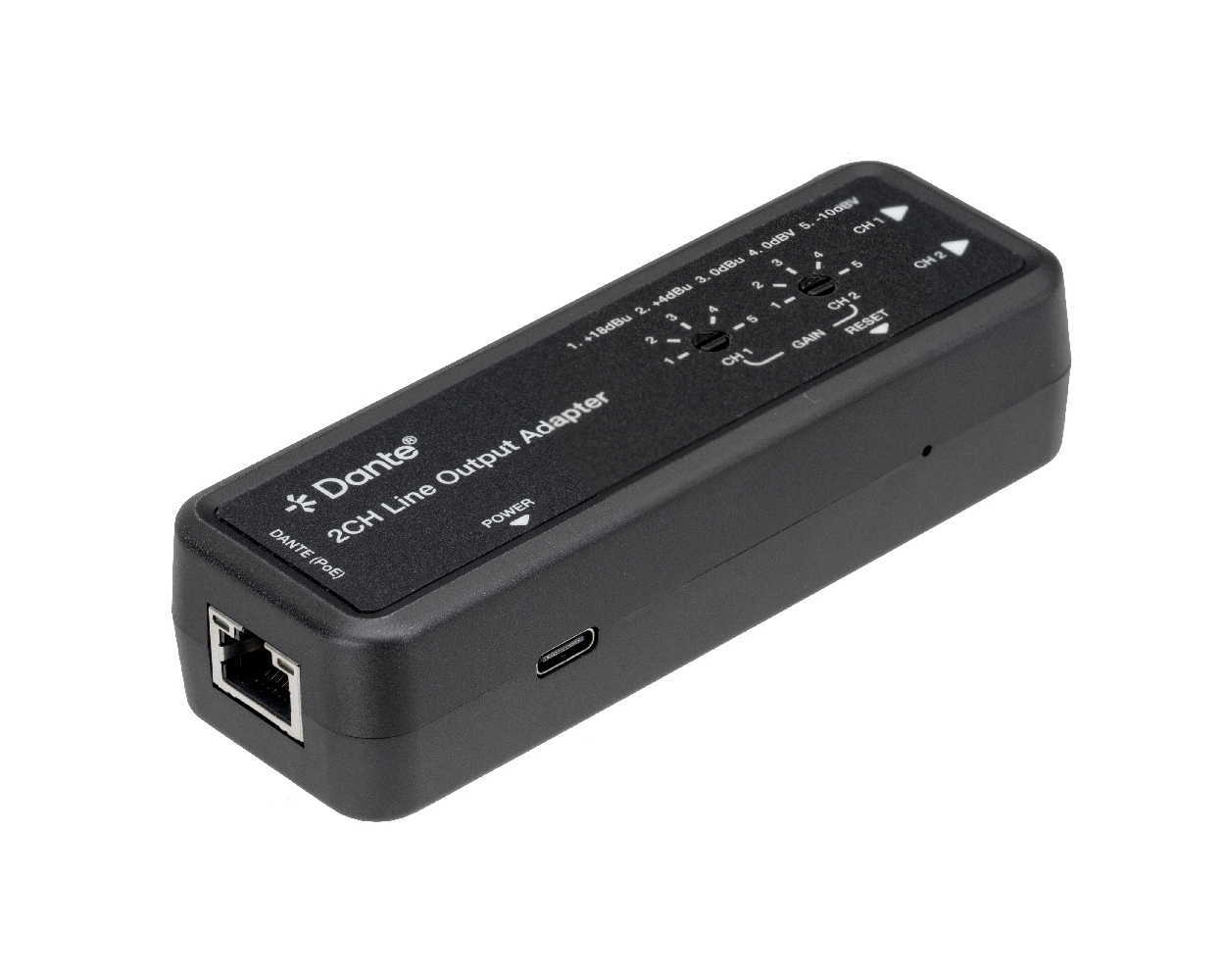

Convert Dante digital audio to balanced or unbalanced analog line output with studio-grade fidelity. The KanexPro AUD-DTE-LINEOUT is a compact 2-channel Dante line output adapter built on the Dante Ultimo 2x2 platform. It receives Dante digital audio over a standard IP network and converts it to two channels of balanced or unbalanced analog audio through a 6-pin phoenix connector — ideal for permanent installations feeding amplifiers, powered speakers, and legacy audio equipment.

Five discrete gain levels (+18dBu, +4dBu, 0dBu, 0dBV, -10dBV) cover every professional and consumer reference standard. Dual power options — PoE (802.3af Class 0) and USB-C (5V/500mA) — eliminate the need for external power supplies.

• Dante 2CH digital audio to two-channel balanced/unbalanced analog audio output
• Built on the Dante Ultimo 2x2 platform for full Dante ecosystem interoperability
• Supports 44.1/48/88.2/96kHz sampling rates at 24-bit resolution
• 5-level discrete gain adjustment (+18dBu, +4dBu, 0dBu, 0dBV, -10dBV)
• Balanced output: +18dBu max / Unbalanced: +12dBu max
• Studio-grade audio: >100dB S/N ratio, <0.01% THD+N
• Configurable Dante device latency: 1, 2, or 5ms
• Dual power: PoE (IEEE 802.3af Class 0) and USB-C (5V/500mA)
• 6-pin 3.5mm phoenix connector for permanent installation

Specification

• Technical
  • Input: Dante 2CH digital audio
  • Output: Two-channel balanced/unbalanced analog
  • Sampling: 44.1/48/88.2/96kHz @24bit
  • S/N Ratio: >100dB
  • THD+N: <0.01%
  • Gain: 5-level: +18dBu, +4dBu, 0dBu, 0dBV, -10dBV
  • Latency: 1/2/5ms configurable
  • Network: 100m CAT6
• Connection
  • Input: 1x DANTE RJ45 (PoE)
  • Output: 2x LINE OUT (phoenix)
  • Power: USB-C 5V/500mA
• Mechanical
  • Housing: Plastic enclosure
  • Operating Temperature: 0°C – 40°C
  • Storage Temperature: −20°C – 60°C
  • Operating Humidity: 20% – 80% RH (non-condensing)
  • Storage Humidity: 10% – 90% RH (non-condensing)
  • Dimensions (WxDxH): 4.53 x 1.58 x 1.1 inch (115 x 40 x 28mm)
  • Weight: 0.21 lbs (94g)

What's in the Box

• 1x Dante 2CH Line Output Adapter
• 1x 6-pin 3.5mm Phoenix Connector (male)
• 2x Hook & Loop
• 1x User Manual
