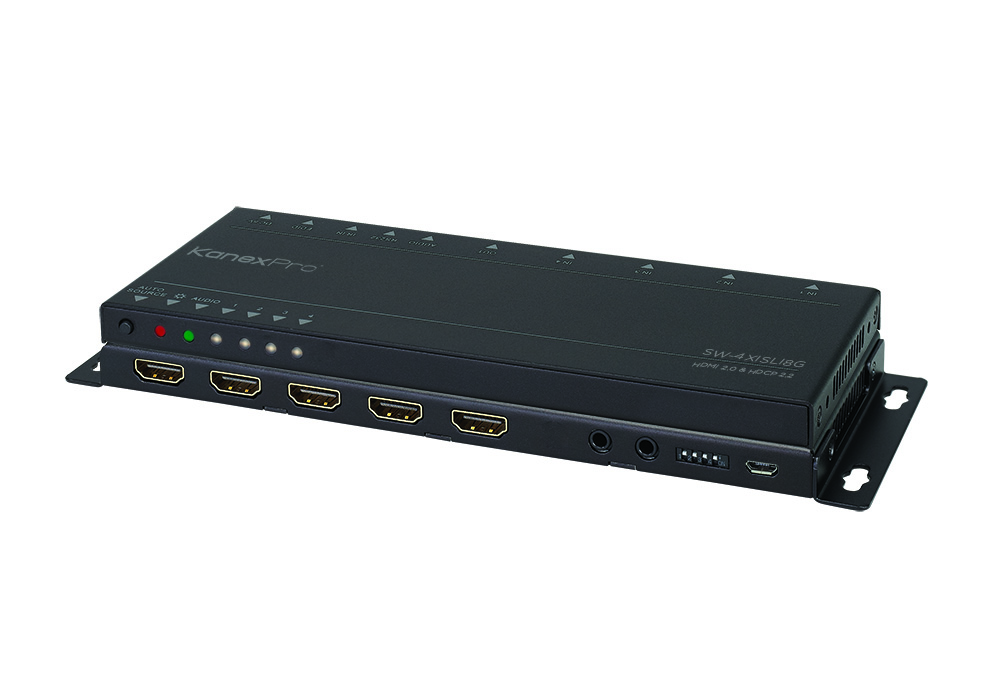

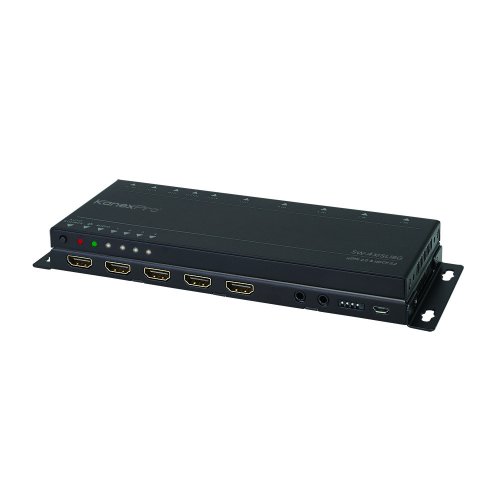

KanexPro UltraSlim 4K HDMI 4x1 Switcher

About: KanexPro UltraSlim 4K HDMI 4x1 Switcher

The KanexPro SW-4X1SL18G is an UltraSlim auto-switcher with 4–input and 1-output which auto-identifies input resolutions of up to four HDMI devices to one 4K display supporting full 4:4:4 YUV color space and 18 Gbps of bandwidth.This switcher can be controlled from the front panel, IR Remote, or by sending RS-232 commands, the corresponding indicator will illuminate to show real-time switching status. It can transmit uncompressed 4Kx2K@60Hz 4:4:4 (at max) signal and supports HDMI 2.0 and HDCP2.2 compliant.

Auto Switching with HDMI® ARC function

Each user can utilize their own HDMI cable and the system automatically “senses” when an input is attached and proceeds to distribute their input device live to the output display. As an added feature, it also provides ARC (Audio Return Channel).

Applications:

The SW-4X1SL18G is ideal for residential AV and corporate applications, such as under the conference room table. From here, you can run up to four HDMI cables to different points on the table, and then connect your devices (e.g. laptops, tablets, and phones). The switcher handles user signal switching and distribution.

Features

• UltraSlim 4x1 HDMI switcher w/ ARC
• Auto-switching enabled
• Supports 4K x 2K@60Hz
• Supports YUV 4:4:4 color space
• Incredibly thin design – only 0.4” (11 mm) thick
• High-bandwidth 18 Gbps
• HDCP 2.2 compliant
• Transmits 4K over HDMI cable up to 10m (32ft.)
• HDMI supports ARC (Audio Return Channel)
• Auto-identifies input resolutions to match displays via hot-plug
• Supports CEC to control source or display device via IR Remote & RS232 commands.
• Supports EDID management
• Micro USB port for firmware update
• Control via RS-232, IR & front panel buttons
• Remote control included

Specifications

Signal Inputs/Output

• Input DDC Signal: 5 volts p-p (TTL)
• Maximum Single Link Range: 4K x 2K@24, 30, 50, 60 Hz
• Output Video: HDMI 2.0 w/ full 3D & 4Kx2K@60Hz + HDCP 2.2
• CEC - Pass through enabled

Operating Frequency

• Vertical Frequency Range: 50/60Hz/30Hz
• Max Data Rate: 18 Gbps

Resolutions (HDTV)

• Interlaced (50&60Hz): 480i, 576i, and 1080i
• Progressive (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K@60Hz

Power Requirements

• External Power Supply: 5V DC@ 1A
• Power consumption (Max): 5W

Size: (L-W-H): 7.6" x 0.44" x  3.1" (194x11.4x80mm)

Weight: 0.35 lbs

Environment

• Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

Package Contents:

• 4x1 HDMI Switcher
• 5V power supply
• IR remote
• 3.5mm IR receiver
• Operation Manual
