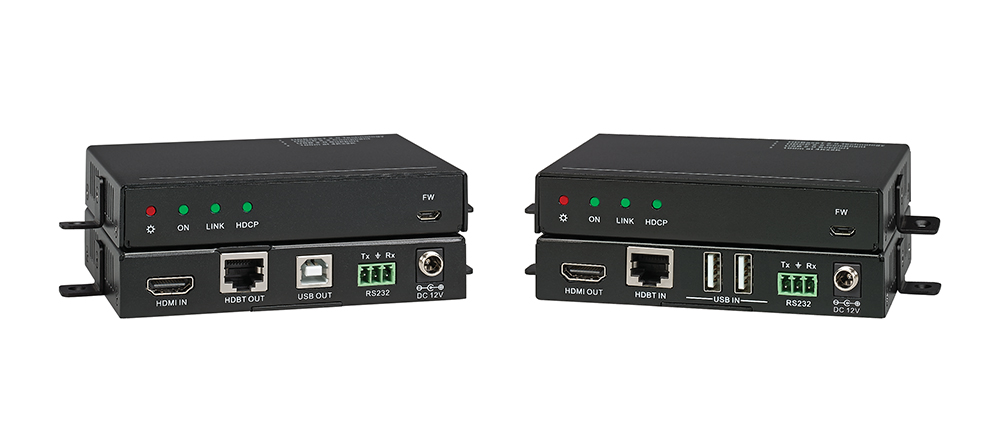

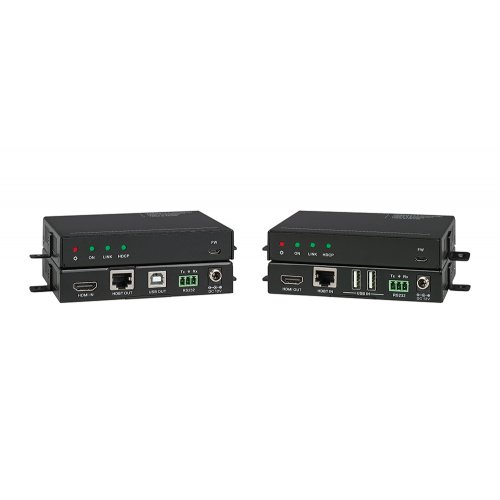

KanexPro 4K HDMI Extender over Cat6 w/ USB 2.0

Model: EXT-HDBTKVM100

KanexPro 4K HDMI Extender over Cat6 w/ USB 2.0
  • Free Shipping!
  •  Special Order: Contact us for Lead Time
  • Not yet reviewed




About: KanexPro 4K HDMI Extender over Cat6 w/ USB 2.0

The KanexPro EXT-HDBTKVM100 is an HDCP 2.2 compliant, 4K HDMI Extender set developed with the latest signal transmission technology to extend uncompressed HDMI video, audio, USB 2.0, control signals and PoC over a single CAT5e/6 cable. The PoH compliant extender comes with only one power supply, which means that, it can be powered from either Tx or Rx to save installers time and added cost to installing a power outlet.

Long-reach mode & USB 2.0

The HDMI extender runs on shielded CATx up to 100 meters providing full [email protected] or up to 150 meters providing full HD 1080p/60 or [email protected]  One USB type B port is added on the Transmitter for connecting to PC or USB peripherals and two USB 2.0 ports are provided on the receiver side to work like a KVM or USB based Touch Panel using USB HID to create remote USB data and video extension up to 492 feet (150 meters).

Applications:

USB for Conferencing in AV

Perfect for conference rooms and boardrooms where the extender offers two USB interfaces allowing SOFTCODEC systems to be used for video conferencing and for use with PTZ cameras.

Digital Signage with data diagnostics

Ideal for applications such as Digital Signage where high-resolution video, audio and USB KVM function and data diagnostics can be sent back to the computer from the QSR display or vice versa.

Features:

  • Extend USB 2.0, 4K UHD video and audio up to 100 meters
  • Driverless USB 2.0 for webcam video emulation and AEC speakerphone audio
  • USB 2.0 also supports touch-screen functionality and keyboard-video-mouse (KVM)
  • Bi-directional power via PoC from Tx to Rx or vice versa
  • Distribute [email protected] & 60Hz signals
  • Supports standard 1080p & WUXGA resolutions
  • HDCP 2.2 compliant
  • EDID Pass-thru
  • Built-in smart 100m - 150m switch for long-reach mode over CAT6
  • Supports latest High Speed HDMI 2.0 Specifications
  • Supports Dolby Digital, DTS, DTS-HD
  • Bi-directional control over RS-232
  • Front-panel LED’s provides real-time I/O connection status
  • Locking power supply
  • Removable mounting ear kits
  • Universal power supply for worldwide compatibility

UPC: 813982020580

Reviews: KanexPro 4K HDMI Extender over Cat6 w/ USB 2.0

There are currently no product reviews.


Warranty: KanexPro 4K HDMI Extender over Cat6 w/ USB 2.0

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

3 Year Limited Warranty
