KanexPro Dante 2-Channel Analog Line Input Adapter

About: KanexPro Dante 2-Channel Analog Line Input Adapter

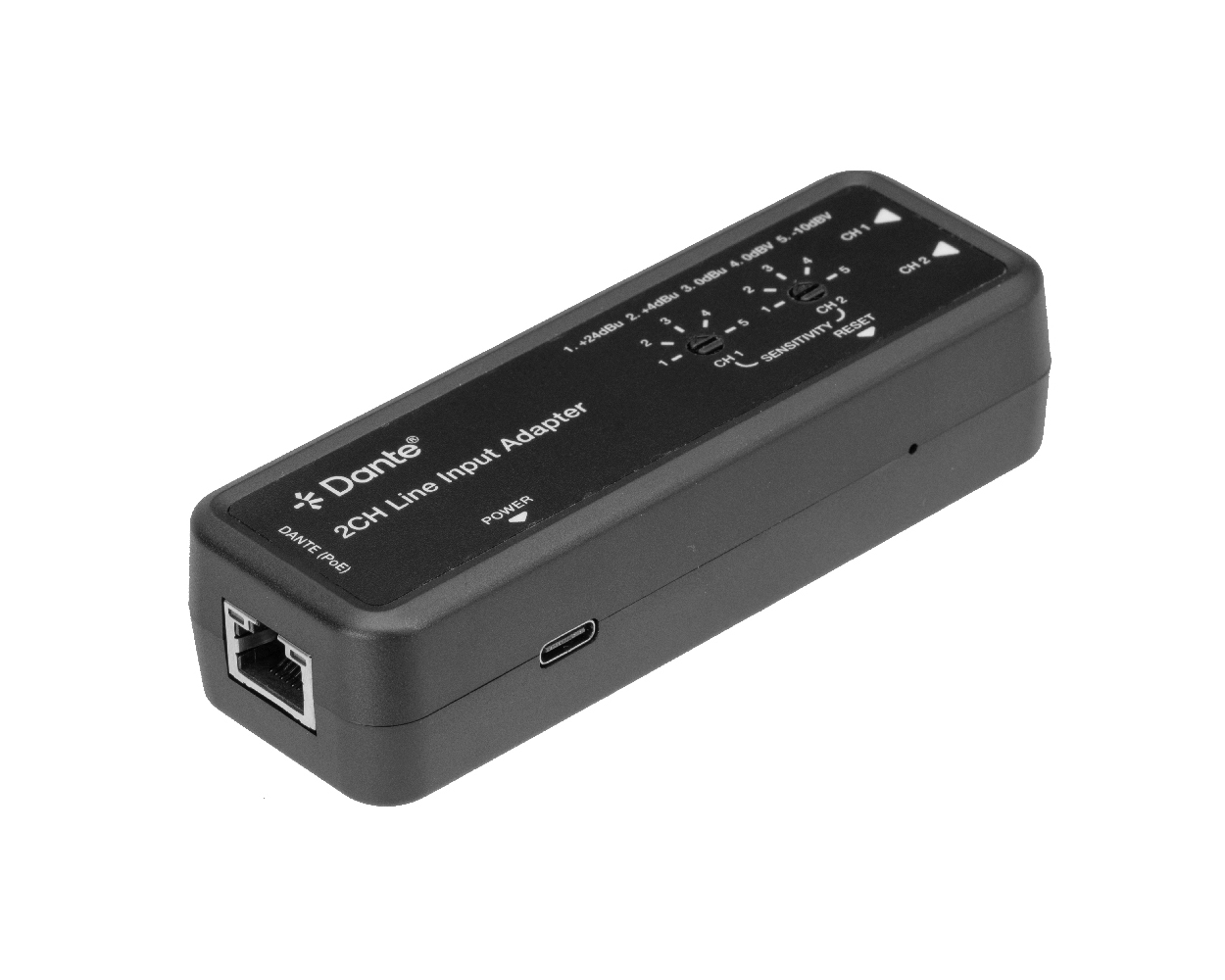

Bridges legacy analog audio sources into any Dante network with a compact, plug-and-play 2-channel line input adapter. The KanexPro AUD-DTE-LINEIN accepts balanced or unbalanced analog audio via a 6-pin phoenix connector and converts it to Dante digital audio at up to 96kHz/24-bit, delivering >100dB dynamic range and <0.01% THD+N for transparent signal quality.

Five-level per-channel sensitivity adjustment (+24dBu to −10dBv) accommodates everything from professional mixing consoles to consumer media players without external attenuators. Powered by PoE (IEEE 802.3af) or USB-C, the adapter installs anywhere on the network with a single CAT cable — no dedicated power run required. AES67 interoperability ensures compatibility across mixed-vendor Dante and AES67 systems.

• Converts 2-channel balanced/unbalanced analog audio to Dante digital audio via 6-pin 3.5mm phoenix connector
• Dante Ultimo 2×2 platform with sampling rates of 44.1, 48, 88.2, and 96kHz at 24-bit resolution
• 5-level per-channel sensitivity adjustment: +24dBu, +4dBu, 0dBu, 0dBV, −10dBV
• Signal performance: >100dB S/N ratio, >100dB dynamic range, <0.01% THD+N at +4dBu
• Configurable Dante audio delay: 1, 2, or 5ms via Dante Controller
• AES67 RTP audio transmission for cross-platform interoperability
• Dual power: PoE (IEEE 802.3af Class 0) or USB-C 5V — single-cable network installation
• Compact 115×40×28mm enclosure with hook-and-loop mounting for flexible placement

Specification

• Audio
  • Audio Input: 2CH balanced/unbalanced analog audio (6-pin 3.5mm phoenix connector)
  • Audio Output: Dante 2CH digital audio (RJ45 PoE)
  • Sampling Rate: 44.1 / 48 / 88.2 / 96kHz @24-bit
  • Sensitivity Levels: +24dBu, +4dBu, 0dBu, 0dBV, −10dBV (per channel)
  • Max Input Level (Balanced): +24dBu (12.28Vrms)
  • Max Input Level (Unbalanced): +18dBu (6.15Vrms)
  • Input Impedance (Balanced): 20kΩ
  • Input Impedance (Unbalanced): 10kΩ
  • Frequency Response: 20Hz–20kHz (±0.5dB)
  • S/N Ratio: >100dB @0dBu, 1kHz (A-weighted)
  • Dynamic Range: >100dB @0dBu, 1kHz (A-weighted)
  • THD+N: <0.01% @+4dBu, 1kHz
  • Audio Delay: 1 / 2 / 5ms (configurable via Dante Controller)
  • Output Sync Delay: <10ms
• Network
  • Protocol: Dante / AES67 RTP
  • Network: Bandwidth 100Mbps
  • Transmission Distance: 328ft / 100m (CAT6/6A/7)
  • ESD Protection: IEC 61000-4-2 ±8kV air / ±4kV contact
• Power
  • Power Input: USB-C 5V/500mA or PoE IEEE 802.3af Class 0
  • Power Consumption: 2W max
• Mechanical
  • Housing: Plastic enclosure
  • Operating Temperature: 0°C – 40°C
  • Storage Temperature: −20°C – 60°C
  • Operating Humidity: 20% – 80% RH (non-condensing)
  • Storage Humidity: 10% – 90% RH (non-condensing)
  • Dimensions (WxDxH): 4.53 x 1.58 x 1.1 inch (115 x 40 x 28mm)
  • Weight: 0.21 lbs (94g)

What's in the Box

• 1x Dante 2CH Line Input Adapter
• 1x 6-pin 3.5mm Phoenix Connector (male)
• 2x Hook & Loop
• 1x User Manual
