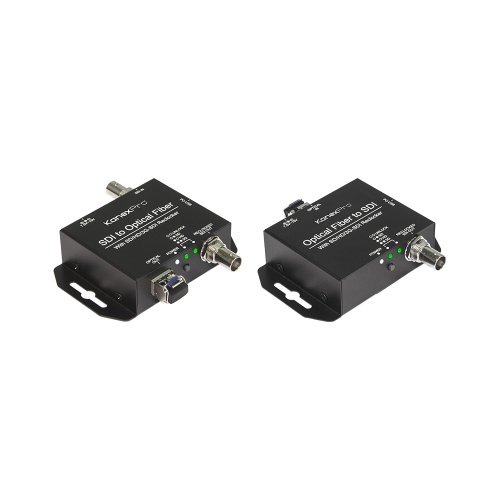

KanexPro Fiber Optic SDI Extender Set - 10KM
Model: SDI-EXTFIBERPRO
About: KanexPro Fiber Optic SDI Extender Set - 10KM
The KanexPro Fiber Optic SDI Extender is a simple extender designed for extending 3G-SDI & HD-SDI signals over fiber up to a distance of 6.2 miles (10 Kilometers). Supporting resolutions up to HD 1080p/60. The fiber extender uses pluggable and interchangeable fiber SFP design with LC connector.
Applications:
Ideally, fiber based transmissions are the most reliable and secure method of delivering digital HD video, audio, data over long-haul fiber optic cables mainly deployed in government, command and control systems and digital signage applications where security and high-resolution imagery is critical for day to operations without any signal downtime or degradation.
Features
- Convert and Extend SDI signals over Fiber LC
- Ideal for long haul transmissions
- Built-in signal equalizer & re-clock function
- Auto-sensing for 3G/HD/SD-SDI signals
- SDI Supported HD formats:
- 720p/50 & 60
- 1080i/50 & 60
- 1080p/24, 25, 30, 50 & 60
- SDI video formats: 525i & 625i SD D1
- Audio format support up to 8-channel@24 bit, 48KHz
- Mini –USB port for firmware update
- Compact & rugged housing
- Locking power supply & mounting ears
UPC: 813982020948
Reviews: KanexPro Fiber Optic SDI Extender Set - 10KM
Warranty: KanexPro Fiber Optic SDI Extender Set - 10KM
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
3 Year Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and KanexPro do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
