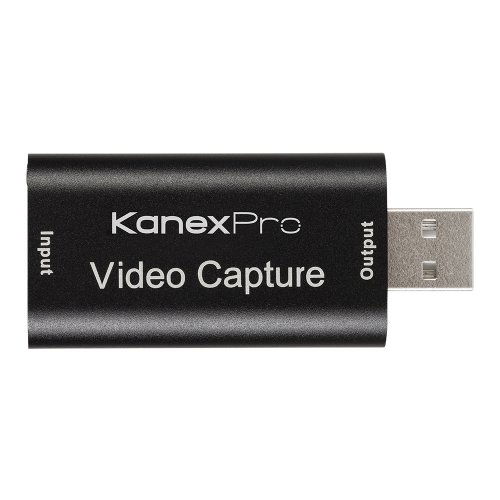

KanexPro HDMI 1080p USB 2.0 Gaming Capture Dongle

About: KanexPro HDMI 1080p USB 2.0 Gaming Capture Dongle

The KanexPro CON-GAMECAP is a video capture device that can capture both HDMI video and HDMI audio, sending audio and video signals to a computer in order to preview or record video content. Suitable for video game console capture, educational recordings, medical imaging, or streaming with the use of an action camera.

Capture High Definition Content in 1080p

Record in up to 1920x1080 resolution (1080p) at 30Hz with hardware up-scaling/down-scaling. The dongle will accept 4K/30Hz signals from a gaming console and will automatically down-scale the output video to 1080p/30 HD HDMI video signals.

Applications:

Best used for Console Gaming, educational streaming, PC gaming, and general recording.

• Console and Computer Gaming: Connect your next gen gaming system to a computer and record or stream your gaming sessions. Easily use a streaming service or recording application to capture and edit your content.
• Live Streaming: When connected to an Action camera featuring an HDMI output the dongle will make the camera operate like a webcam. Improve the quality of your stream by using a better-quality camera.
• Educational Distribution: Can be used to record student presentations, lectures, or virtual meetings.

Features:

• Supports input max resolution 3840×2160@30Hz;
• Supports output max resolution 1920×1080@30Hz;
• Supports 8/10/12bit deep color;
• Supported by most video acquisition software, such as VLC, OBS, Amcap, etc;
• Supported by Windows, MacOS
• Conforms to USB Video and UVC standards;
• Conforms to USB Audio UAC standards;
• Self Powered, external power not required

Specifications:

• HDMI resolution: Max input can be 3840×2160@30Hz
• Support video for: 8/10/12bit Deep color
• Video output format : YUV?JPEG
• Video output resolution: Max output can be 1920×1080@30Hz
• Support audio format: L-PCM
• Input cable distance: ≤ 15m, AWG26 HDMI High Speed cable
• Max working current: 0.4A/5VDC
• Operating Temperature range: (-10 to +55?)
• Dimension (L x W x H): 64x28x13 (mm)
• Weight: 21.4g
