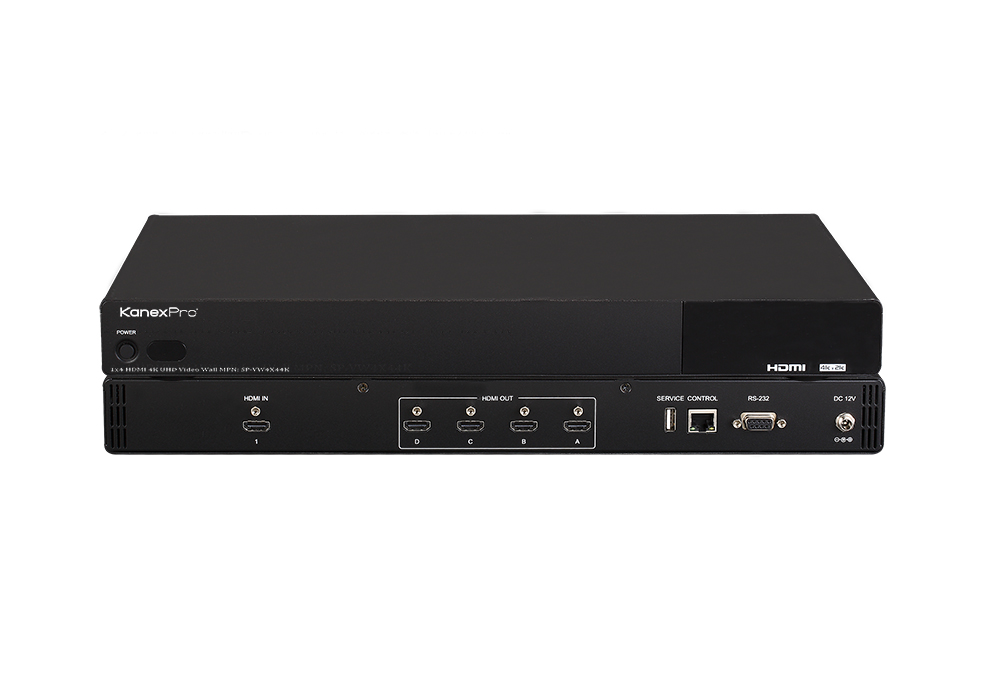

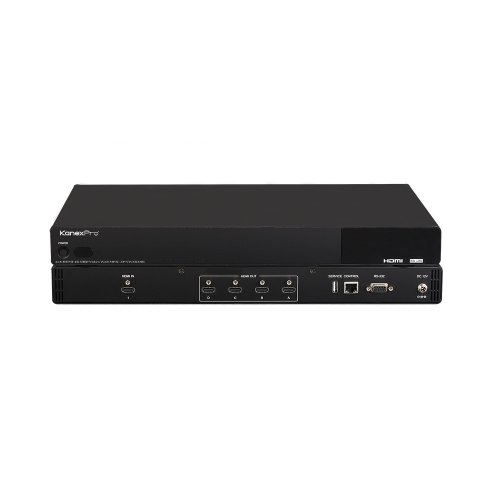

KanexPro 1x4 HDMI 4K UHD Video Wall Processor
Model: VW-SP1X44K
About: KanexPro 1x4 HDMI 4K UHD Video Wall Processor
The KanexPro VW-SP-1X44K is a 4K based video processor which allows one HDMI input to be freely arranged on to four 4K displays. It offers bezel correction support with a simple and easy to use control application. The device supports video output timings up to WUXGA@60 and 1080p@60Hz, audio format up to 7.1CH LPCM at 192kHz sampling rate based on input source EDID.
Easy to Control from Anywhere

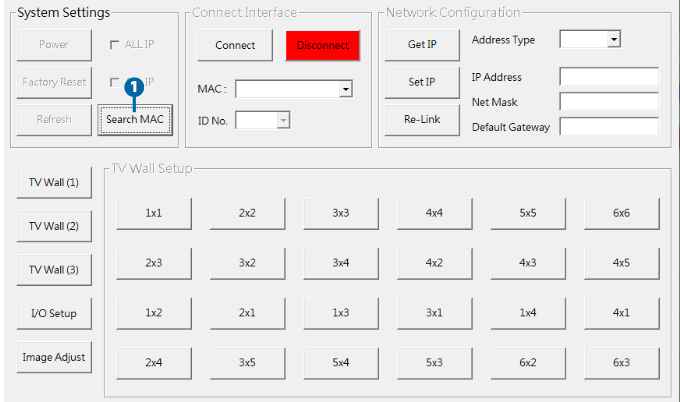

The video processor can be controlled from anywhere using a tablet or any other 3rd party control system using RS-232 and Telnet.
Applications:
Ideal for digital signage markets, large scale presentations, hyper market displays and command and control applications where high resolution video wall is needed.
Features
- 1x4 Video Processor with Built-in Bezel Correction and Control
- Can be cascaded to create up to 3x3 Video Wall (9- displays)
- Can also be used as a 1x4 DA (splitter)
- Supports 4K x 2K@24/25/30Hz
- HDCP compliant
- Outputs video signal to 4 displays with a full image & adjustable Bezel Correction
- Input PC resolutions: from VGA~WUXGA & HDTV from 480i~1080p & 4K2K@24/25/30Hz
- Various Audio Format Support: AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmos and DTS-HD Master Audio
- Control via RS-232 & Telnet (Ethernet)
- One locking power supply included
- 1U (19”) rack mountable enclosure
- Backed by KanexPro 3-year parts and labor warranty
