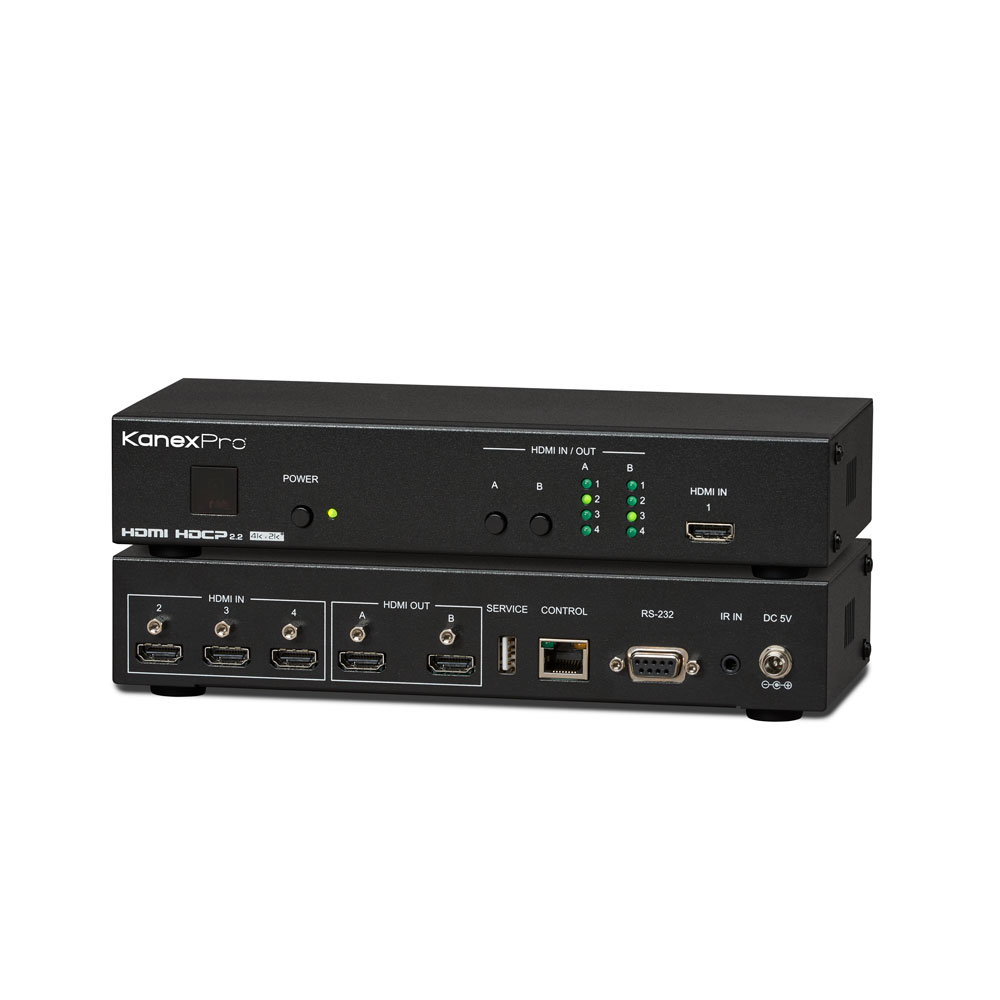

KanexPro 4x2 HDMI 4K/60 Matrix Switcher

About: KanexPro 4x2 HDMI 4K/60 Matrix Switcher

The KanexPro HDMX42-18G  is an easy to use, cost-effective 4K/60Hz with 4:4:4, 16-bit Deep Color, HDR (High Dynamic Range) and HD audio formats based on HDMI 2.0 specs. Designed with 4-inputs and 2-outputs. For swift switching and routing of any HDMI sources such as laptops, Blu-ray players, and 4K based Apple TV to any four displays. This matrix switcher is HDCP 2.2 compliant and supports 4K@60Hz, 4:2:0 video. it can be controlled via front panel buttons, IR remote and RS232 commands.

EDID Management & Control

Includes five pre-defined internal EDIDs and two external EDID options are available for EDID management. The unit provides intuitive front panel controls as well as RS-232, Telnet, WebGUI and IR remote control options.

Applications:

Ideal for classrooms, corporate offices, retail stores and home theaters where there is a need to route four HDMI sources to two 4K/60 displays.

Features

• Switch 4 HDMI devices to 2 Displays with 4K/60 + HDR & 4:4:4
• Supports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps HDMI outputs
• Supports resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)
• HDMI 2.0 and DVI 1.0 compliant
• HDCP 1.4 and 2.2 compliant
• Maximum data rate up to 18Gbps with Deep Color support up to 16-bit at 1080p
• Supports pass-through of LPCM 7.1, Bit stream and HD Bit stream audio formats
• Supports EDID management via five pre-defined internal EDIDs and two external EDID options
• Multiple control interfaces including RS-232, Telnet, WebGUI and IR remote
• Backed by KanexPro 3-year parts and labor warranty

Specifications

• Video Bandwidth: 600MHz/18Gbps
• Input Ports: 4 × HDMI
• Output Ports: 2 × HDMI
• Control Interfaces: 1 × IR Extender (3.5mm) 1×RS-232 (9-pin D-sub) 1×IP Control (RJ45)
• Supported Resolutions: 480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB)
• HDMI Cable Length: 10m (1080p@60Hz, 12-bit), 3m (4K@60Hz, 4:4:4, 8-bit)
• IR Frequency: 30 - 50kHz (30 - 60kHz under ideal conditions)
• Baud Rate: 115200bps
• Power Supply: 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
• ESD Protection: Human Body Model: ±12kV (Air Discharge), ±8kV (Contact Discharge)
• Dimensions: 9.4" x 1.8" x 4.4" (W×H×D)
• Weight: (1.75 lbs) 796g
• Chassis Material: Metal
• Silkscreen Color: Black
• Operating Temperature: 0°C - 40°C/32°F - 104°F
• Storage Temperature: −20°C - 60°C/−4°F - 140F
• Relative Humidity: 20 - 90% RH (Non-condensing)
• Power Consumption: 7.106W
