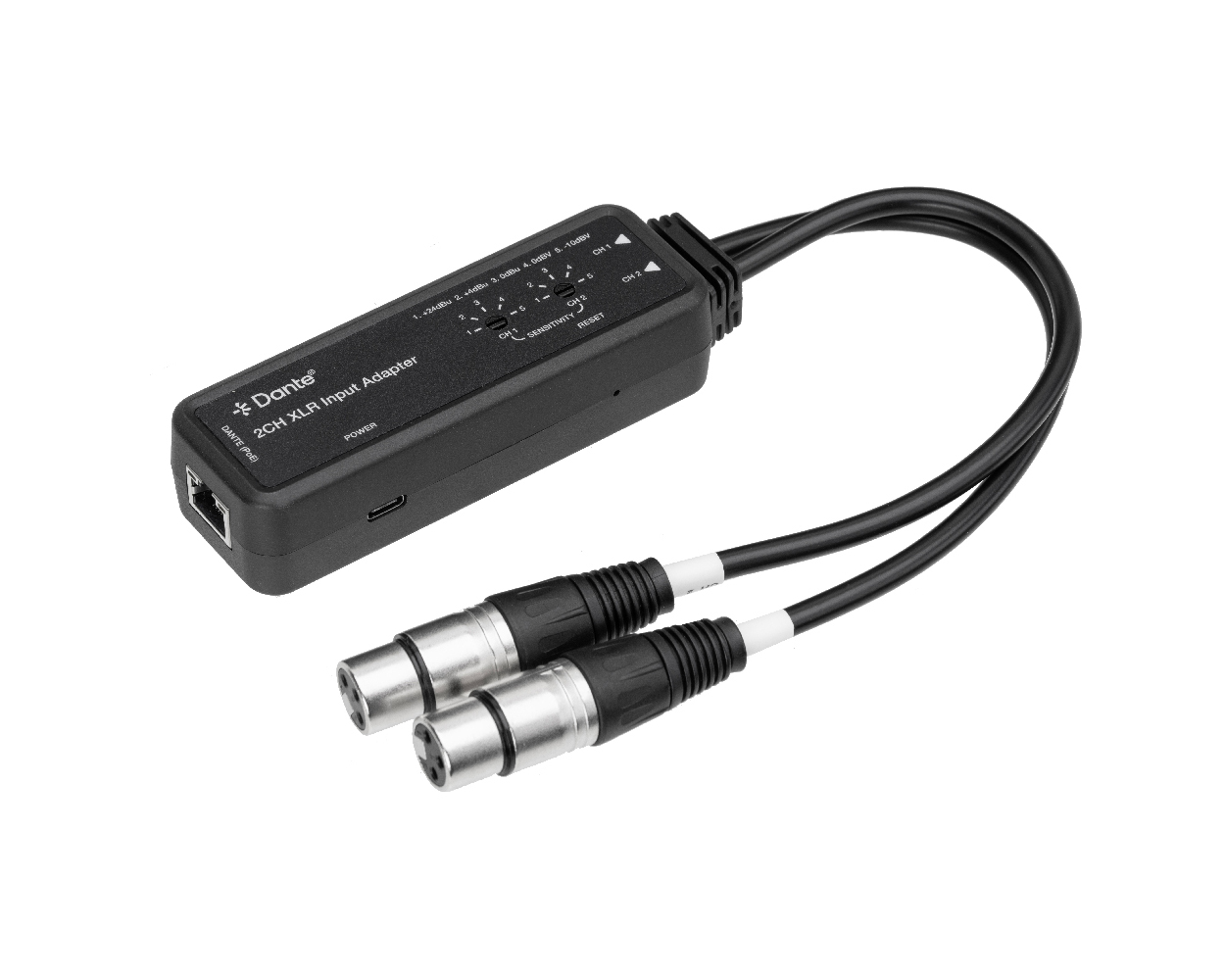

KanexPro Dante 2-Channel XLR Input Adapter

About: KanexPro Dante 2-Channel XLR Input Adapter

The KanexPro AUD-DTE-XLRIN converts two-channel balanced or unbalanced XLR analog audio into Dante digital audio for professional AV and networked sound environments. Built on the Dante Ultimo 2x2 platform, it accepts microphones, mixers, and pro-audio line sources directly via integrated 30cm XLR pigtail leads, eliminating the need for a separate stagebox or rack-mount interface.

Five selectable input sensitivity levels (+24dBu to -10dBv) deliver precise gain staging at the source. Powered by PoE (802.3af Class 0) or USB-C, it installs anywhere on the network with minimal cabling. Configurable latency (1, 2, or 5ms) and AES67 compatibility ensure integration into any professional Dante ecosystem.

• Converts 2-channel balanced/unbalanced XLR analog audio to Dante 2CH digital audio
• Five input sensitivity levels: +24dBu, +4dBu, 0dBu, 0dBv, -10dBv — per-channel adjustment
• Dante audio sampling up to 96kHz at 24-bit; AES67 compatible
• Configurable Dante device latency: 1, 2, or 5ms via Dante Controller
• Integrated 30cm XLR pigtail leads (CH1 + CH2) — direct mic/line connection, no adapter required
• Dual power: PoE IEEE 802.3af Class 0 or USB-C 5V/500mA
• High-performance audio: SNR >100dB, THD+N <0.01% at +4dBu/1kHz, 20Hz–20kHz ±0.5dB

Specification​

• Input: 2x XLR IN (balanced/unbalanced, 30cm pigtail); 1x USB-C (power/firmware)
• Output: 1x Dante RJ45 (PoE)
• Audio Format: Out PCM 2CH, 44.1/48/88.2/96kHz @ 16/24-bit
• Input Sensitivity: +24dBu / +4dBu / 0dBu / 0dBv / -10dBv (5-level, per channel)
• Input Impedance: 20kO balanced / 10kO unbalanced
• Latency: 1 / 2 / 5ms configurable
• SNR / THD+N: >100dB / <0.01% @ +4dBu, 1kHz
• Frequency Response: 20Hz–20kHz ±0.5dB
• Transmission: Up to 100m / 328ft (CAT6/6A/7)
• Power: USB-C 5V/500mA or PoE IEEE 802.3af Class 0 | 2W max
• Housing: Plastic enclosure, Black
• Operating Temperature: 0°C – 40°C
• Storage Temperature: −20°C – 60°C
• Operating Humidity: 20% – 80% RH (non-condensing)
• Storage Humidity: 10% – 90% RH (non-condensing)
• Dimensions (WxDxH): 4.53 x 1.58 x 1.1 inch (115 x 40 x 28mm)
• Weight: 0.38 lbs (172g)

What's in the Box

• 1x Dante 2CH XLR Input Adapter
• 2x Hook & Loop
• 1x User Manual
