KanexPro Dante 2-Channel XLR Output Adapter

About: KanexPro Dante 2-Channel XLR Output Adapter

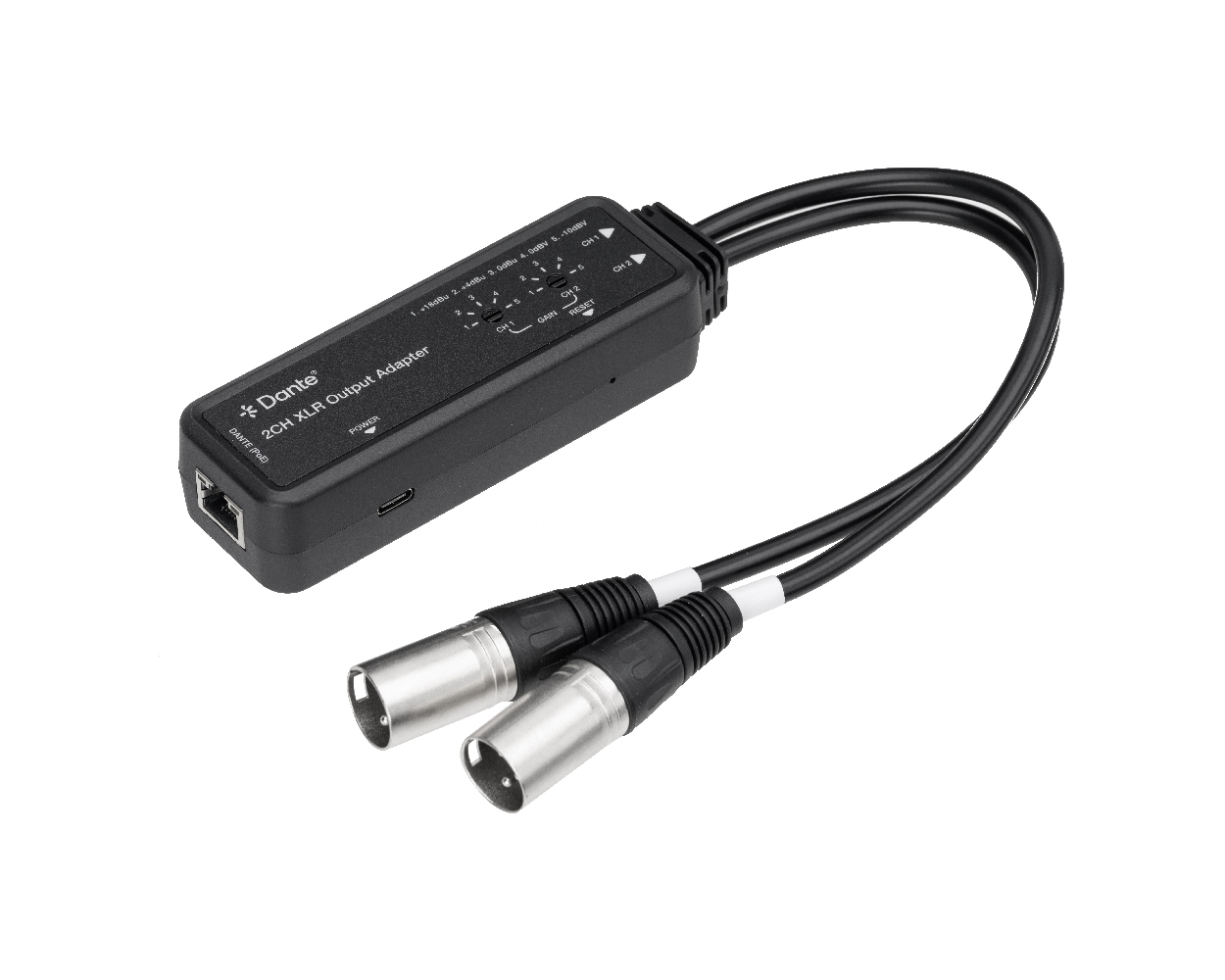

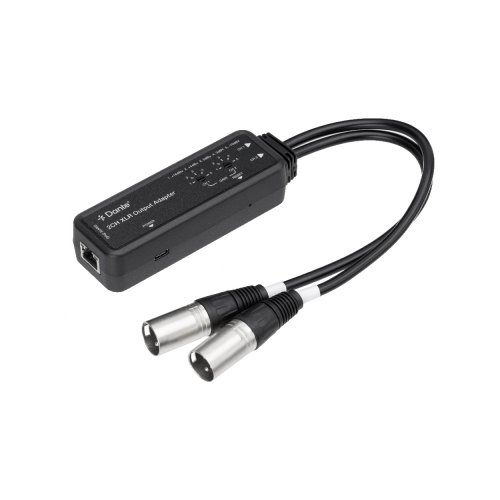

The KanexPro AUD-DTE-XLROUT converts Dante 2CH digital audio into two-channel balanced or unbalanced XLR analog audio for professional AV and installed sound environments. Built on the Dante Ultimo 2x2 platform, it delivers network audio directly to amplifiers, mixers, speakers, and legacy analog gear via integrated 30cm XLR male pigtail leads.

Five selectable output gain levels (+18dBu to -10dBv) provide per-channel level matching at the destination. Powered by PoE (802.3af Class 0) or USB-C, it deploys anywhere without external power supplies.

• Converts Dante 2CH digital audio to two-channel balanced/unbalanced XLR analog output
• Five output gain levels: +18dBu, +4dBu, 0dBu, 0dBv, -10dBv — per-channel adjustment
• Dante audio sampling up to 96kHz at 24-bit; AES67 compatible
• Configurable Dante device latency: 1, 2, or 5ms via Dante Controller
• Integrated 30cm XLR male pigtail leads (CH1 + CH2) — direct connection to amp/console
• Dual power: PoE IEEE 802.3af Class 0 or USB-C 5V/500mA
• High-performance audio: SNR >100dB, THD+N <0.01%, 20Hz–20kHz ±0.5dB

Specification​​

• Input: 1x Dante RJ45 (PoE); 1x USB-C (power only)
• Output: 2x XLR OUT (balanced/unbalanced, 30cm male pigtail); max +18dBu balanced
• Output Gain: +18dBu / +4dBu / 0dBu / 0dBv / -10dBv (5-level, per channel)
• Output Impedance: 600O balanced / 300O unbalanced
• Latency: 1 / 2 / 5ms configurable
• SNR / THD+N: >100dB / <0.01% @ +4dBu, 1kHz
• Frequency Response: 20Hz–20kHz ±0.5dB
• Transmission: Up to 100m / 328ft (CAT6/6A/7)
• Power: USB-C 5V/500mA or PoE IEEE 802.3af Class 0 | 1.25W max
• Housing: Plastic enclosure, Black
• Operating Temperature: 0°C – 40°C
• Storage Temperature: −20°C – 60°C
• Operating Humidity: 20% – 80% RH (non-condensing)
• Storage Humidity: 10% – 90% RH (non-condensing)
• Dimensions (WxDxH): 4.53 x 1.58 x 1.1 inch (115 x 40 x 28mm)
• Weight: 0.38 lbs (173g)

What's in the Box

• 1x Dante 2CH XLR Output Adapter
• 2x Hook & Loop
• 1x User Manual
