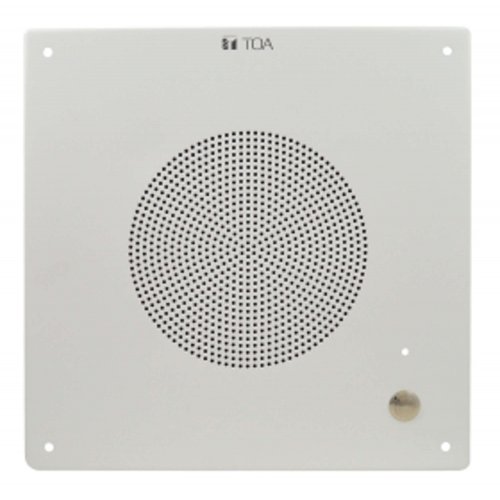

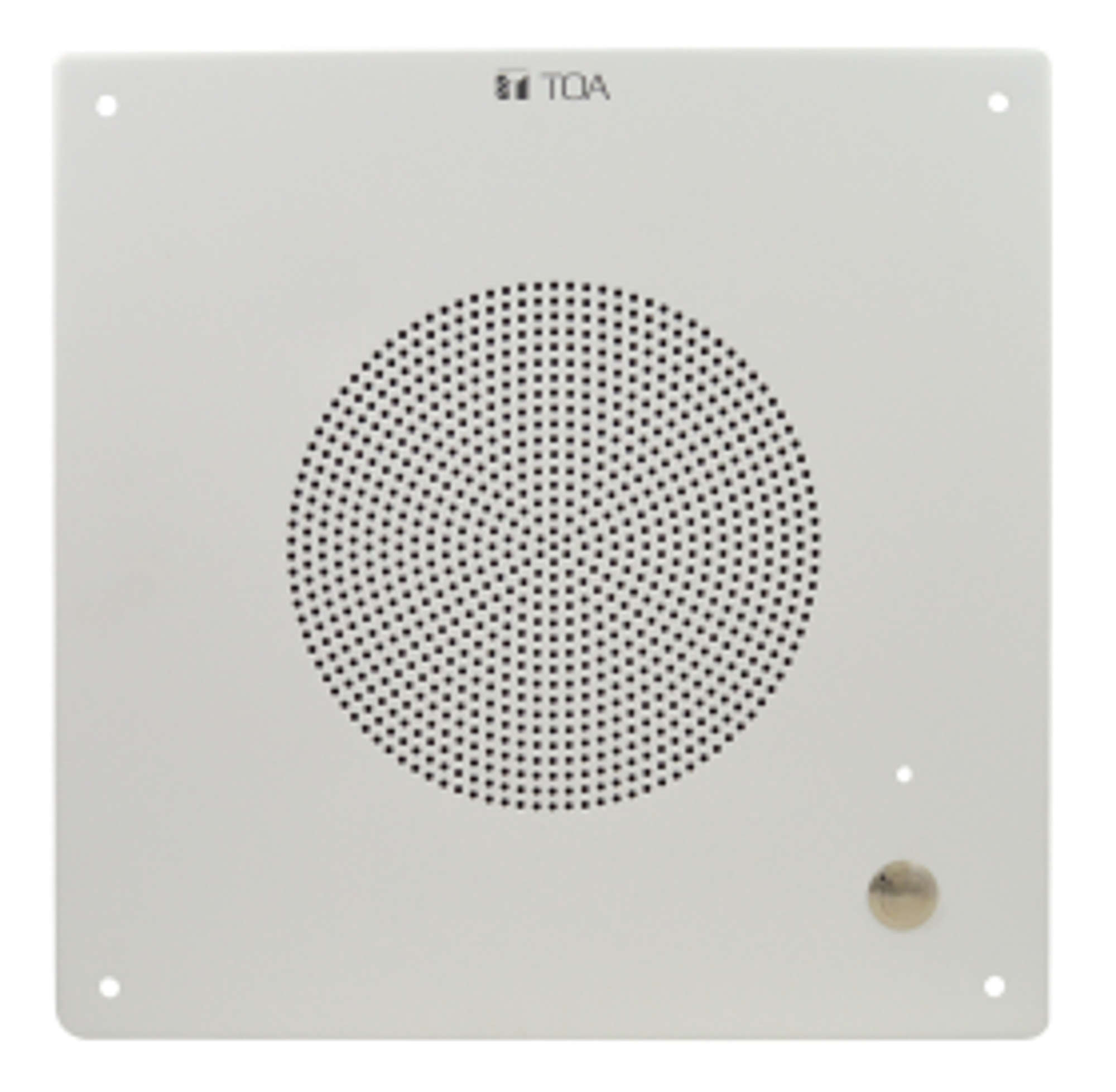

TOA Canada PC-580SBT 10W 8" Square Ceiling Paging Speaker w/ Call Button
Model: PC-580SBT
About: TOA Canada PC-580SBT 10W 8" Square Ceiling Paging Speaker w/ Call Button
TOA’s PC-580SBT is designed to work with N-8000 IP Intercom System as a station call button and speaker.
- 8” square in-wall speaker for intercom applications (requires RS series station board: RS-142, RS-442, N-8640SB, etc.)
- Push-button for calling master station
- Unique “monocoque” design provides better structural integrity
- Hole drilled in baffle for mounting of microphone (supplied separately)
- Optional Q-BB-580S or Q-BB-580W back-box
Specifications
- Rated Input - 5W ( 70.7 V line and 25 V line)
- Rated Impedance - 70.7 V line: 1 kΩ (5 W), 2 kΩ (2.5 W), 5 kΩ (1 W), 8.3 kΩ (0.6 W), 16.6 kΩ (0.3 W) 25 V line: 125 Ω (5 W), 250 Ω (2.5 W), 625 Ω (1 W), 1 kΩ (0.6 W), 2 kΩ (0.3 W)
- Sensitivity (1W, 1m) - 97 dB ( 1 W, 1 m)
- Frequency Response - 50 Hz - 16.5 kHz
- Speaker Component - 200 mm ( 8") Dual cone-type
- Mounting Hole - ø228.6±3 mm ( 9" ±0.12")
- Speaker Mounting Method - Mounting screw M5 X 38
- Connected Cable - Solid wire: ø0.8 - ø1.6 (AWG 20-12)
- Connection - Push wire connection ( Bridging terminal-2 branch type)
- Operating Temperature - -10 ·c to +50 ·c (14 'F to 122 'F)
- Finish - Panel: Steel plate, white, paint Grille: Steel plate, white
- Dimensions - 318 X 318 X 87 (D) mm (12.52" X 12.52" X 3.43")
- Weight - 2 kg (4.4 lbs)
- Optional Accessories - Flush mount back box: Q-BB-580S Surface mount back box: Q-BB-580W
