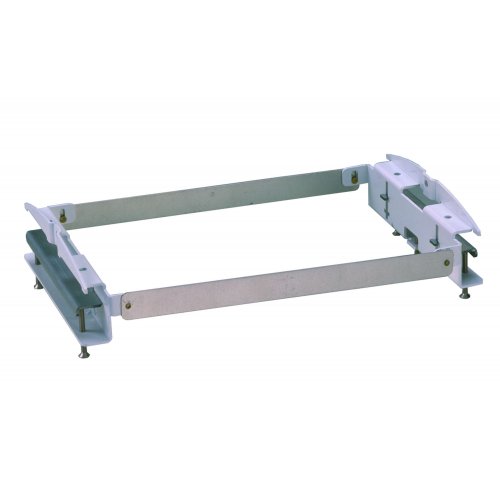

TOA Canada SP-420 Wall/Ceiling Mounting Bracket for BS-1030
Model: SP-420
About: TOA Canada SP-420 Wall/Ceiling Mounting Bracket for BS-1030

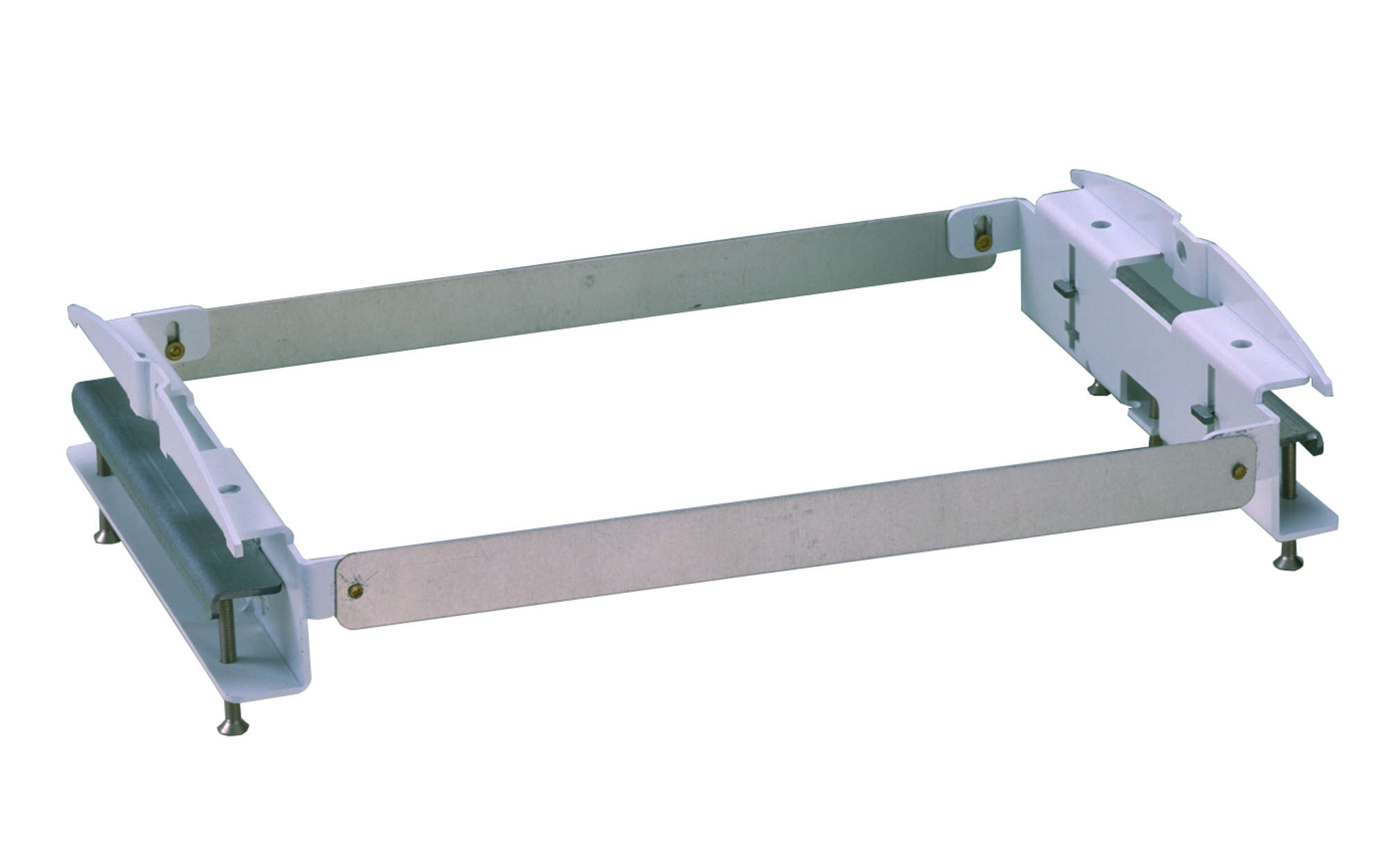

The SP-420 is a bracket designed to exclusively mount the BS-1030W and BS-1030B Universal Speaker in a wall or ceiling. The bracket can be easily mounted to the surface made of the plaster board or plywood. Make a 175 x 260 mm hole (tolerance: ±3 mm) in the wall or ceiling before mounting.
- Designed to exclusively mount the BS-1030W and BS-1030B in a wall or ceiling
- Can be easily mounted to the sueface made of the plaster board or plywood
- Finish: Base bracket: Surface treated steel plate, white paint / Shaft and Mounting clip: Nickel plated rolled steel plate
Specifications
- Board Thickness Requirement
- 5 - 24 mm
- Finish
- Base bracket: Surface treated steel plate, 2.0 mm in thickness, white, paint
- Shaft: Nickel-plated rolled steel plate, 0.5 mm in thickness
- Mounting clip: Nickel-plated rolled steel plate, 2.0 mm in thickness
- Included Accessories
- 2x Mounting clip screw
- 2x Plain washer for mounting clip
- 2x Speaker fixing screw
- 2x Speaker fixing plain washer
- 6x Base frame fixing butterfly bolt (installed in the base frame)
Reviews: TOA Canada SP-420 Wall/Ceiling Mounting Bracket for BS-1030
Warranty: TOA Canada SP-420 Wall/Ceiling Mounting Bracket for BS-1030
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and TOA Canada do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
