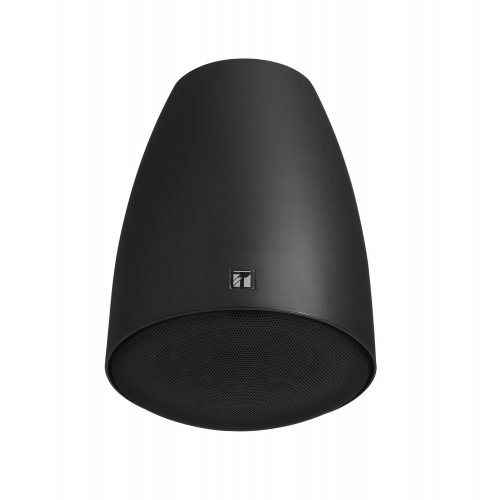

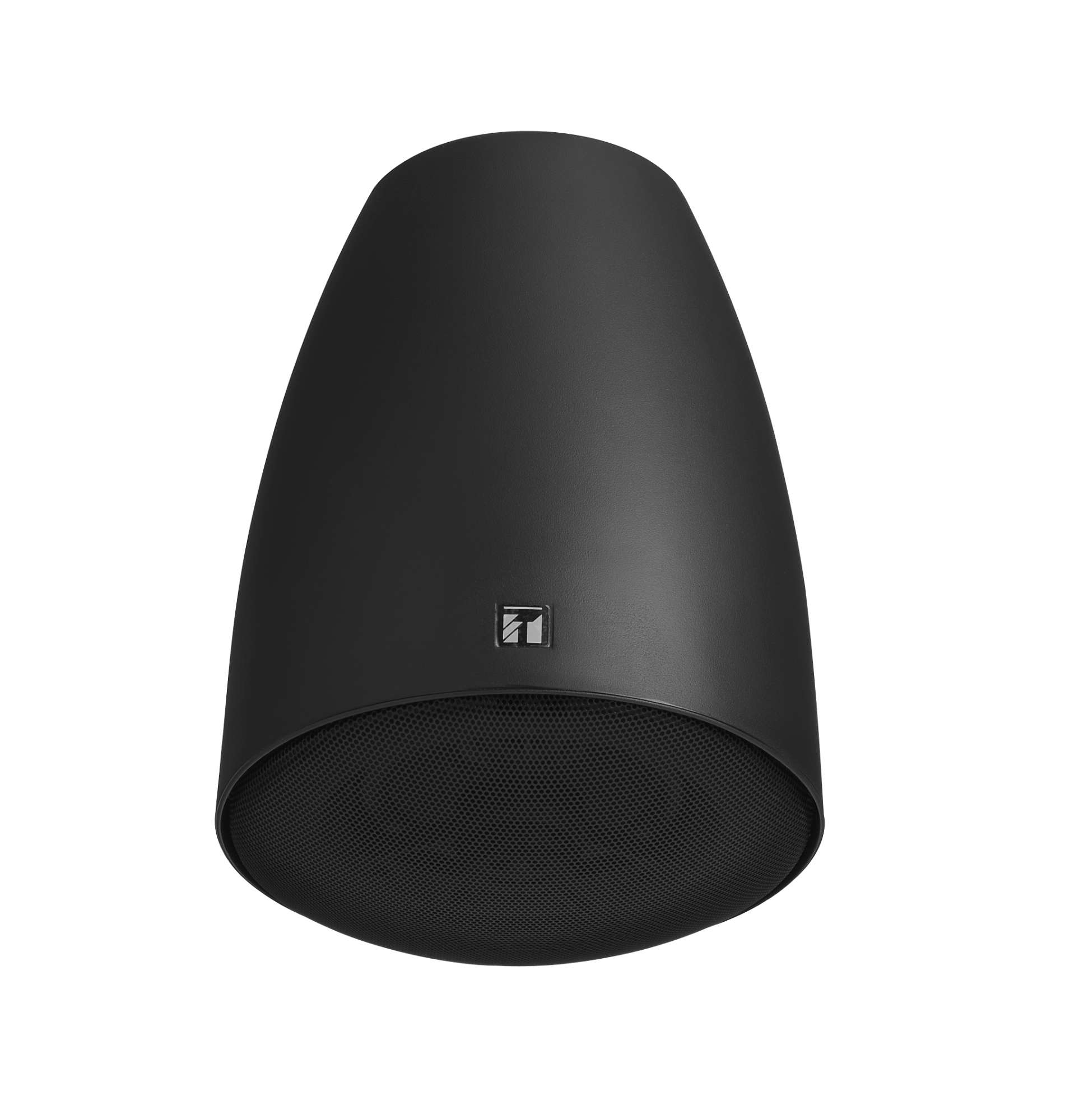

TOA Canada PE-304U Pendant Speaker (UL Certified) - Black

About: TOA Canada PE-304U Pendant Speaker (UL Certified) - Black

The PE-304BU is a pendant speaker designed for the installations suspended from a ceiling. A directly-attached 5 m (16.4 ft) hanging wire allows the speaker to be suspended from high ceilings. The PE-304BU is driven on both high-impedance (100 V, 70 V and 25 V) and low-impedance (8 Ω) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The PE-304BU is certified to UL 1480 UUMW and ULC-S541 standards. Using the supplied GRIPPLE(R) hangers will facilitate the speaker mounting height adjustment.

• Stylish design inspired by modern lighting fixtures
• Ideally suited for BGM & announcements
• 8 Ω and 25 V/70 V/100 V operation
• Input impedance is easily changed with a rotary switch on the top of the speaker
• With speaker cable, GRIPPLE hanging wire & safety wire pre-attached, for faster, easier and more secure installation
• UL certified: UL Code: UL1480 UUMW, ULC-S541
• Bass-refelx type

Specifications

• Enclosure - Bass-reflex type
• Rated Input - 30 W (100 V, 70 V line, 8 Ω), 3.7 W (25 V line)
• Rated Impedance
  • 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1.3 W)
  • 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.6 W)
  • 25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.1 W)
  • Low impedance: 8 Ω
• Sensitivity - 90 dB (1 W, 1 m) (330 Hz - 3.3 kHz, pink noise)
• Frequency Response - 95 Hz - 20 kHz (-10 dB)
• Speaker Component - 12 cm (5) cone-type + balanced dome-tweeter (coaxial)
• Compliance/Certifications - UL 1480 UUMW, ULC-S541
• Operating Temperature - -10 ℃ to +50 ℃ (14 ℉ to 122 ℉)
• Finish
  • Enclosure: ABS resin, black
  • Grille: Surface-treated steel plate mesh, black, paint
• Dimensions - Φ186 x 275 (H) mm (Φ7.32 x 10.83") (unit only)
• Weight - 2 kg (4.41 lb) (unit only)
• Included Accessories
  • 1x GRIPPLE No. 1* (preinstalled on the safety wire)
  • 1x GRIPPLE No. 2* (preinstalled on the hanging wire)
  • 1x Release key (for GRIPPLE*)
    • *GRIPPLE are hangers for suspending the speaker
  • 1x Safety wire (5 m or 16.4 ft, ø1.5 mm or 0.06")
  • 1x Hanging wire (5 m or 16.4 ft, ø2 mm or 0.08")
  • 1x Speaker cable (4-core FPL listed cable 4.6 m or 15.09 ft)
