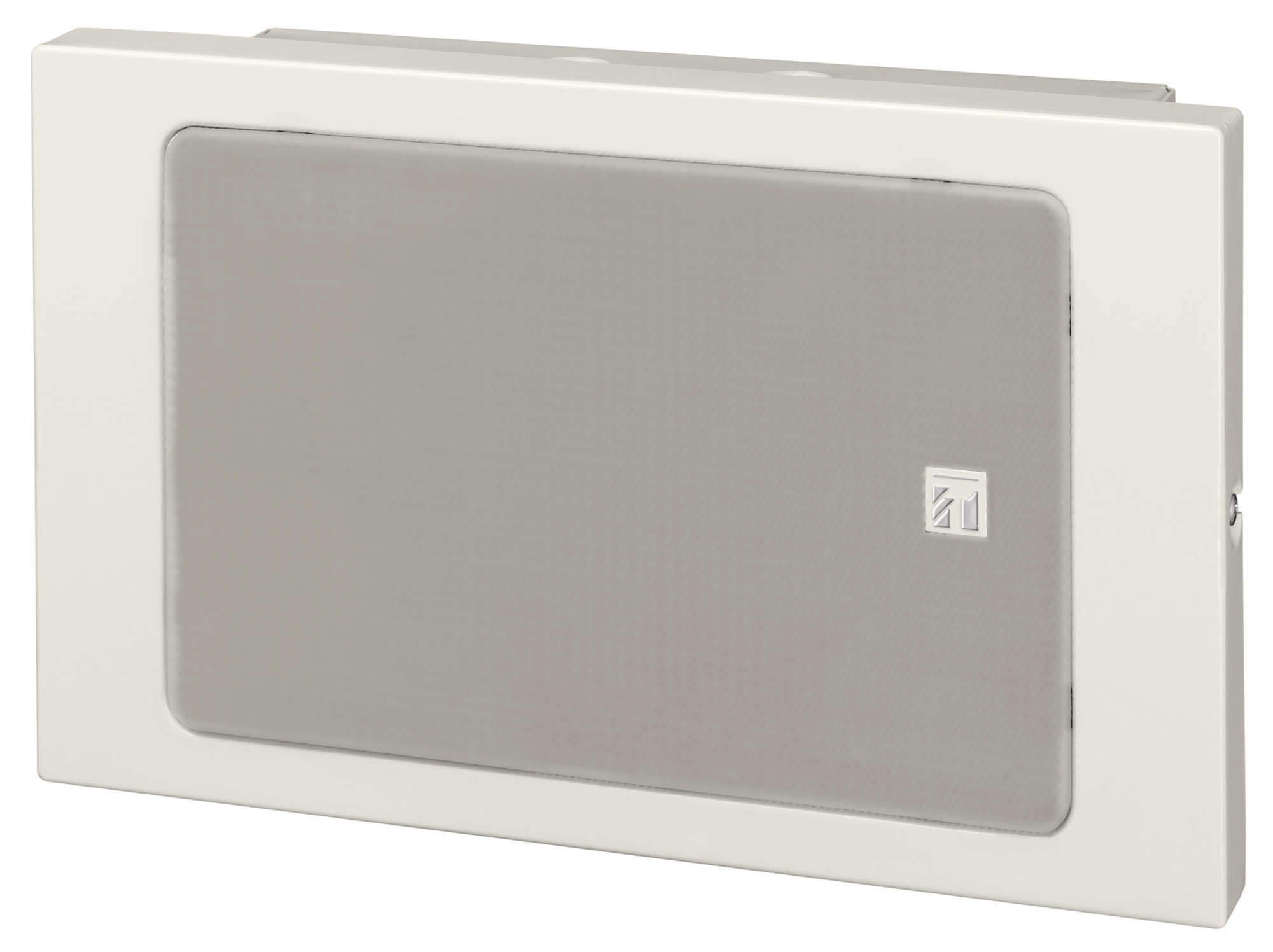

TOA Canada BS-680U Wall Mount Speaker (UL Certified)

About: TOA Canada BS-680U Wall Mount Speaker (UL Certified)

Constructed with metal cabinet, the speaker is ideal for use in a voice alarm system. Can be surface- or flush- mounted to the wall. Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection. The speaker structure of direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to. The input impedance can be easily changed by changing the tap position of the transformer. The built-in 16 cm double cone speaker unit delivers high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring. The BS-680U is certified to UL 1480 UUMW and ULC-S541 standards, and for indoor use only.

• Innovative design based on the Golden Ratio (1:1.618)
• Certified to function as a Fire Alarm Signaling Speaker
• UL 1480 UUMW and ULC-S541 listed.
• Quick and easy installation
• Strong all-metal body
• Horizontal / vertical installation
• Flush- / Surface-mounting

Specifications

• Rated Input - 6 W
• Rated Impedance
  • 70 V line: 830 Ω (6 W), 1.67 kΩ (3 W), 5 kΩ (1 W)
  • 25 V line: 105 Ω (6 W), 210 Ω (3 W), 650 Ω (1 W)
• Sensitivity - 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
• Frequency Response - 150 Hz - 20 kHz (peak -20 dB)
• Speaker Component - 16 cm (6") double cone-type
• Cable Requirements
  • Solid copper wire: Ø0.8 - Ø2.0 mm (AWG 20 - 12)
  • Stranded copper wire: 0.5 - 2.0 mm² (AWG 20 - 14)
• Connection - Push-in connector (bridging terminal)
• Compliance/Certifications - UL 1480 UUMW, ULC-S541
• Operating Temperature - -10 °C to +50 °C (14 °F to 122 °F)
• Finish
  • Baffle, Cabinet: Steel plate, white (RAL 9010 equivalent), powder coating
  • Grille: Surface-treated steel plate mesh, white (RAL 9010 equivalent), paint
• Dimensions - 310 (W) x 190 (H) x 90 (D) mm (12.2" x 7.48" x 3.54")
• Weight - 2.6 kg (5.73 lb)
• Included Accessories
  • 2x Rubber grommet
  • 4x Speaker mounting screw (4 x 16)
  • 1x Sponge tape (1 sheet, 2 pieces)
