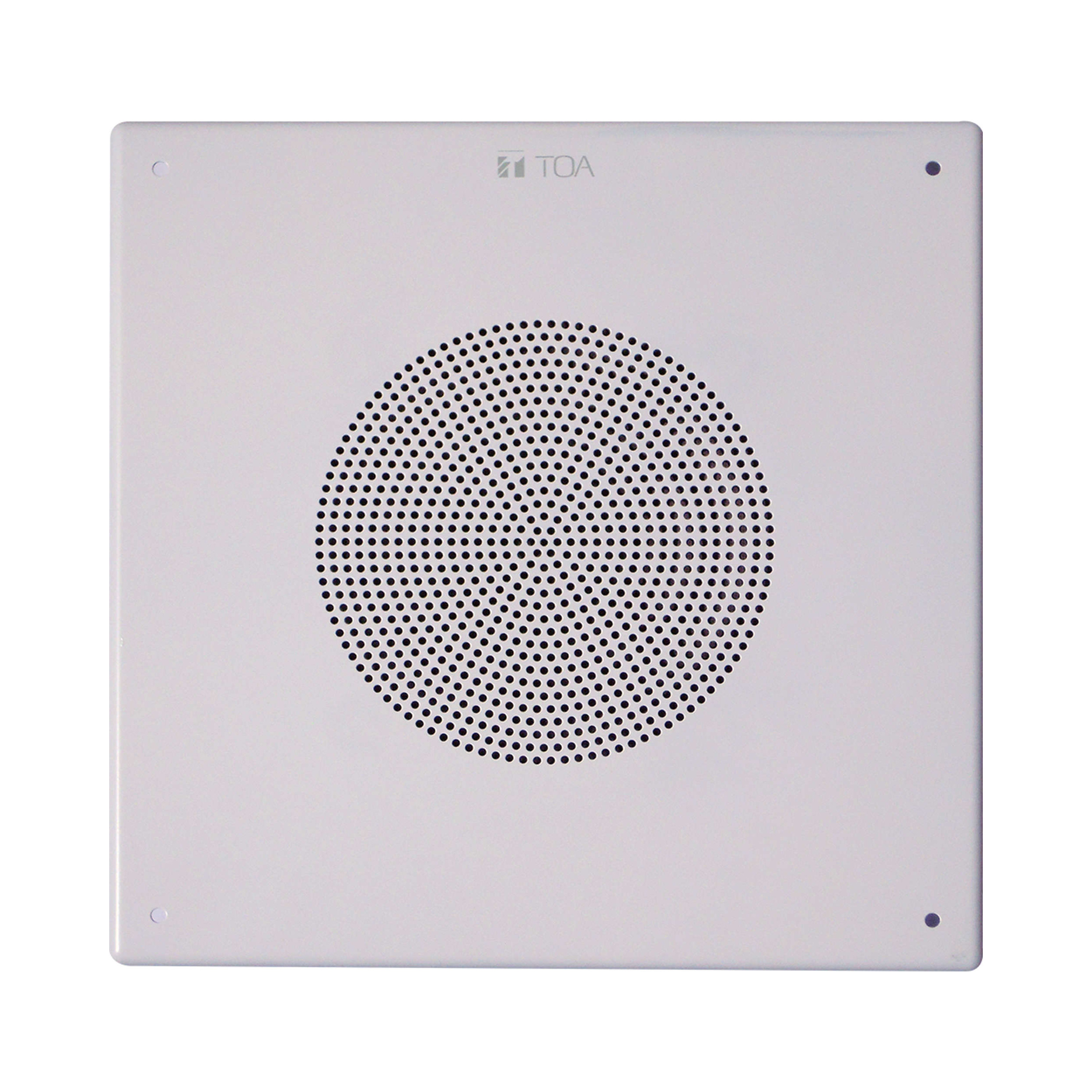

TOA Canada PC-580S 10W 8" Square Ceiling Paging Speaker
Model: PC-580S
About: TOA Canada PC-580S 10W 8" Square Ceiling Paging Speaker
TOA’s PC-580S is designed to fill the need for a high-performance, cost effective ceiling speaker for use in general paging and back ground music requirements. The PC-580S can easily be installed into retrofit projects.
- 8” in-ceiling speaker for high-quality paging applications
- Cost effective design
- 25V & 70V transformer taps up to 5W
- Fits standard ceiling-speaker template
- Unique “monocoque” design provides better structural integrity
- Optional Q-BB-580S or Q-BB-580W back-box
Specifications
- Rated Input - 5W ( 70.7 V line and 25 V line)
- Rated Impedance - 70.7 V line: 1 kΩ (5 W), 2 kΩ (2.5 W), 5 kΩ (1 W), 8.3 kΩ (0.6 W), 16.6 kΩ (0.3 W) 25 V line: 125 Ω (5 W), 250 Ω (2.5 W), 625 Ω (1 W), 1 kΩ (0.6 W), 2 kΩ (0.3 W)
- Sensitivity (1W, 1m) - 97 dB ( 1 W, 1 m)
- Frequency Response - 50 Hz - 16.5 kHz
- Speaker Component - 200 mm ( 8") Dual cone-type
- Mounting Hole - ø228.6±3 mm ( 9" ±0.12")
- Speaker Mounting Method - Mounting screw M5 X 38
- Connected Cable - Solid wire: ø0.8 - ø1.6 (AWG 20-12)
- Connection - Push wire connection ( Bridging terminal-2 branch type)
- Operating Temperature - -10 ·c to +50 ·c (14 'F to 122 'F)
- Finish - Panel: Steel plate, white, paint Grille: Steel plate, white
- Dimensions - 318 X 318 X 87 (D) mm (12.52" X 12.52" X 3.43")
- Weight - 1.90 kg (4.19 lbs)
- Optional Accessories - Flush mount back box: Q-BB-580S Surface mount back box: Q-BB-580W
Reviews: TOA Canada PC-580S 10W 8" Square Ceiling Paging Speaker
Warranty: TOA Canada PC-580S 10W 8" Square Ceiling Paging Speaker
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and TOA Canada do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
