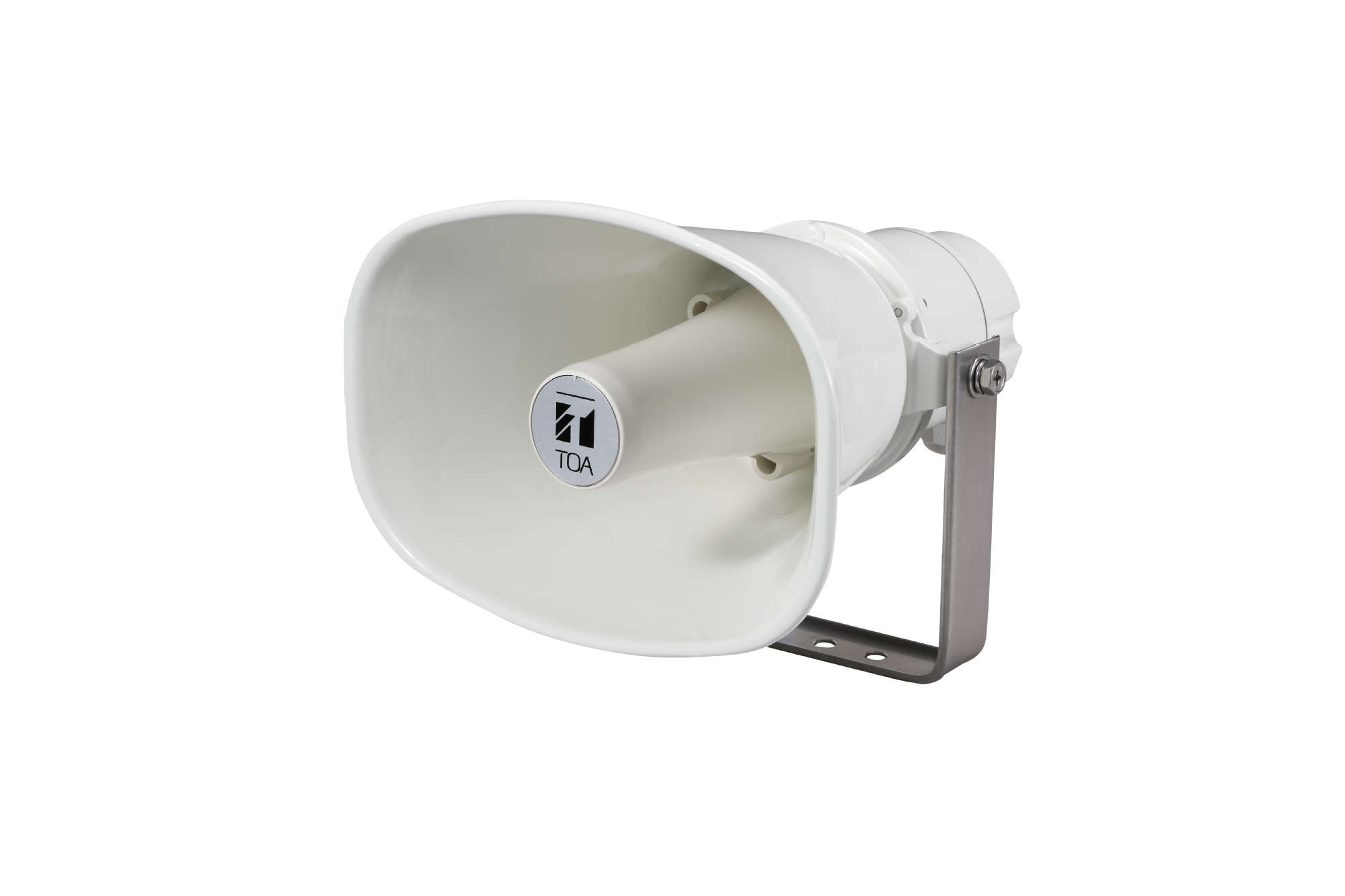

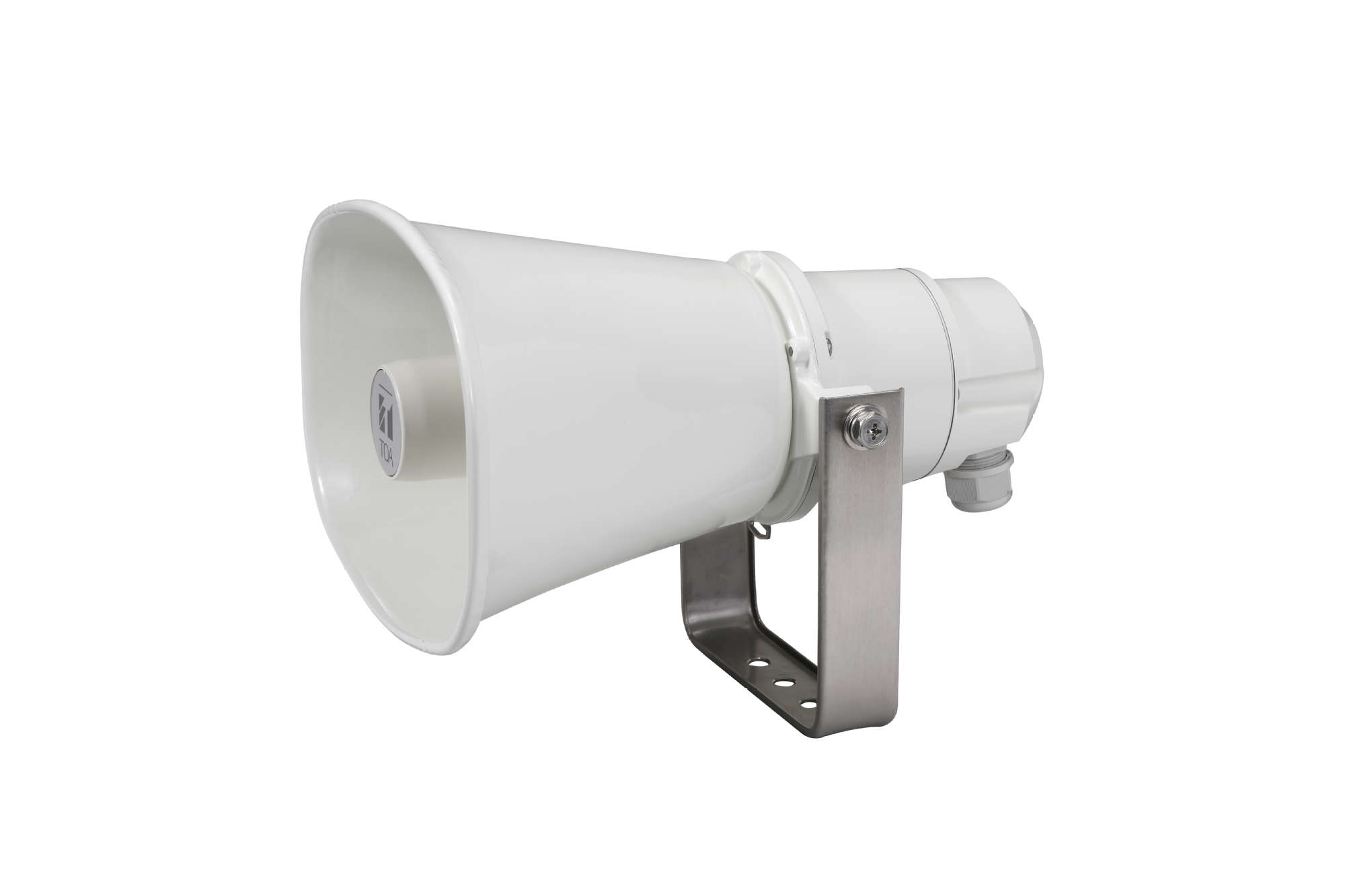

TOA Canada IP-A1SC15 IP Horn Speaker

About: TOA Canada IP-A1SC15 IP Horn Speaker

The IP-A1SC15 is an IP paging horn speaker to deliver clear announcements via network with 124 dB output capability powered by PoE+ power source. Its rugged enclosure is IP66 rated for outdoor environments. The IP-A1SC15 supports common network protocols for easy integrations with Video Management Systems and other SIP-compatible VoIP systems and devices. Group paging function is available with 20 Multicast ports for zone paging requirements. Internal sound source file storage allows storing pre-recorded messages or tones which can be played back by 2 control inputs or Remote API (HTTP).

• 124dB (PoE+ powered) with IP66 rating for outdoor installations
• Receive SIP audio, ONVIF Audio and Multicast
• Local broadcast using internal audio files
• 8W (PoE)/15W(PoE+) built-in amplifier, 1 LINE audio output
• 2 control inputs and 1 control output
• HTTP commands (receive)
• Audio file storage (20 files, total 80MB, WAV/MP3)
• Playback programs (Repeat, Weekly Timer)
• PoE/PoE+ powered

Specifications

• Power Source - PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3)
• Power Consumption
  • 22 W (at PoE+ powered, rated output)
  • 12.95 W (at PoE powered, rated output)
  • 5 W (IEC62368-1)
• Amplifier Rated Output - 15 W (at PoE+ powered), 8 W (at PoE powered)
• Sensitivity - 112 dB (1 W, 1 m) (500 Hz to 2.5 kHz, peak level)
• Maximum Sound Pressure Level
  • 124 dB (at PoE+ powered, 15 W, 1 m) (500 Hz to 2.5 kHz, peak level)
  • 121 dB (at PoE powered, 8 W, 1 m) (500 Hz to 2.5 kHz, peak level)
• Frequency Response - 280 Hz to 12.5 kHz
• Audio Codec - Opus, PCMU (G.711u), PCMA (G.711a), G.722
• Broadcasting Mode
  • SIP Broadcasting Mode: Opus/PCMU/PCMA/G.722
  • Multicast Broadcasting Mode: Opus/PCMU/PCMA/G.722 Auto codec recognition, 20 ports
  • VMS Broadcasting Mode: PCMU
  • Internal Message Broadcasting Mode
    • Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.
• Sound Source Files
  • Max. 20 files (File storage capacity: 80 MB total)
  • Supported file formats
    • WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
    • MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
    • Repeat playback: Playcount(1-10 times), Duration (5-3600 sec) or Timer (from Start time to End time)
    • Interval time: 0 - 99 sec, Delay time: 0 - 99 sec
    • Trigger: Control Input or Remote API (HTTP)
• Network I/F - 100BASE-TX, MDI/MDI-X, RJ-45
• Network Protocol - TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)
• Control Input - 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (3 pins)
• Control Output - 1 channel, open collector output, withstand voltage: 30 V DC, control current: 50 mA or less, removable terminal block (3 pins)
• Indicator - LAN LINK/ACT (green), STATUS (orange)
• Clock Accuracy - ±13 seconds per month
• Time Adjustment - Manual time setting, Time adjustment by NTP server
• Power Outage Protection Period - 24 hours (RTC time retention, at 40 °C (104 °F)
• Dust/Water Protection - IP66
• Operating Temperature - –30 °C to +55 °C (–22 °F to +131 °F)
• Operating Humidity - 90 %RH or less (no condensation)
• Finish
  • Horn flare and body: Aluminum, off-white (RAL 9010 equivalent), paint
  • Reflector horn: ABS resin, off-white (RAL 9010 equivalent)
  • Rear cover: PC resin, off-white (RAL 9010 equivalent), paint
  • Bracket, screws and bolts: Stainless steel
• Dimensions - 222 (W) x 211 (H) x 276 (D) mm (8.74" x 8.31" x 10.87")
• Weight - 1.4 kg (3.09 lb)
• Included Accessories
  • 1x Rear cover
  • 2x Removable terminal plug (3 pins)
• Optional Accessories
  • Speaker mount bracket: SP-131, SP-201, SP-301
  • Pole band: YS-60B
