JBL AC599 15in Two-Way Passive Loudspeaker w/90° x 90° Horn (Each)
Model: AC599
About: JBL AC599 15in Two-Way Passive Loudspeaker w/90° x 90° Horn (Each)

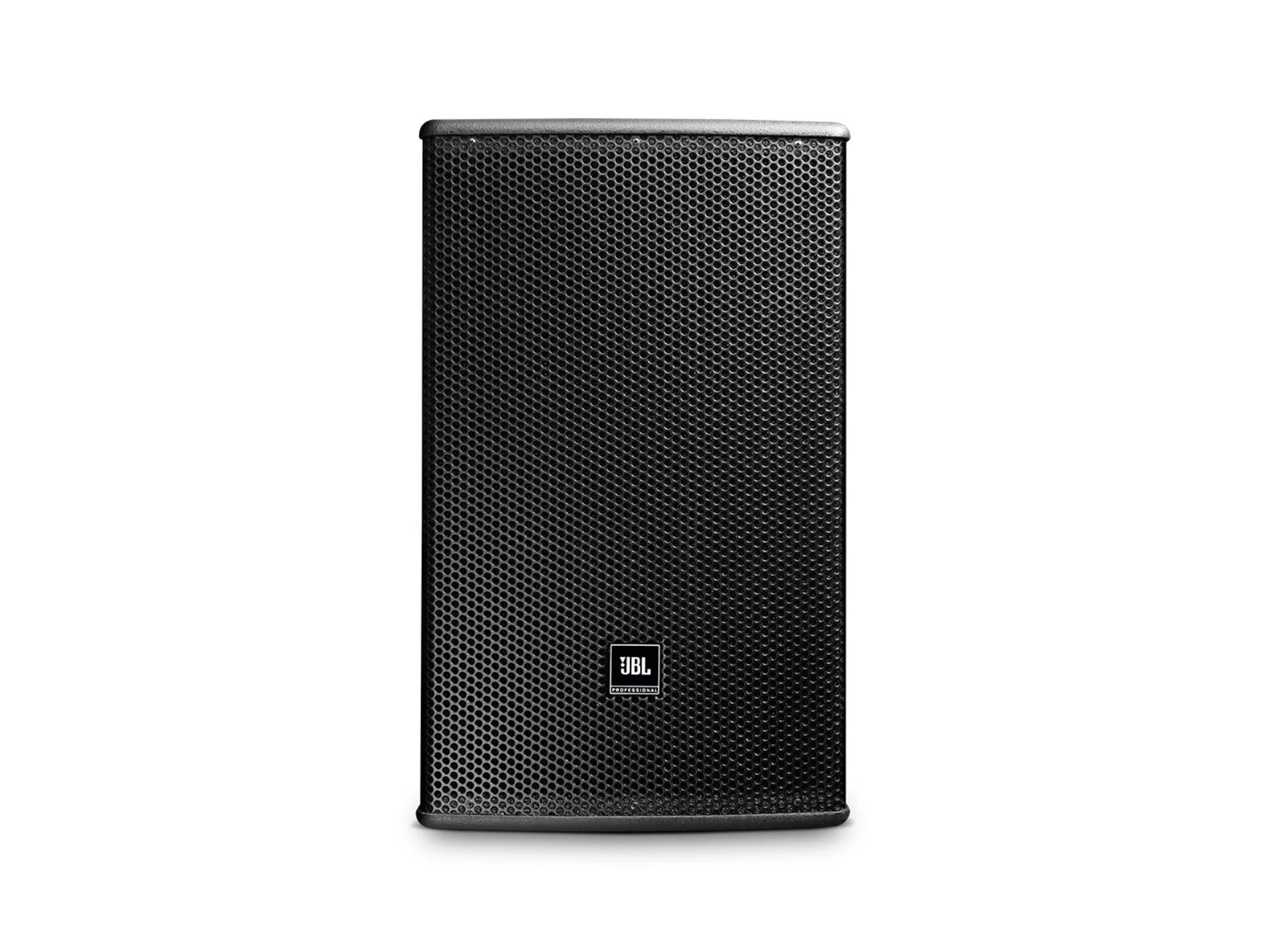

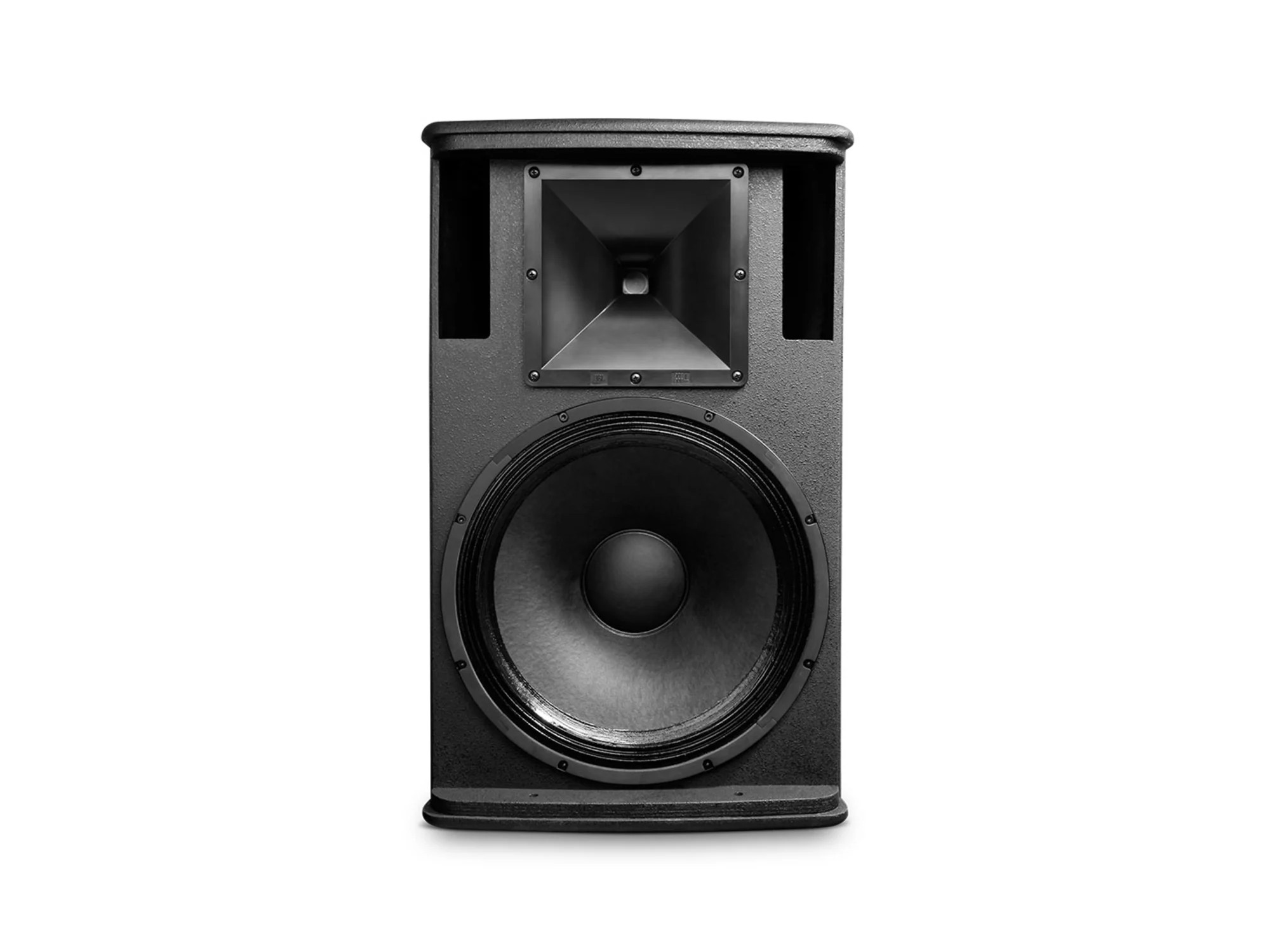

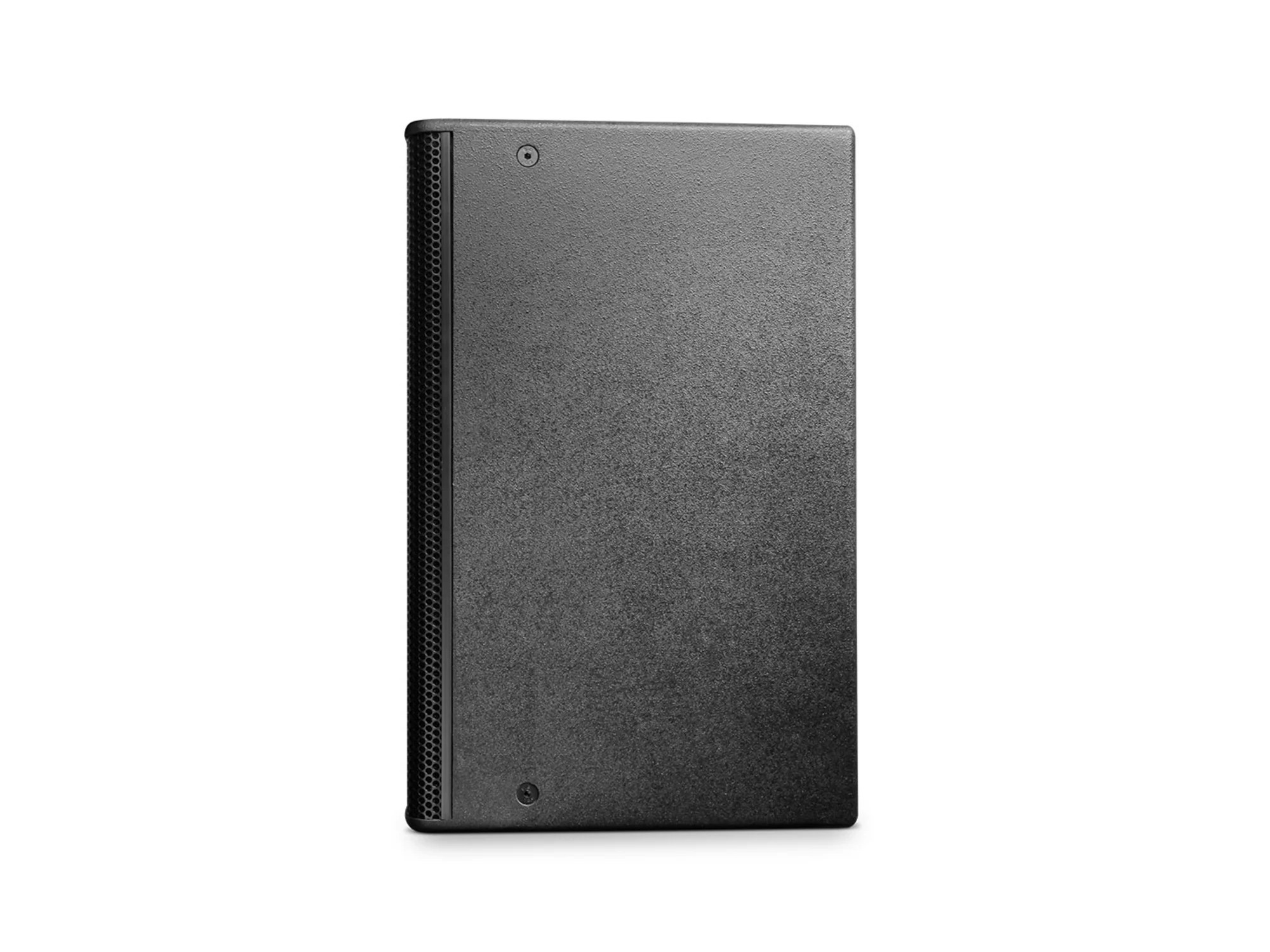

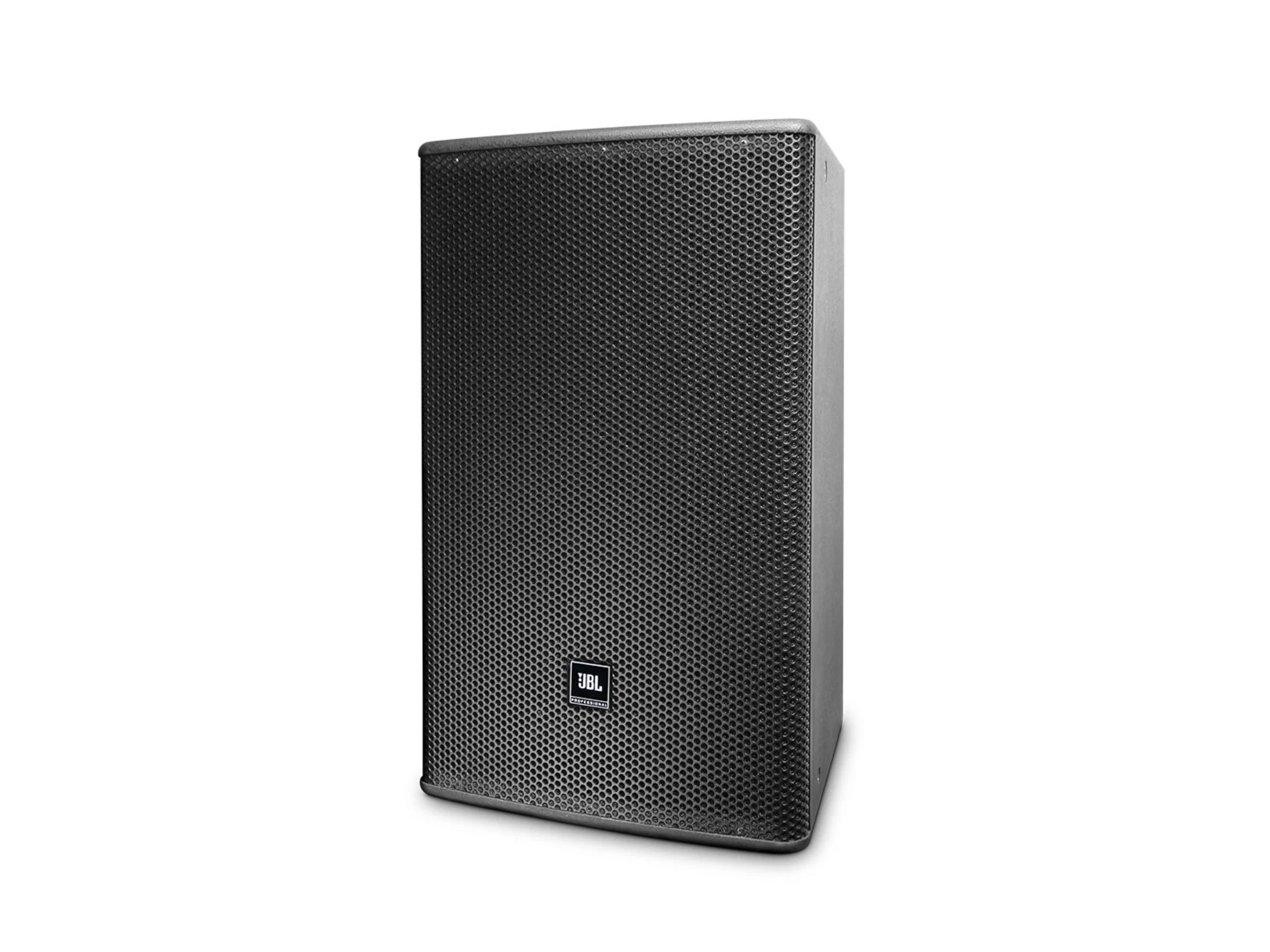

The JBL AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount or similar type mounting.
AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Specifications
- Frequency Range (-10dB): 60 Hz - 20 kHz
- Frequency Response (±3 dB): 75 Hz - 18 kHz
- System Sensitivity (1w @ 1m): 98 dB
- Nominal Impedance: 8 ohms
- Maximum SPL (1m): 122 dB (128 dB peak)
- System Power Rating
- 350W (1400W peak), 2 hrs (AES rated)
- 250W/500W/1000W (Continuous/Program/Peak) (IEC rated)
- Coverage Pattern: 90° x 90° (H x V)
- Crossover: 1.5 kHz
- LF Driver: 1 x 15" woofer (P/N: 5053935), 381 mm (15 in) driver with 38 mm (1.5 in) voice-coil
- HF Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
- Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
- Enclosure: 15 mm multi-ply hardwood plywood
- Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
- Suspension Attachment: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket
- Crossover Modes: Passive
- Nominal LF Driver Impedance: 8 ohms
- Nominal HF Driver Impedance: 8 ohms
- Dimensions (HxWxD): 23.62 x 14.57 x 15.43 inch (600 x 370 x 392 mm)
- Net Weight (each): 43.4 lbs (19.7 kg)
UPC: 691991001307
