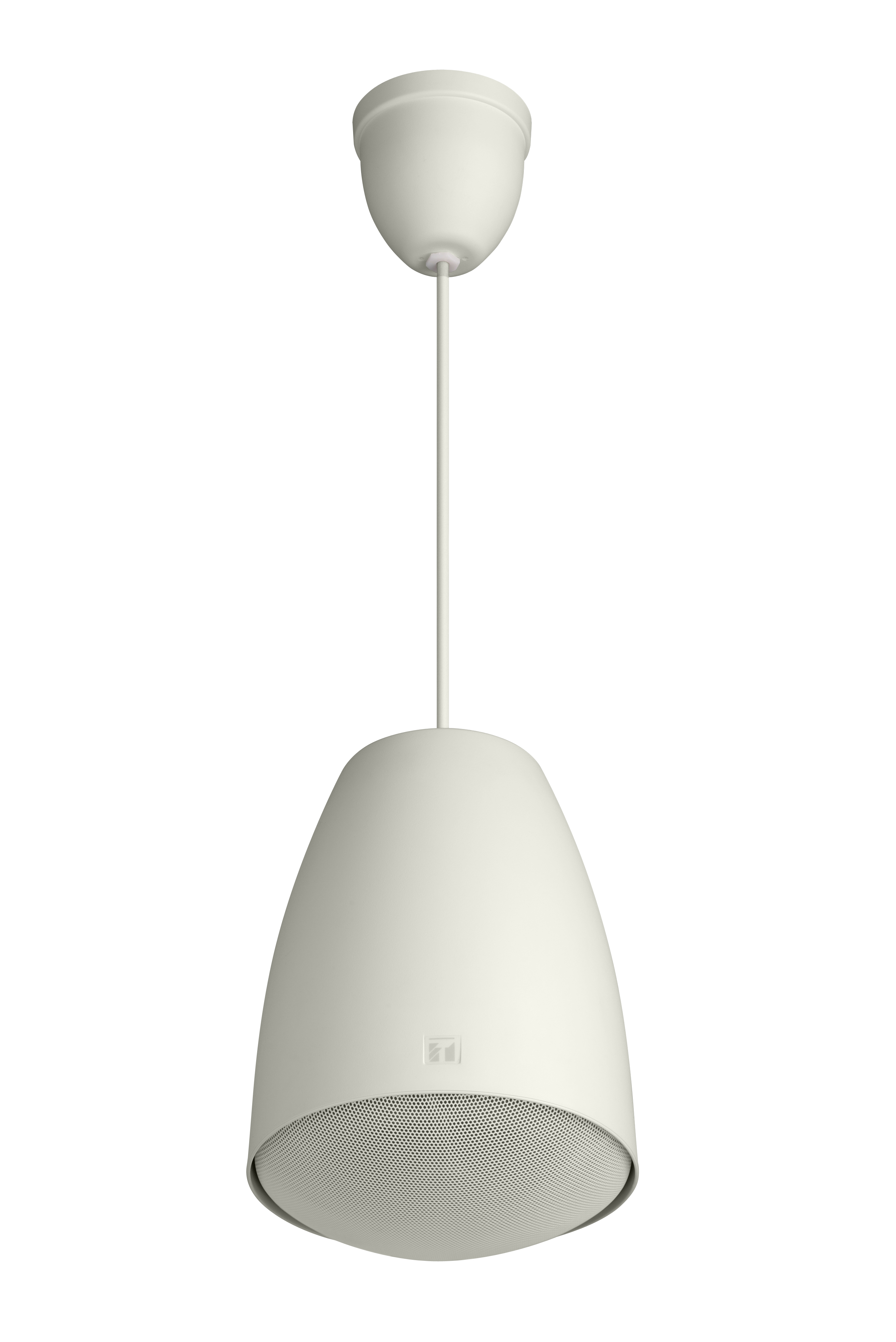

TOA Canada Pendant Speaker - White

Model: PE-304

TOA Canada Pendant Speaker - White
  • Free Shipping on orders over $199
  •  In Stock - Ship or Pick-up
  • Not yet reviewed

More models to choose from:

White$109.00
Black$109.00



About: TOA Canada Pendant Speaker - White

The PE-304 pendant style public address speaker is built within an HIPS resin bass-reflex enclosure using 5" (12cm) cone-type pendant speakers and are intended for ceiling suspension installation. They have an outstandingly stylish design that is inspired by the finest lighting fixtures, allowing them to harmoniously blend in with lighting equipment. They are ideally suited for such applications as BGM and announcements at high-ceiling venues such as airports, factories and shopping malls. The speakers are easy to repaint, extending the range of design needs they can meet and also include a balanced dome tweeter. A directly attached sturdy suspension cable is extendable up to 16.4ft. (5 meters). PE-304 is driven on a high- and low-impedance(8Ω) line. Input impedance is adjustable with rotary switch on the upper side of the speaker. The PE-304 is backed with a five year warranty.

  • Enclosure Bass-reflex type
  • Rated Input 30 W (100 V, 70 V line, 8 Ω)
  • Rated Impedance
    • 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
    • 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
    • 8 Ω
  • Sensitivity 91 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
  • Frequency Response 70 - 20,000 Hz (peak -20 dB)
  • Speaker Component 12 cm (5") cone-type + balanced dome-tweeter
  • Speaker Cord 2-core cabtyre cord 5 m (16.4 ft)
  • Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire), Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14), 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
  • Connection Push-in connector (bridging terminal-2 branch type)
  • Finish Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
  • Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
  • Dimensions φ186 × 251 (H) mm (φ7.32" × 9.88") (unit only)
  • Weight 2.1 kg (4.63 lb) (unit only)
  • Includes:
    • Toa Electronics PE-304 Pendant Speaker System (White)
    • Ceiling Bracket
    • Mounting Hanger
    • Ceiling Cover
    • 4 x Speaker Mounting Screws (4 x 16)

Reviews: TOA Canada Pendant Speaker - White

There are currently no product reviews.


Warranty: TOA Canada Pendant Speaker - White

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Audio - 5 Years

With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty

Intercom - 5 Years

All Batteries have a 1 year warranty

Parts

All parts have a 90-day warranty. All Batteries have a 1 year warranty.
