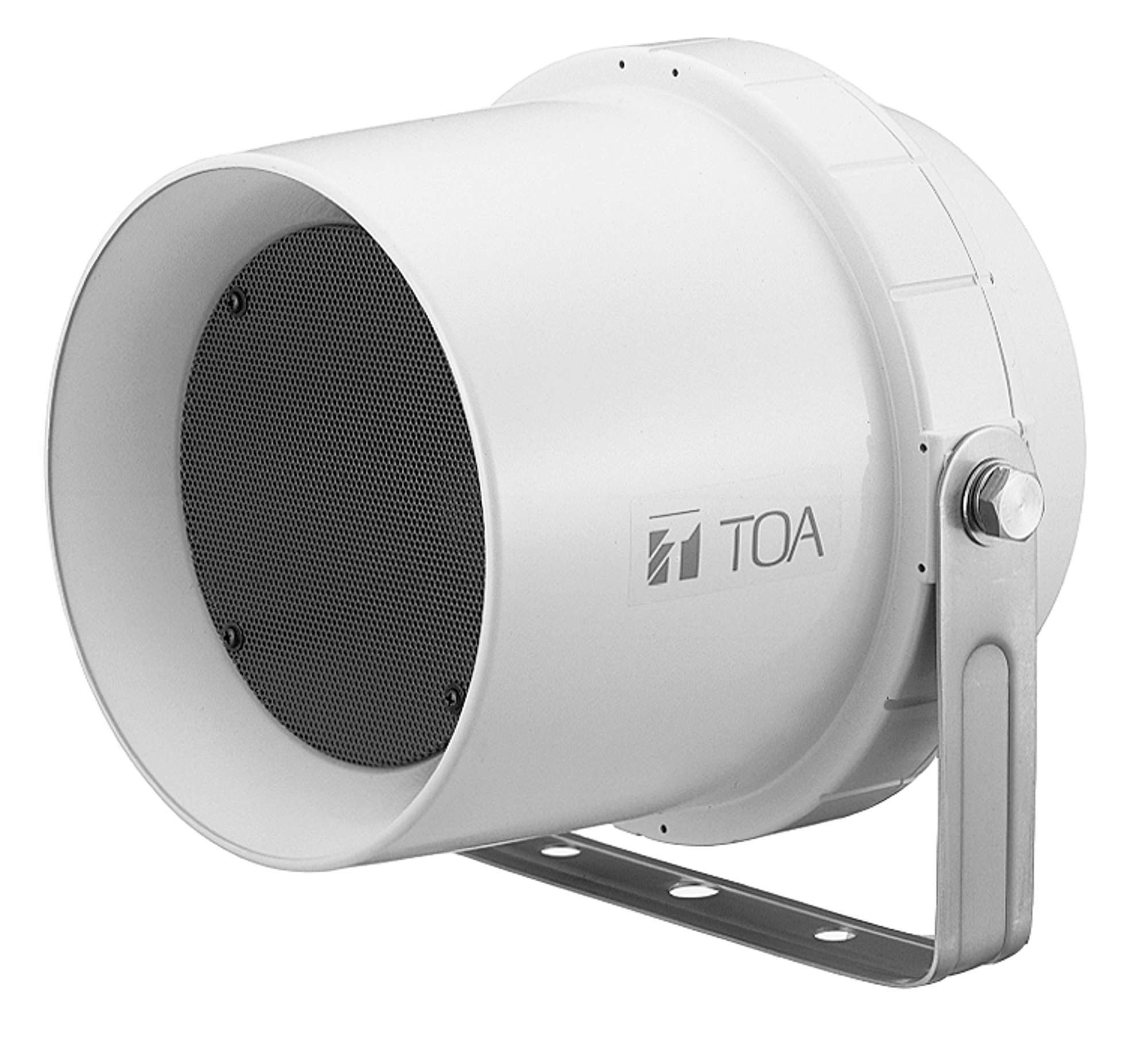

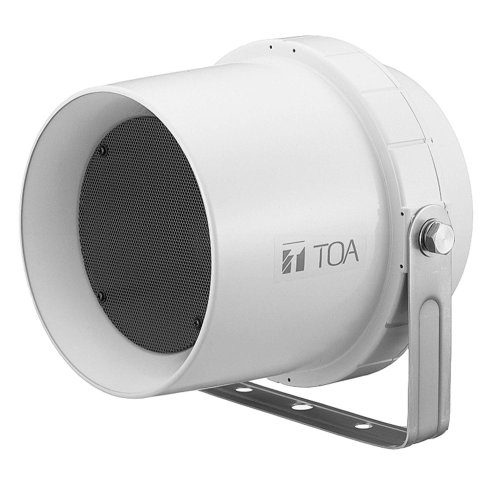

TOA Canada CS-64 6W 70V Outdoor Projection Speakers (UL Certified)
Model: CS-64U
About: TOA Canada CS-64 6W 70V Outdoor Projection Speakers (UL Certified)
The CS-304U outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-304U employs the rotary switch that facilitates impedance changes. It also employs a constant directivity horn for clear sound output over its horizontal range of 90° operation.
- Round wide-range speaker for paging, background music and tone signaling distribution
- Exponential horn improves directivity characteristics and ensure uniform and clear sound dispersion
- Wide temperature range: -20 to +55 °C
- Stainless steel hardware protects the speaker from corrosion
Specifications
- Rated Input - 6 W
- Rated Impedance
- 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
- 70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
- Sensitivity - 96 dB (1 W, 1 m)
- Frequency Response - 130 - 13,000 Hz
- Speaker Component - 12 cm cone-type (treated for splash proof)
- Speaker Cable - 2-core cabtyre cord with diameter of 6 mm
- Compliance/Certifications - UL1480 (UEAY (outdoor use)
- Operating Temperature - -20℃ to +55℃
- Finish
- Horn, cover: Fire-resistant ABS resin, off-white, paint
- Bracket: Stainless steel
- Panched net: Surface treated steel plate, dark-gray, powder coating
- Screw: Stainless steel
- Dimensions - 233 (W) x 224 (H) x 208 (D) mm
- Weight - 1.5 kg
Reviews: TOA Canada CS-64 6W 70V Outdoor Projection Speakers (UL Certified)
Warranty: TOA Canada CS-64 6W 70V Outdoor Projection Speakers (UL Certified)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and TOA Canada do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
