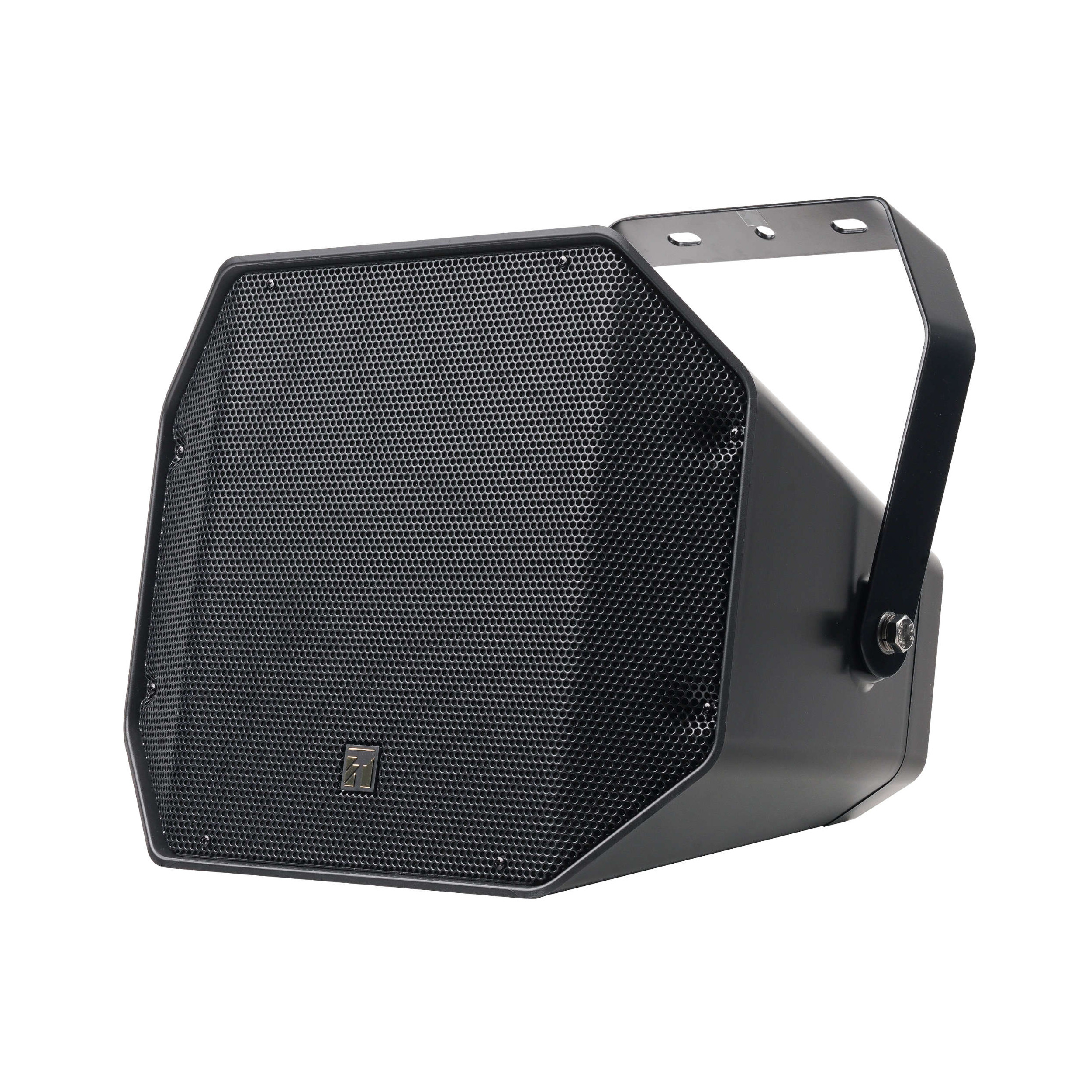

TOA Canada CS-761B 2-Way Coaxial Horn Speaker - Black
Model: CS-761B
About: TOA Canada CS-761B 2-Way Coaxial Horn Speaker - Black
CS-761 is a 2-way coaxial speaker system designed for high efficiency, high power input handling capacity, and is a highly intelligible speaker suited for public address announcements and BGM application in an outdoor environment.
- Highly intelligible broadcasts that can be used for music.
- IP66 rating: Ideal for outdoor applications within the rated operating temperature specifications.
- 2-way coaxial speaker construction with 16 cm cone speaker and 2.5 cm tweeter enabling.
- Wide frequency response 100 Hz - 20 kHz allowing various audio applications.
- High-powered 60 W rated input enabling high-quality broadcast in a wide area.
- An elegant enclosure formed of straight lines suitable for any installation requirements.
Specifications
- Rated Input - 60 W
- Rated Impedance
- 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
- 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
- Sensitivity - 100 dB (1 W, 1 m) (1 kHz – 10 kHz, pink noise)
- Frequency Response - 100 Hz – 20 kHz
- Directivity Angle - Horizontal: 90°, Vertical: 80°
- Speaker Component - Low frequency: 16 cm (6") cone-type, High frequency: 2.5 cm (1") tweeter
- Connection - Speaker cable (Hot: Black, Com: White)
- Dust/Water Protection - IP66
- Operating Temperature - –10 to +50 °C (14 to 122 °F)
- Finish
- Enclosure:ABS resin, black (RAL 9011 equivalent),paint
- Punched net:Steel plate, black (RAL 9011 equivalent),paint
- Bracket:Stainless steel, black (RAL 9011 equivalent), powder coating
- Dimensions - 388 (w) x 310 (h) x 367 (d) mm (15.28" x 12.2" x 14.45")
- Weight - 7.6 kg (16.75 lb)
Reviews: TOA Canada CS-761B 2-Way Coaxial Horn Speaker - Black
Warranty: TOA Canada CS-761B 2-Way Coaxial Horn Speaker - Black
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and TOA Canada do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
