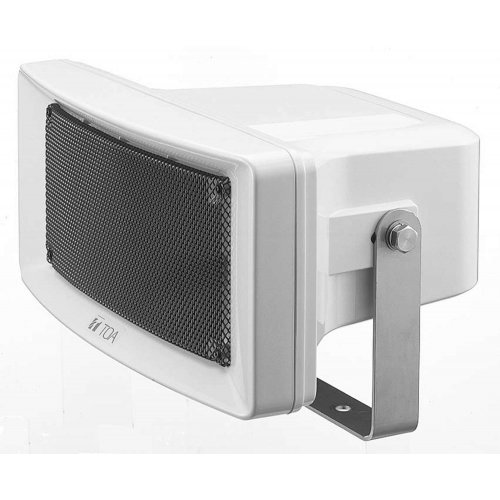

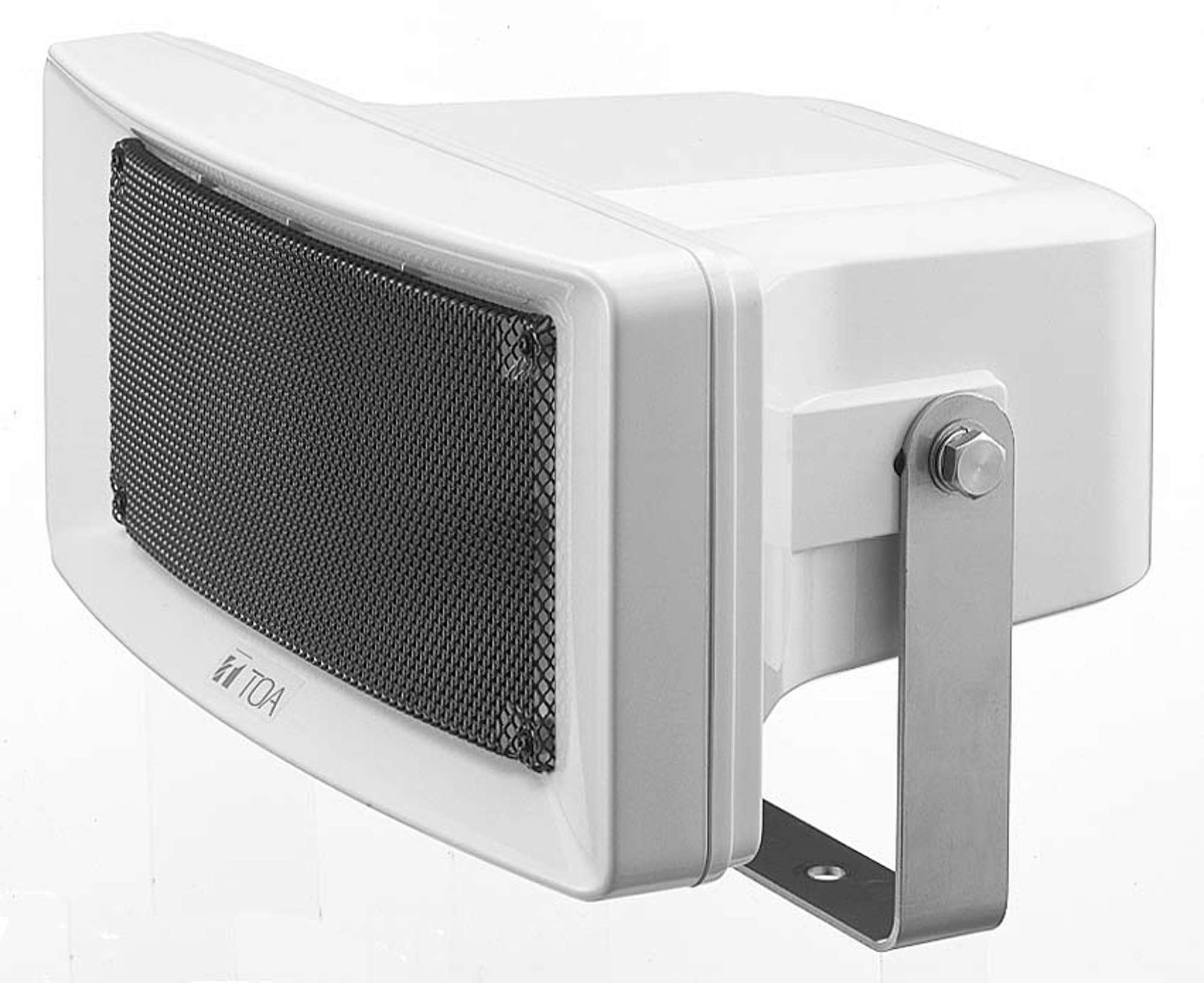

TOA Canada CS-154U Wide Range Outdoor Speaker (UL Certified)
Model: CS-154U
About: TOA Canada CS-154U Wide Range Outdoor Speaker (UL Certified)
The CS-154U outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-154U employs the rotary switch that facilitates impedance changes. It also employs a constant directivity horn for clear sound output over its horizontal range of 90° operation.
- Rectangular wide-range speaker for voice paging, background music and tone signaling distribution
- Constant directivity horn improves directivity characteristics and ensure uniform and clear sound dispersion
- Wide temperature range: -20 to +55 °C
- waterproof plastic enclosures and stainless steel hardware for all-weather durability, IP65
- Stainless steel hardware protects the speaker from corrosion
Specifications
- Rated Input - 15 W
- Rated Impedance
- 100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
- 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
- Sensitivity - 97 dB (1 W, 1 m)
- Frequency Response - 150 Hz - 15 kHz
- Horizontal Directivity
- Constant directivity horn 90° (±45° horizontal from front axis)
- 93 dB or more (1 W, 1 m), 3 kHz at ±45°
- Speaker Component - 12 cm cone-type
- Speaker Cable - 2-core cabtyre cord with diameter of 6 mm
- Compliance/Certifications - UL1480 (UEAY (outdoor use)
- Dust/Water Protection - IP65
- Finish
- Horn, cover: Fire-resistant ABS resin, off-white, paint
- Bracket: Stainless steel
- Net: Aluminum, gray, paint
- Screw: Stainless steel
- Dimensions - 366 (W) x 230 (H) x 272 (D) mm
- Weight - 2.8 kg
