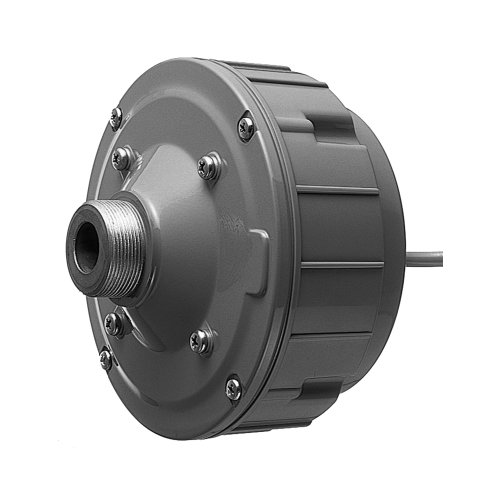

TOA Canada TU-631 30W Driver Units for Horn Speakers (Low Impedance)
Model: TU-631
About: TOA Canada TU-631 30W Driver Units for Horn Speakers (Low Impedance)
The TU-631 is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.
- Low-impedance (16 Ω) model
- Power rating: 30 W
- Frequency Response: 150 Hz – 6 kHz
- IP65 certified weatherproof construction
Specifications
- Compatible Horn - TH-650, TH-660
- Horn Coupling - 1 - 3/8 18 threads (inch screw)
- Rated Input - 30 W
- Rated Impedance - 16 Ω
- Sound Pressure Level - 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
- Frequency Response - 150 Hz - 6 kHz (When operated with JIS C 5504 standard horn.)
- Polarity - Hot: Black, Com: White
- Dust/Water Protection - IP65 (When a driver is operated with a horn.)
- Operating Temperature - -20 ℃ to +60 ℃ (-4 ℉ to +140 ℉) (no condensation)
- Finish
- Flange: Aluminum, gray, powder coating
- Rear cover: ABS resin, gray
- Screws: Stainless steel
- Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm (0.24) in diameter
- Dimensions - Φ139 x 106 (D) mm (Φ5.47 x 4.17")
- Weight - 1.4 kg (3.09 lb)
- Optional Accessories
- Driver unit cover: UC-200A
- Matching transformer: TM-30T, TM-60T
