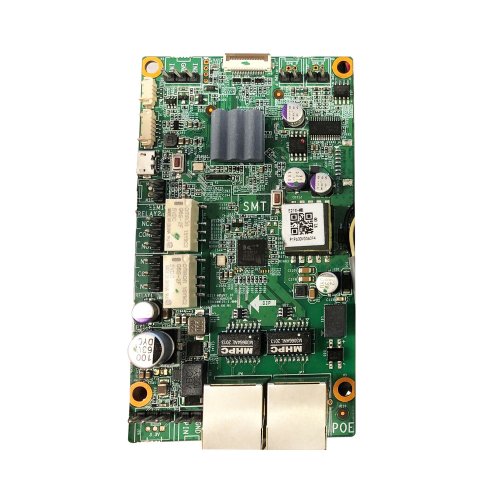

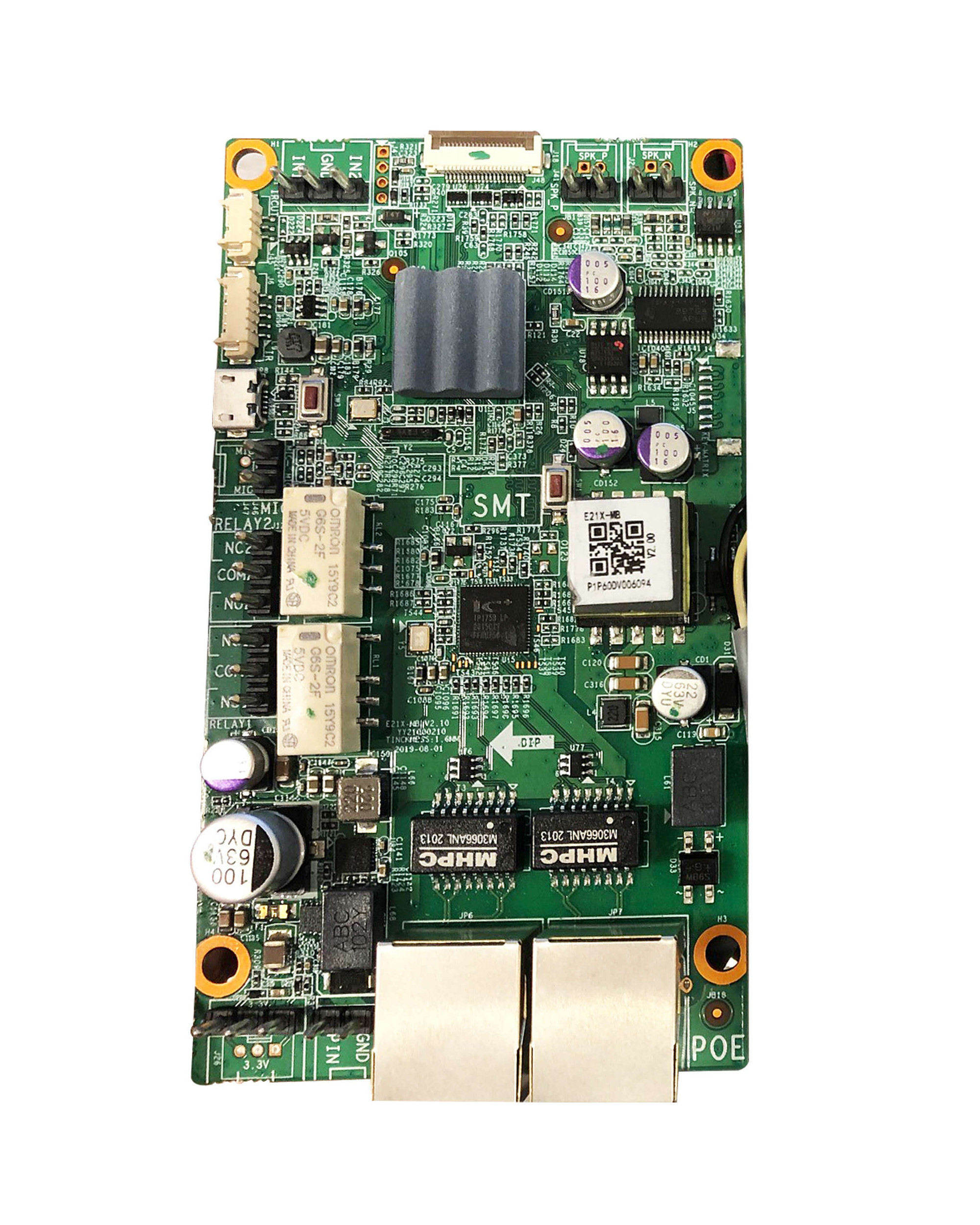

TOA Canada N-SP80SB Standalone PCB SIP Board
Model: N-SP80SB
About: TOA Canada N-SP80SB Standalone PCB SIP Board
N-SP80SB is a SIP-compliant hands-free Voice over IP (VoIP) PCB board that offers flexible audio communications using standard SIP protocol for parking facilities, college campuses, medical centres, and industrial parks. It can integrate with external SIP- compatible systems through a SIP server.
- Compatible with major audio codecs high-quality audio
- Built-in AEC (Acoustic Echo Canceller) Full-duplex
- Communication and Transmission
- Two control relay outputs
- 1x Microphone (electret or dynamic microphone)
Specifications
- Power Supply - 12VDC/1A or 24VDC/0.5A External Power Supply or PoE IEEE 802.3af standard
- Control Input - 2 channels, no-voltage make contact input, open circuit voltage: 5 V DC, short-circuit current: 10 mA or less
- Control Output - SIP Features: SIP v1(RFC2543), SIP v2 (RFC3261) Audio codecs: G.711a, G.711µ, G.722, G.729 Speech Quality: 7kHz Audio Echo Cancellation Voice Activation Detection Comfort Noise Generator
- External Interface - shielded RJ45 modular jacks
- Speech Features - Phone Features: Web support multi-language Auto-answer Volume control Direct IP call without SIP proxy Auto-Provision
- Network - 2x10/100Mbps Ethernet Port Security: Password Protection, IP address filtering, SIP over TLS, HTTPS encryption, user access log, SRTP (Secure RTP) Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Installation Method - pluggable screw terminals
- Operating Temperature - -20℃ ~ +55℃ Storate Temperature -20℃ ~ +70℃
- Operating Humidity - Up to 95% not condensing
- Dimensions - 115 (H) x 65(W) x 16(D)mm (4.52" x 2.55" x 0.629")
