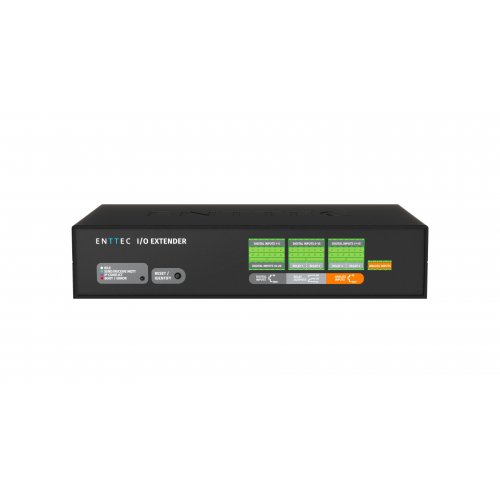

ENTTEC I/O Extender for S-PLAY

About: ENTTEC I/O Extender for S-PLAY

The I/O Extender for S-PLAY expands your system with 20 digital inputs, 4 relays, and 2 analog inputs, offering seamless integration, easy configuration, and flexible mounting for enhanced lighting control.

• Extends the S-PLAY SP1-1 I/O capabilities for enhanced control.
• Supports 12-24V DC power input via screw terminal.
• Equipped with two Ethernet ports for flexiblenetwork expansion.
• Adds 20 digital inputs to your S-PLAY system for increased signal management.
• Integrates 4 additional relays to enhance system control.
• Includes 2 analog inputs for broader monitoring and control.
• Features screw terminal connections with pluggable terminal blocks for easy wiring and unified cable requirement.
• Simplified configuration in the I/O Extender with most settings managed through the S-PLAYinterface.
• Real-time data exchange and synchronised control with the S-PLAY SP1-1 Smart Show Controller.

Expand the capabilities of your S-PLAY with this easy to set-up companion.

Compatible with the S-PLAY SP1 and LITE, ENTTEC’s I/O Extender enhances your system’s input/output capabilities, integrating with setups for advanced smart lighting control.

Boost your system with an additional 20 digital inputs, 4 relays, and 2 analog inputs, making it ideal for both simple and complex installations – all easily managed via your existing S-PLAY interface.

With Ethernet In and Through ports, reliable network integration is effortless, while screw terminal and pluggable terminal blocks ensure a streamlined wiring process.

Expand your control

Put simply, the I/O Extender adds a whole swathe of extra physical connections to your S-PLAY system, enabling you to create many more triggers and events than were previously possible to be controlled by the same unit.

With 20 general-purpose input/output (GPIO) digital inputs, you can add multiple sensors, wall switches and much more.

The 4 relay inputs are ideal for operating mechanical devices such as curtains, pumps, winches or lifts.

You also get two analog inputs for light sensors, pressure sensors, temperature sensors, joysticks … pretty much any analog signal device you like.

Flexible networking

The I/O Extender is equipped with two Ethernet ports to create a dedicated, standalone S-PLAY show playback network. Easy to configure and monitor via the S-PLAY’s web interface.

Always in sync

The I/O Extender is engineered to ensure real-time data exchange and synchronized control with your S-PLAY device. It’s also effortless to configure, with most settings easily managed via the S-PLAY’s own web interface.

Versatile power input

Flexible power options with a 12-24C DC screw terminal input.

Seamless integration

Ideal for projects requiring additional signal management and control capabilities. Add multiple I/O Extenders to your S-PLAY setup to build a larger, more powerful network. Choose from flexible installation options, including half rack, full rack, or surface mount, to perfectly fit your setup.

Specifications

• Connectors
  • 1 x Power (Screw terminal)
  • 2 x Ethernet (RJ45)
  • 20 x Digital Input (Screw terminal)
  • 4 x Relay (Screw terminal)
  • 2 x Analog Input (Screw terminal)
• Power Input: 12~24V DC
• Max. Power Draw: 3.35W
• Max. Current Draw: 280mA
• IP rating: IP20
• Network Speed: 10/100Base-T
• Network Discovery: ENTTEC’s EMU Software
• Network Configuration
  • DHCP (Default)
  • Static (192.168.0.10)
• Control Input: S-PLAY SP1-1 (Firmware V3 above)
• Analog Input Range: 0-10V DC
• Relay Max. Switching Power/Current: 60W, 125VA/2A
• LED Indicator
  • Forward-facing LED indicator
  • Network link/activity Integrated into RJ45 ports
• Cooling Method: Convection
• Environmental operating temperature: 0°C to 50°C (32°F to 122°F)
• Environmental operating humidity: 0 to 95% (non-condensing)
• Body material
  • ABS Plastic & Anodised
  • Aluminium
• Dimensions: 200x120x42 mm
• Weight: 0.50kg / 1.10lbs
• Warranty: 3-year return to base manufacturer warranty

What's in the Box

• I/O Extender
• Cat5 Cable
• Rack, Surface/Din mount ears + Din Clips + Screws
