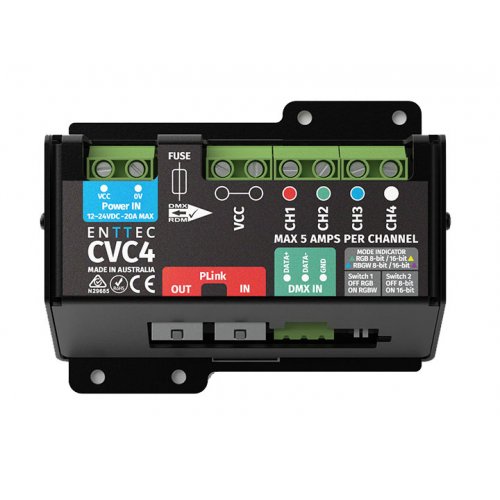

ENTTEC CVC4 Constant Voltage LED Driver w/ DMX and Plink
Model: 73926
About: ENTTEC CVC4 Constant Voltage LED Driver w/ DMX and Plink
The CVC4 is the next evolution of the ENTTEC LED dimmer, building upon the the CVC3 and DIN-LED4PX. Think of the CVC4 as a higher power version of these popular models, with the added option for 16-bit dimming, plus the ability to configure it to take up the same channel footprint as a CVC3 in an existing application if you wish.
Capable of controlling up to 5A on each of its four channels at either a 16- or 8-bit resolution, the CVC4’s ultra smooth-dimming, auto-addressing functionality and simple mode selection make it one of the most comprehensive yet versatile devices imaginable.
With rugged, in-built surface mount tabs, it’s easy to install, whilst its solid-state, fanless design means that the CVC4 is virtually silent when in operation. Incorporating a user-serviceable fuse to reduce the amount of external components and wiring required for a safe installation, the CVC4 has been engineered to bring the ultimate in installer-friendly flexibility and fast deployment when constructing a constant voltage LED strip project.
- 12-24V input (20A maximum)
- Output to LED strip (5A per channel maximum)
- Huge 1KHz PWM signal refresh rate
- PLink in and out connector for auto-addressing (each unit can be spaced up to 300m away from the next when using PLink over Cat6 cable)
- Single DMX connector for DMX/RDM input, or chaining between devices
- Status LED and mode selection DIP switch to toggle between bitrate and RGB/RGBW operating modes
- User-serviceable fuse to protect against short circuits
- Passive cooling with internal overheating protection
- Compact design with integrated 4mm surface mounting holes
UPC: 9351074003413
