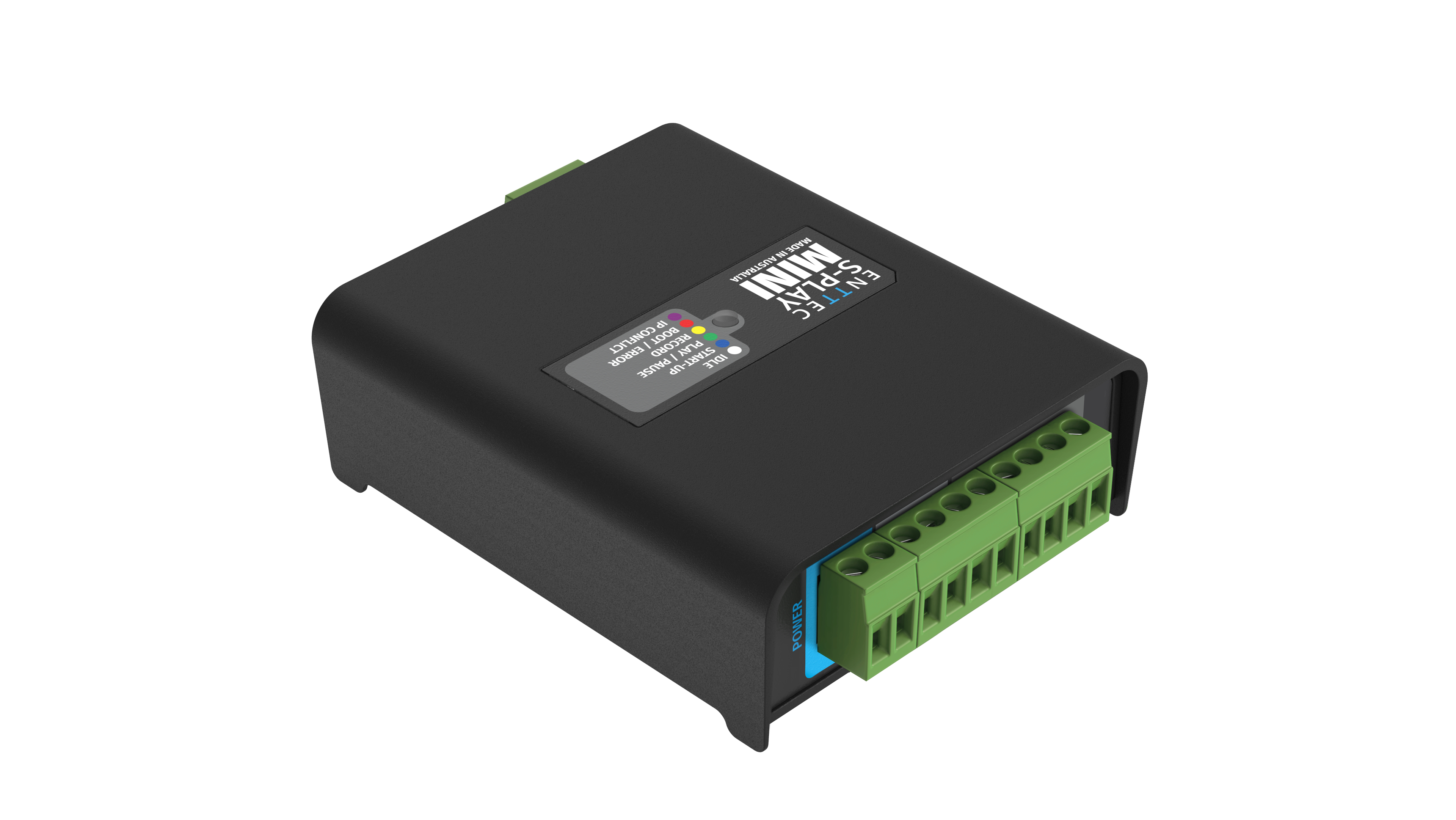

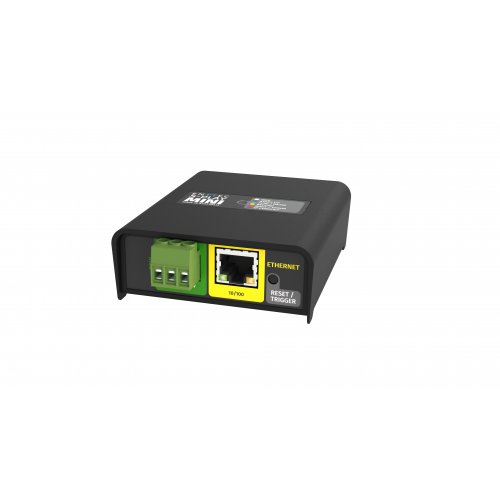

ENTTEC S-PLAY MINI DMX Recorder / Player

About: ENTTEC S-PLAY MINI DMX Recorder / Player

ENTTEC’s S-PLAY MINI is a robust and compact show recorder and playback controller that streamlines your light show by seamlessly integrating external hardware, enabling you to achieve sophisticated lighting control with ease.

S-PLAY MINI generates a maximum of 16 light Static/Dynamic/Effect Cues by recording 2 universes of Art-Net/sACN sources or 1 complete universe via DMX port live recording. Alternatively, you have the option to use the built-in pixel effect generator offering an easy-to-use tool for creating a gradient Effect Cue in just a matter of minutes.

The S-PLAY MINI allows flexibility to fully integrate external devices into the installation that receive Triggers or automate Events through contact closures, Art-Net, sACN, DMX, UDP or OSC.

Drag and drop within S-PLAY MINI’s timelines system, users are allowed to design up to 8 Playlists using created Cues, Events and Triggers as building blocks intuitively. Control the number of play counts, priority, fade times and master intensities to fine-tune your playlists.

Playback on power up with preferred loop times or choose to trigger the playlists with Custom Interface or external Triggers in a different fashion to allow up to 8 Playlists playback simultaneously overlapping and blending with each other with different groups and priorities.

Features

• Supports recording & playback up to 2 Universes of eDMX (Art-Net and sACN) or 1 full universe physical DMX.
• Records cues from Art-Net, sACN, DMX sources with the added convenience of a DMX value monitor.
• Creates gradient Effect Cues using the on-board effect generator.
• In-built web-based design engine for recording Cues, editing Events and Triggers, and managing Playlist playback, all through a user-friendly interface.
• Flexibility to create up to 8 Playlists, comprising a maximum of 16 Cues, including Static, Dynamic, and Effect Cues.
• Sends up to 16 automated Events from options: Art-Net, sACN, DMX, Relays, UDP & OSC.
• Supports up to 16 Triggers from options: Art-Net, sACN, DMX, Digital Inputs, UDP, OSC and Trigger button on the device.
• Creates user-friendly Custom Interface.
• Playlists is set to automatically start on power up and playback according to your desired loop times.

Specification

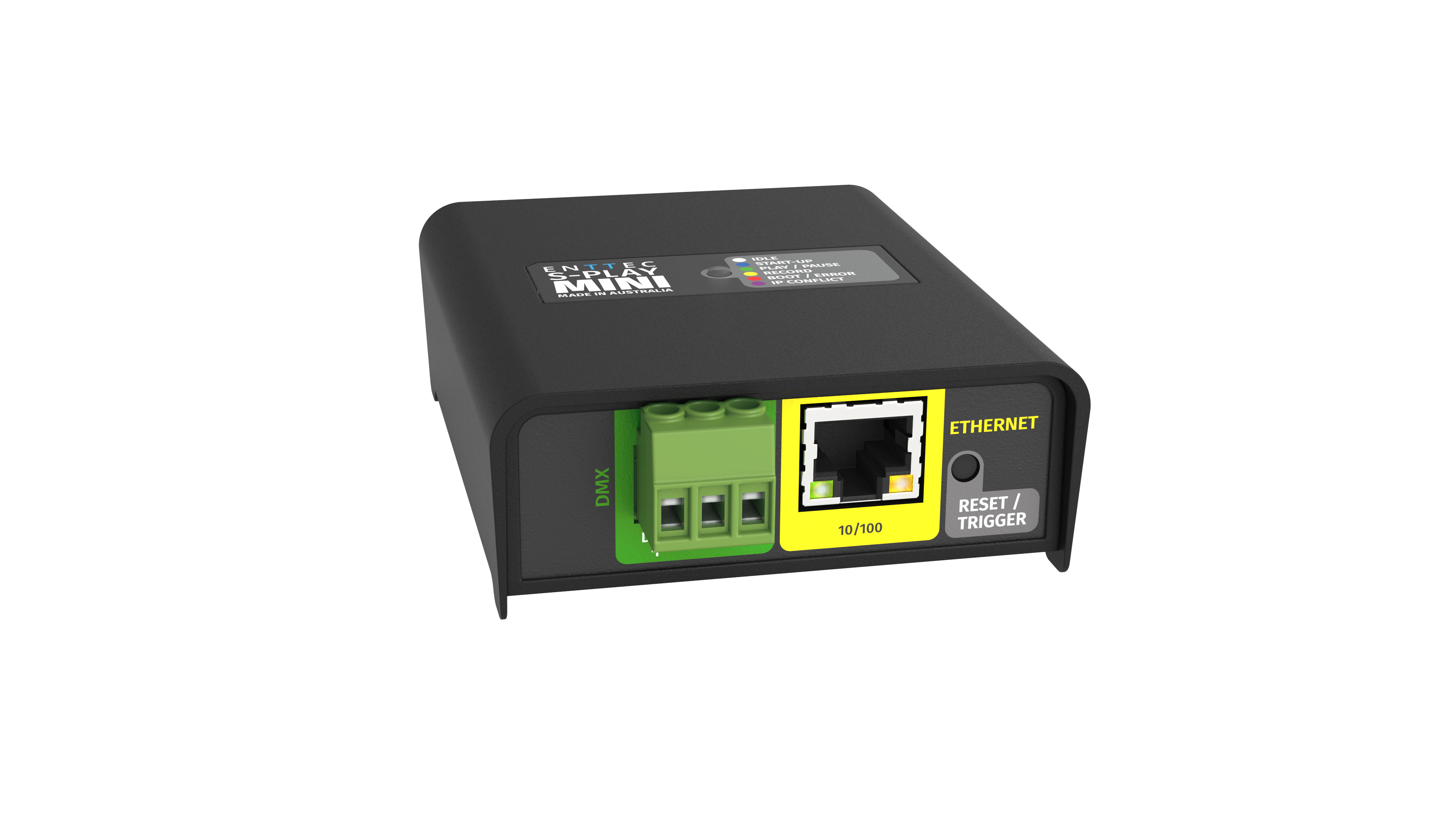

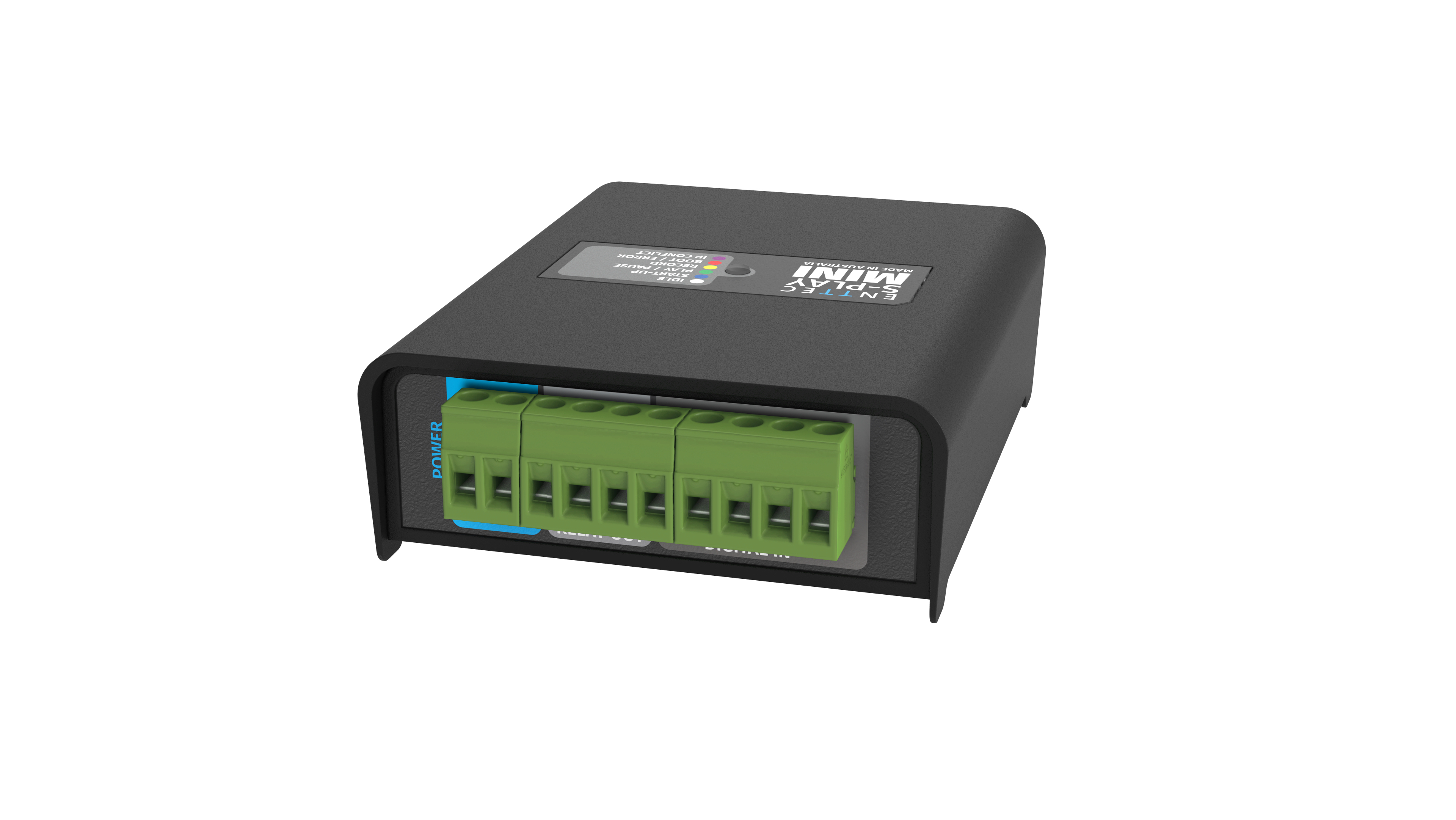

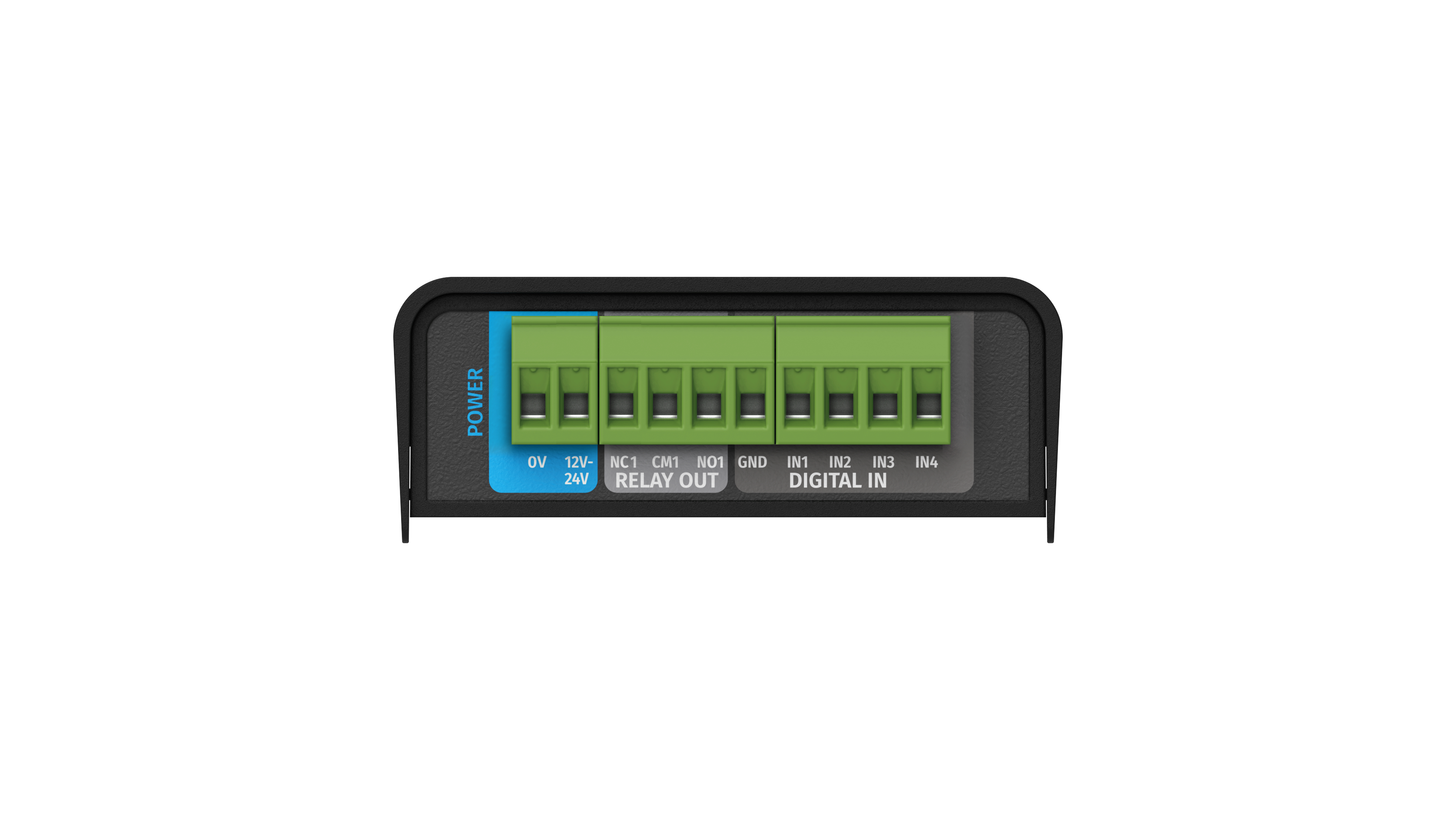

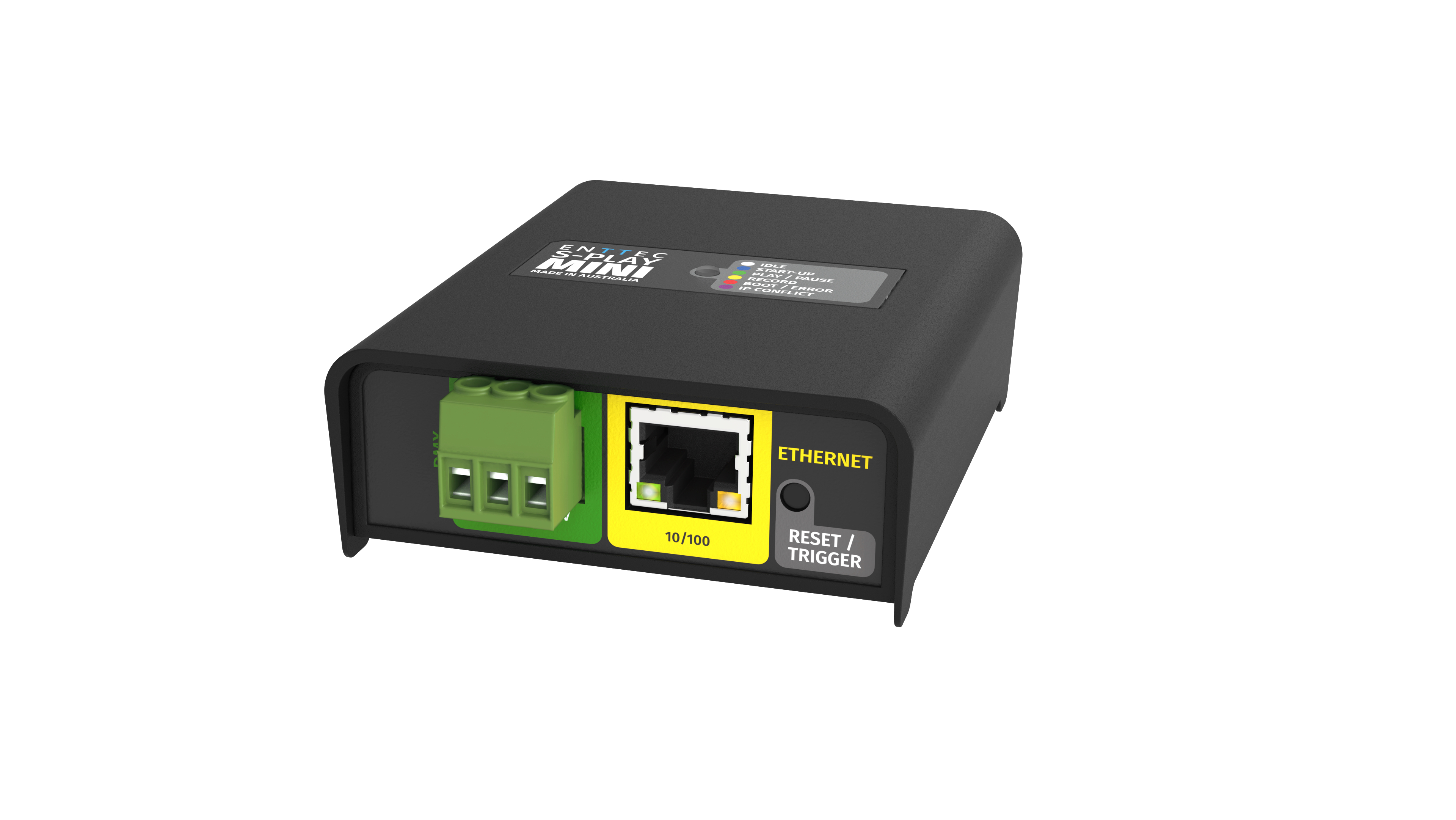

• Connectors
  • 1x Power Input (2-Pin Phoenix)
  • 1x Ethernet (RJ45)
  • 1x Relay (3-Pin Phoenix)
  • 1x Digital Input (5-Pin Phoenix)
  • 1x Bi-directional DMX Port (3-Pin Phoenix)
• IP rating -  IP20

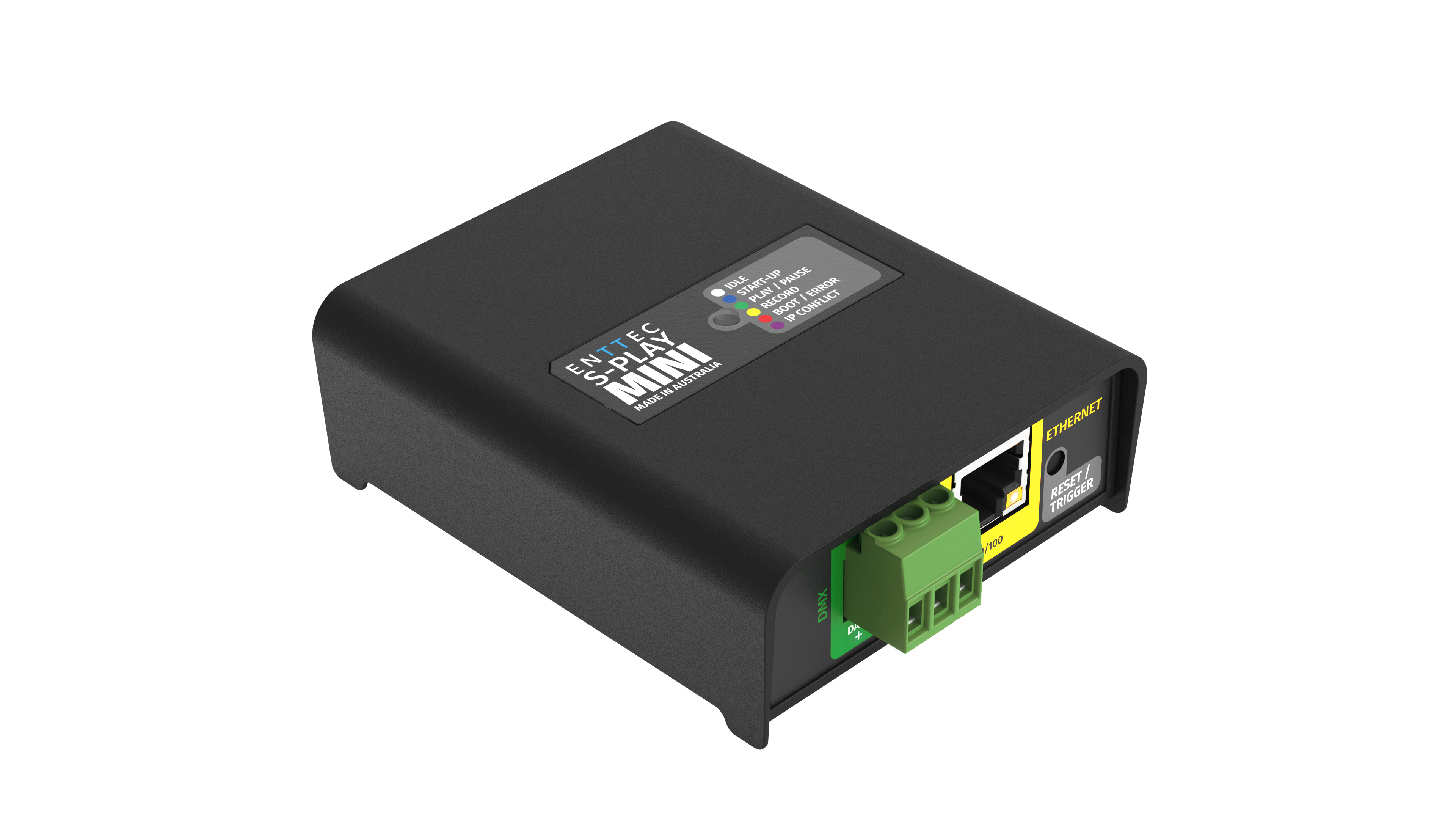

• LED indicators
  • Forward facing LED indicator
  • Network link / activity (integrated into RJ45 ports)
• Number of Universes & Input / Output Protocol
  • 1U: USITT DMX512-A
  • 2U: Art-Net & sACN
• Max Refresh Rate (FPS) -  40 FPS
• Input Voltage -  12-24V DC
• Max. Power Draw -  3W
• Internal Storage -  1GB
• Expandable storage -  No
• Cooling Method -  Convection
• Environmental operating temperature -  0°C to 50°C (32°F to 122°F)
• Environmental operating humidity -  0 to 95% (non-condensing)
• Body material -  ABS Plastic
• Mounting options -  Surface & TS35 DIN Rail mount
• Unit dimensions -  3.96 x 2.84 x 1.34 inch (100.5 x 72.25 x 34 mm)
• Unit weight -  0.18 lbs (0.83kg)
• Warranty -  3-year return to base manufacturer warranty

What's in the Box

• S-PLAY MINI (70093)
• Din Clip
• Screws
• ReadMe Card
