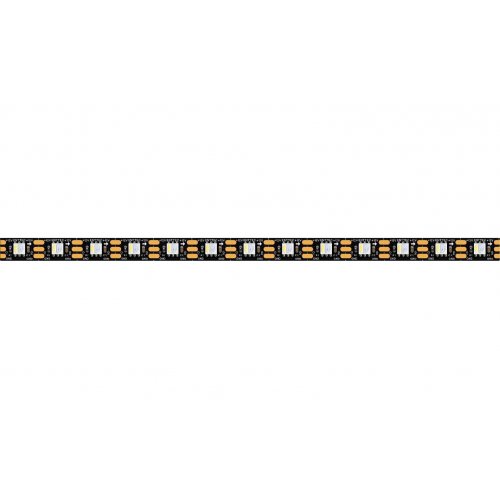

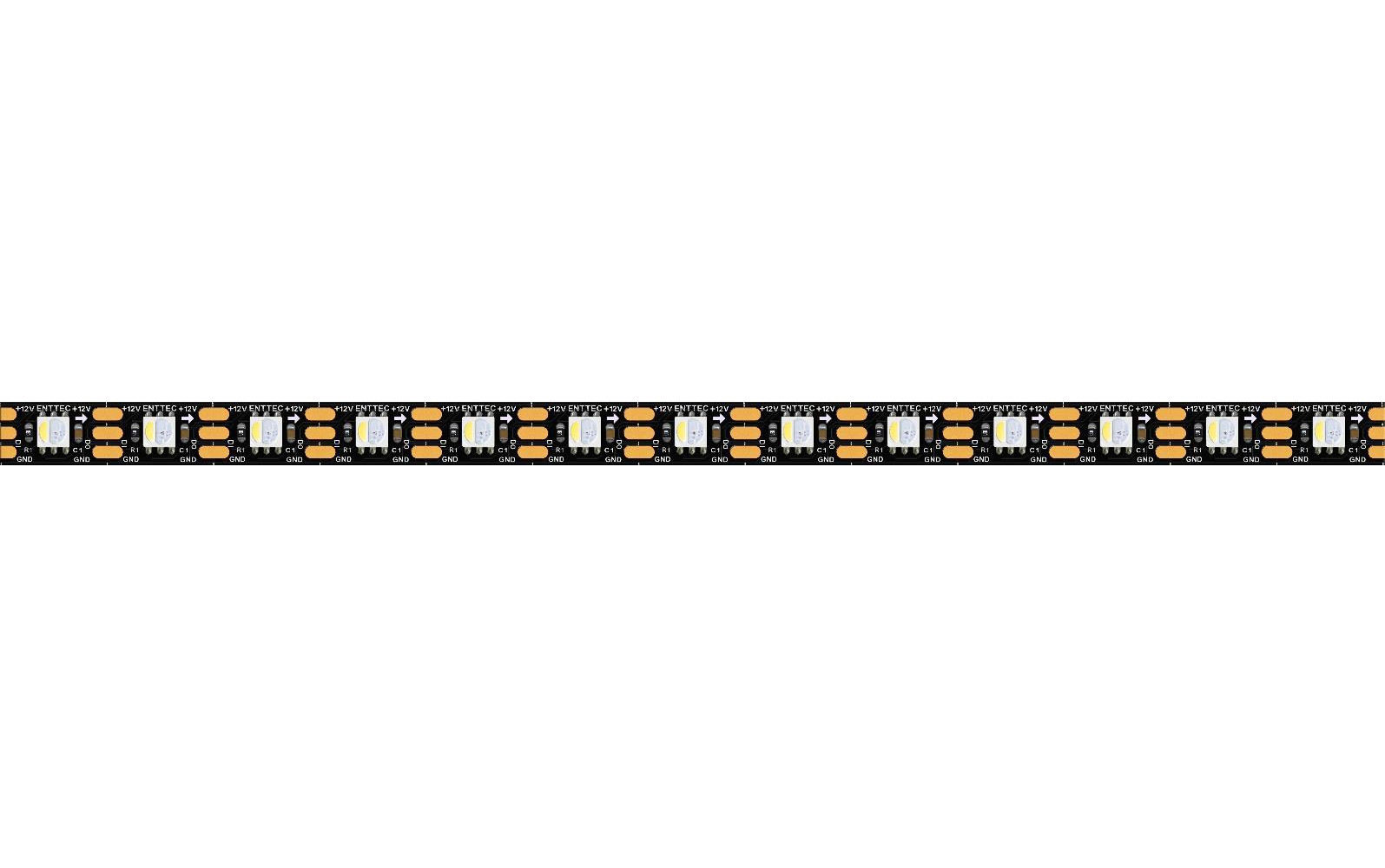

ENTTEC 8PXA60 RGBW Pixel Strip (12V, 60-LEDs/m, 1:1) w/ Black PCB, 5M Roll

About: ENTTEC 8PXA60 RGBW Pixel Strip (12V, 60-LEDs/m, 1:1) w/ Black PCB, 5M Roll

ENTTEC 8PXA60-RGBW-12V-B is an installation grade 12V 60 LEDs per metre addressable RGBW LED Pixel Strip designed for professional architectural and entertainment purposes, used to display smooth animated graphics achieving soft pastels and saturated colours on a large scale. Cut and join into any conceivable shape.

• RGBW, 4 in 1 full colour LED pixel strip.
• Premium flexible white 3oz copper PCB.
• Suitable for stage, entertainment and architectural applications.
• 12V DC input supply voltage.
• 60 LEDs per metre density.
• SK6805 IC chips (compatible with the SK6812 protocol).
• 4.29 billion possible shades per LED.
• 120-degree illumination.
• 3M adhesive double side tape on the rear.
• Built-in data signal reshaping circuit.
• High LED density.
• Can be cut or joined at each copper tab.
• IP20 Indoor use only.
• Designed for use with ENTTEC pixel products.
• Maximum 21.8 Watts/Metre.

The black PCB makes it perfectly suited for direct view applications where the black PCB will be lost in the darkness when all pixels are off.

It’s 800 Kbps transmission rate and 8-bit colourdepth means graphics and animations are played back smoothly and consistently.

At ENTTEC, manufacturing quality and attention to detail is paramount. We always use thicker PCB to offer more durability, better heat dissipation and reduced voltage drop when compared to other LED strips available on the market. This in combination with the 12V operating voltage allows up to a 7m run with a single power injection.

60 RGBW LEDs per metre

ENTTEC LED pixel strip boasts 60 colour-calibrated, individually-addressable, RGBW LEDs per metre. Each LED is patched as an individual pixel, and offers consistent brightness and extended colour gamut.

Australian designed for performance

Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

Bright + super-efficient

With a maximum power consumption of only 21.8 watts per metre, and a lumen capacity of 1,088 lumens per metre, this 12V pixel strip provides a bright and efficient package.

Millions of colours

Each pixel can achieve a 32-bit, True Colour display. That’s a whopping 4,294,967,296 possible colours for each LED chip.

Black or white

A black printed circuit board is a great way to minimise external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.

Extend as you please

Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only
