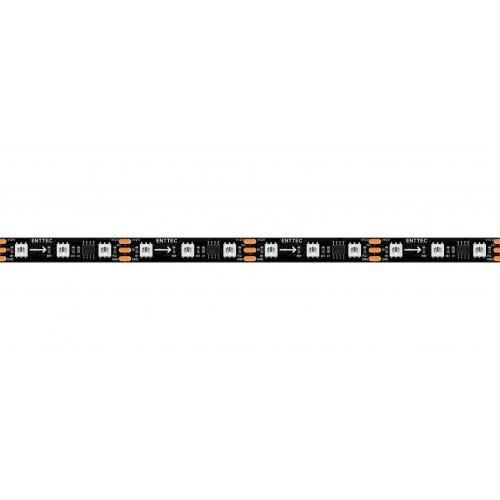

ENTTEC 8PXB60 RGB Pixel Strip (12V, 60-LEDs/m, 3:1) Long Range w/Black PCB, 5M

About: ENTTEC 8PXB60 RGB Pixel Strip (12V, 60-LEDs/m, 3:1) Long Range w/Black PCB, 5M

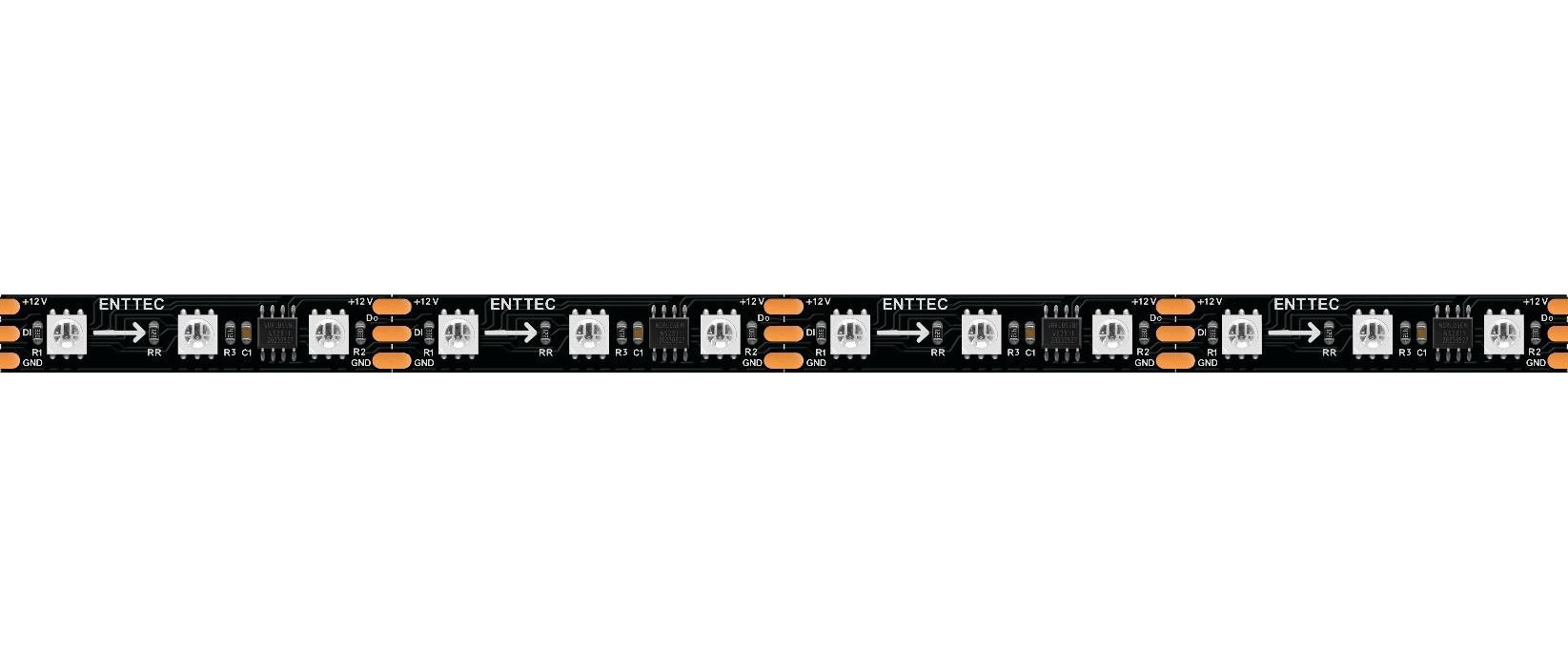

ENTTEC 8PXB60-RGB-12V-B is a 12V 60 LEDs per metre addressable RGB LED Pixel Strip allowing individual colour control over clusters of 3 RGB LEDs (20 pixels per metre), designed for professional architectural and entertainment purposes, used to display smooth animated graphics achieving soft pastels and saturated colours on a large scale. Cut and join into any conceivable shape.

• RGB, 3 in 1 full colour LED pixel strip.
• Premium flexible black 3oz copper PCB.
• Suitable for stage, entertainment and architectural applications.
• 12V DC input supply voltage.
• 60 LEDs per metre density.
• 20 Pixels per metre density.
• WS2811 IC chips.
• 16.4 million possible shades per LED.
• 120-degree illumination.
• 3M adhesive double side tape on the rear.
• Built-in data signal reshaping circuit.
• High LED density.
• Can be cut or joined at each copper tab.
• IP20 Indoor use only.
• Designed for use with ENTTEC pixel products.
• Maximum 10.08 Watts/Metre.

The black PCB makes it perfectly suited for direct view applications where the black PCB will be lost in the darkness when all pixels are off.

It’s 800Kbps transmission rate and 8-bit colour depth means graphics and animations are played back smoothly and consistently.

At ENTTEC, manufacturing quality and attention to detail is paramount. We always use thicker PCB to offer more durability, better heat dissipation and reduced voltage drop when compared to other LED strips available on the market. This in combination with the 12v operating voltage allows up to a 10m run with a single power injection.

60 RGB LEDs per metre

ENTTEC LED pixel strip boasts 60 colour-calibrated RGB LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.

Extend as you please

Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.

Bright + super-efficient

With a maximum power consumption of only 7.2 watts per metre, and a lumen capacity of 188.2 lumens per metre, this 12V pixel strip provides a bright and efficient package.

Millions of colours

Each pixel can achieve a 24-bit, True Colour display. That’s a whopping 16,777,216 possible colours for each LED chip.

Australian designed for top performance

Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

Black or white

A black printed circuit board is a great way to minimize external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.
