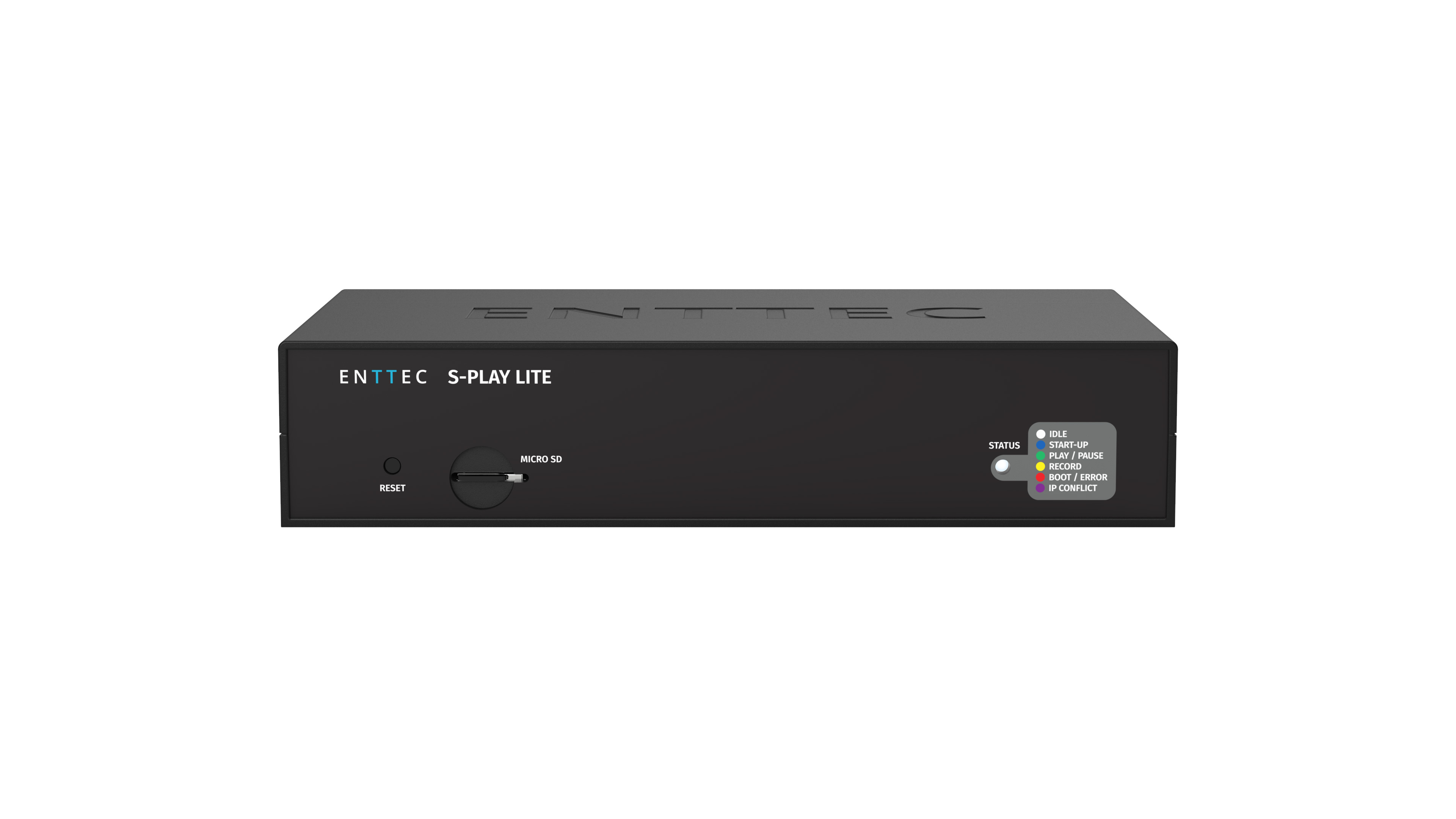

ENTTEC S-Play Lite DMX Recorder / Editor / Playback

About: ENTTEC S-Play Lite DMX Recorder / Editor / Playback

16-universe, all-in-one DMX recorder + smart light show controller.

ENTTEC’s S-PLAY LITE is a revolutionary smart show recorder and playback controller for hassle-free, professional light shows and automated projects.

• Create, record, edit, schedule and play back shows
• Record and play up to 16 Universes of sACN or Art-Net
• Ideal for home automation projects
• User-friendly web interface
• Trigger external events using a wide range of devices
• Expandable storage using the SD card slot

Engineered for projects that require precise automation, the S-PLAY LITE smart light show controller is your complete solution for the creation, recording, scheduling, triggering, and activation of not only light shows but video, machinery, and much more. Playback multiple shows simultaneously and install it almost anywhere with flexible mounting options.

In simple terms, think of it as being like a scene & animated effect creation engine, a 16-universe DMX recorder & playback engine and host for control interfaces that can send multiple AV specific protocols all rolled into one.

You can even create your own custom web interfaces in order to provide your end users with as much or as little control as they need.

With a built-in effects generator and intuitive controls to record, edit, schedule and play scenes, you don’t have to be an experienced lighting designer or systems integrator to conjure up amazing shows using our smart light show controller, but your audience will think you are.

​Features

• Record - Use the web interface to create static scenes, effects & gradients. Alternatively, you can record up to 16 eDMX universes through either sACN, Art-Net, or two physical universes using the S-PLAY’s rear DMX ports.
• Edit - Using the intuitive timeline editor, multiple recordings and scenes can be stitched together whilst adding popular AV specific triggers such as OSC, UDP, contact closure and more, allowing the S-PLAY to integrate into the heart of any control system.
• Play - Play back multiple shows simultaneously using the internal scheduler, your own custom user interface, or when triggered in real time by building automation software (e.g. Control4), iPad Apps, pressure pads, motion detectors, push buttons and more!

Intuitive web interface.

Manage and program your S-PLAY LITE using its intuitive browser interface, with everything you need at your fingertips.

Record and edit up to 100 static, dynamic and effect cues, as well as 100 playlists using the intuitive timeline editor.

With support for 150 events, assign remote triggers and map different streams and protocols to different ports.

Even create a custom interface to give the end-user only the simple the options they need at hand.

Specifications

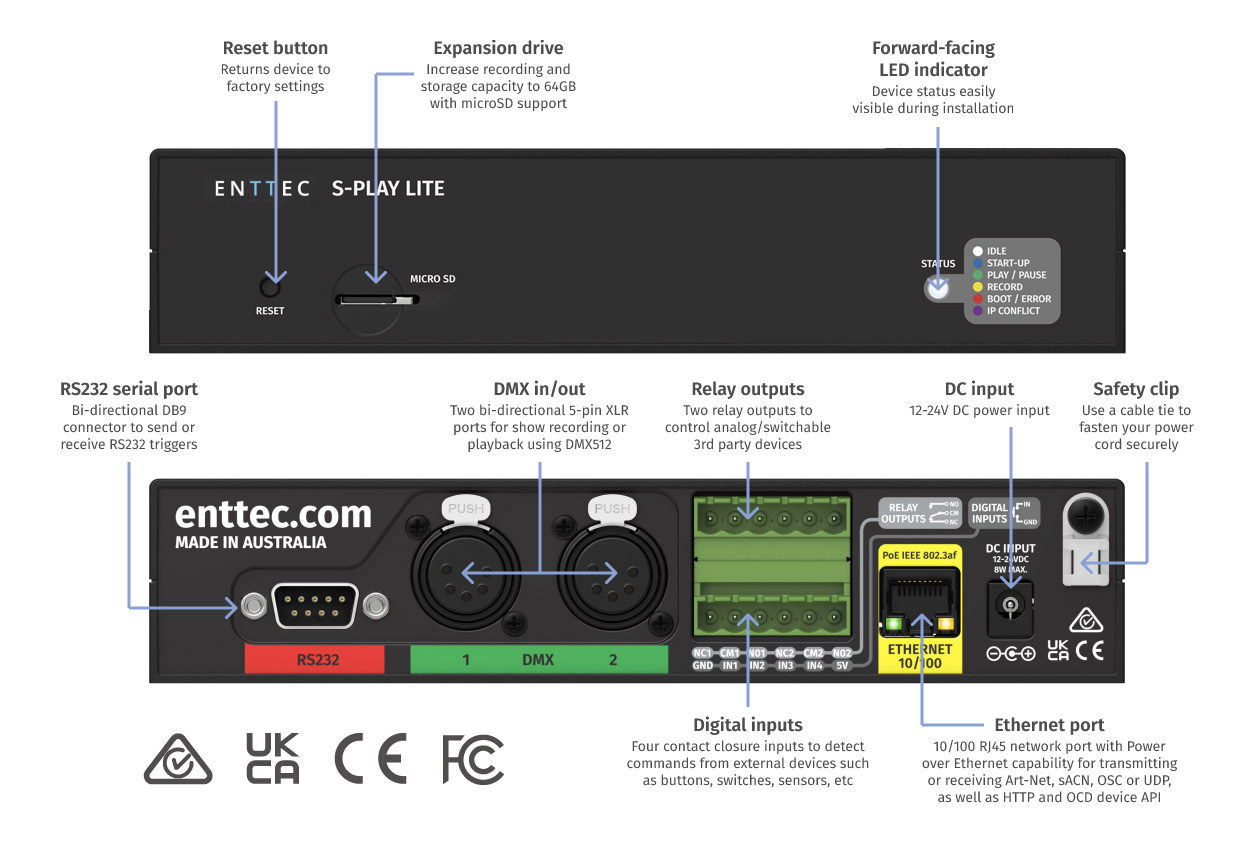

• Hardware
  • Input voltage 12V DC to 24V DC
  • Power input DC jack (12V PSU & international plugs included)
  • Max power draw 8W
  • Ethernet port / PoE RJ45 / PoE IEEE 802.3af

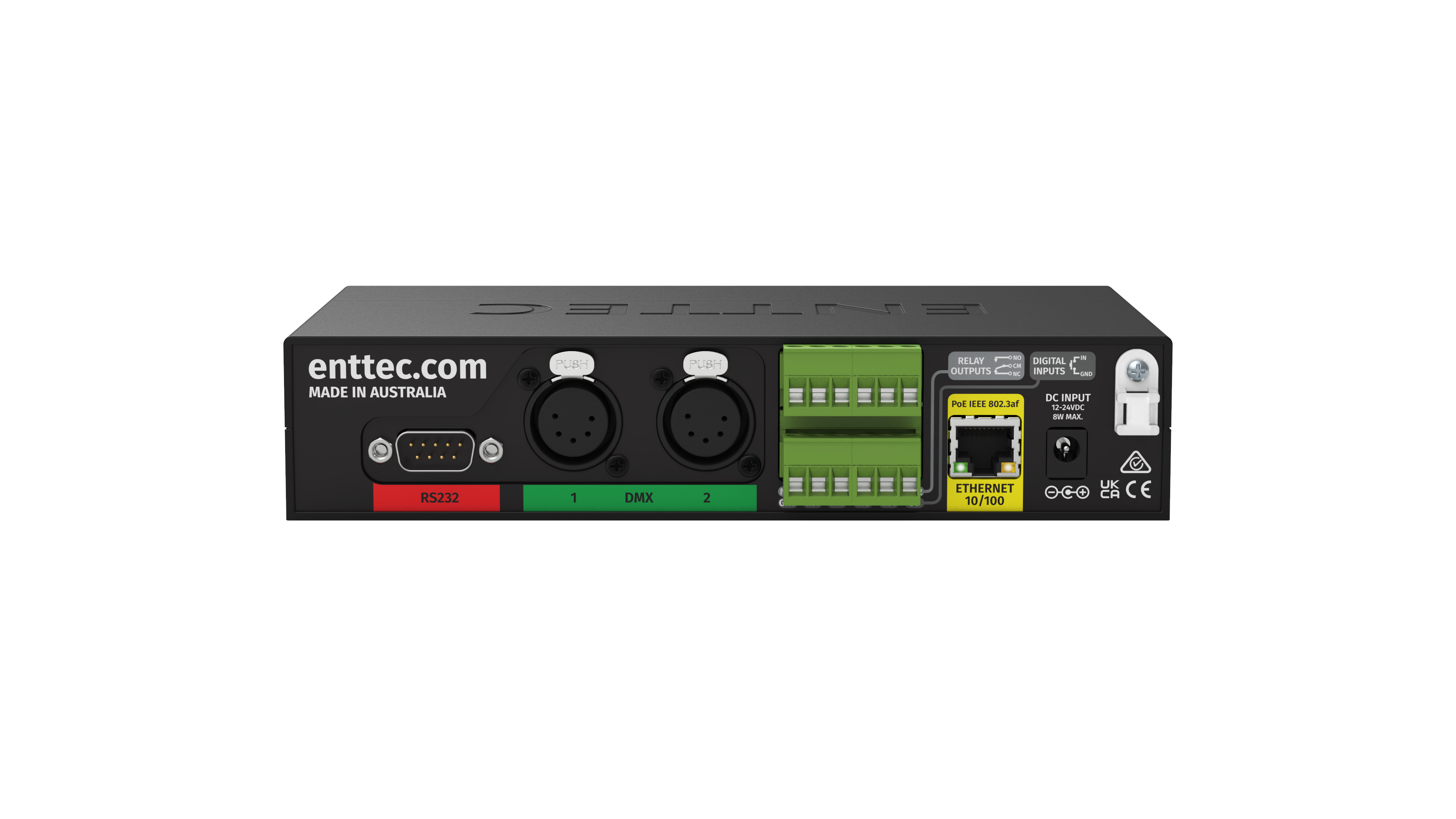

  • DMX port 2 x 5-pin XLR (female)
  • Digital input 4 digital inputs + 1 GND + 1 5V (6-pin screw terminal)
  • Relay 2 x relay 6-pin screw terminal (max limits, 50V DC or 60W)
  • Internal show storage capacity 8GB (~20 hours of 16 universes at 40fps)
  • Expandable storage / external memory Micro SD card
  • LED indicators Yes
  • Factory reset Web interface
  • Mounting Rack, surface & TS35 DIN rail mountable (ears, clips & screws included)
  • IP rating IP20
  • Environmental operating temperature 0°C to 50°C / 32°F to 122°F
  • Environmental operating humidity 0 to 95% (non-condensing)
  • Cooling method Convection
  • Body material ABS plastic & anodized aluminum
  • Unit dimensions 200mm x 120mm x 42 mm
  • Unit weight 0.83kg / 1.82lbs
  • Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
  • Warranty 3-year return to base manufacturer warranty
• Software
  • DMX universe playback 2U (1024 channels of USITT DMX512-A)
  • Art-Net / sACN universe playback 16U (8,192 channels)
  • Max refresh rate (FPS) Art-Net & sACN: 60 / USITT DMX512-A: 40
  • Max playlist count 100
  • Max cue track per playlist 4
  • Max Cues (including Static, Dynamic and Effect) 100
  • Max Triggers 150
  • Max Events 150
  • Max custom interface 5
  • OSC API Yes
  • HTTP API Yes
  • Scheduler Yes
  • Remote access No
  • Multi-sync No
