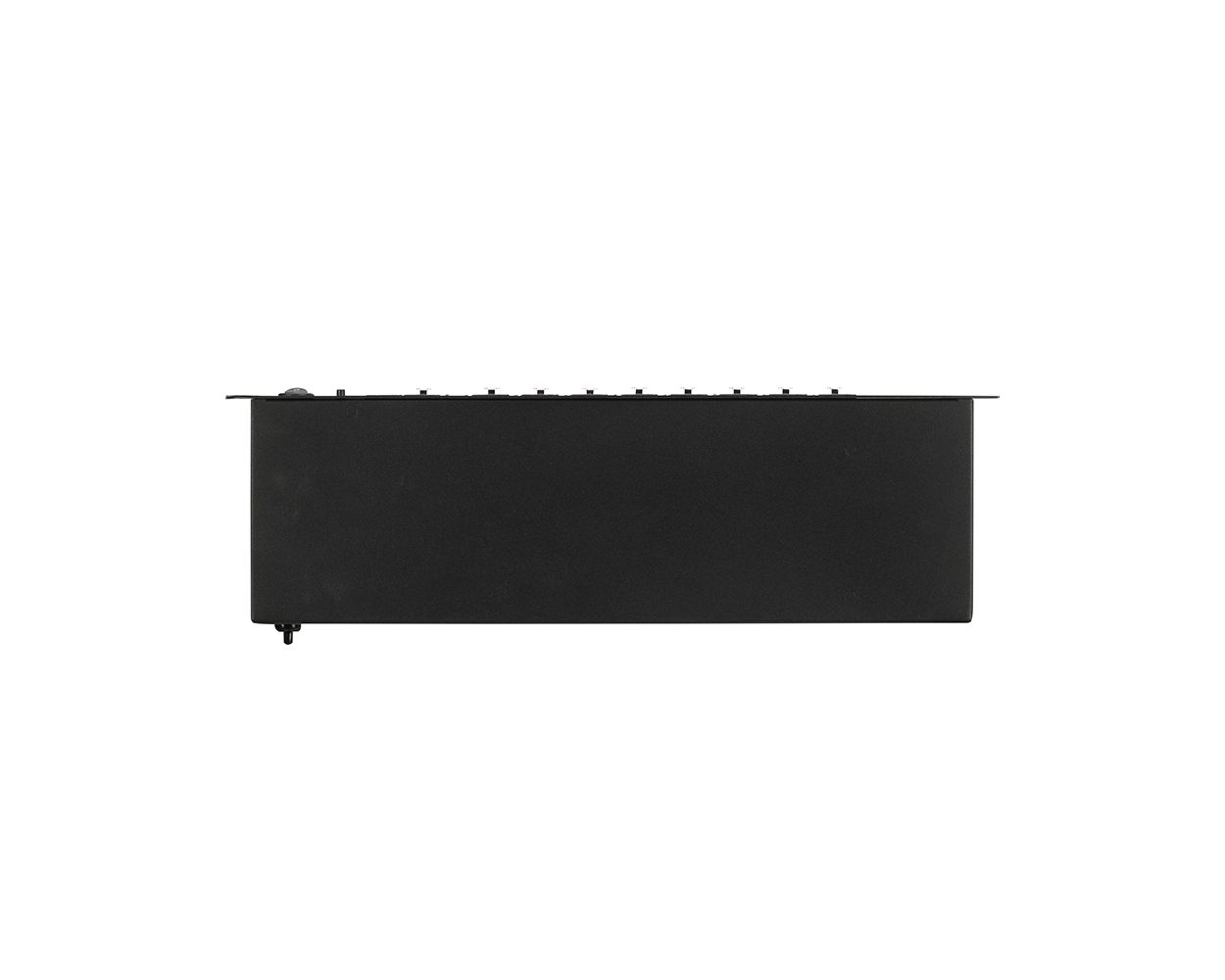

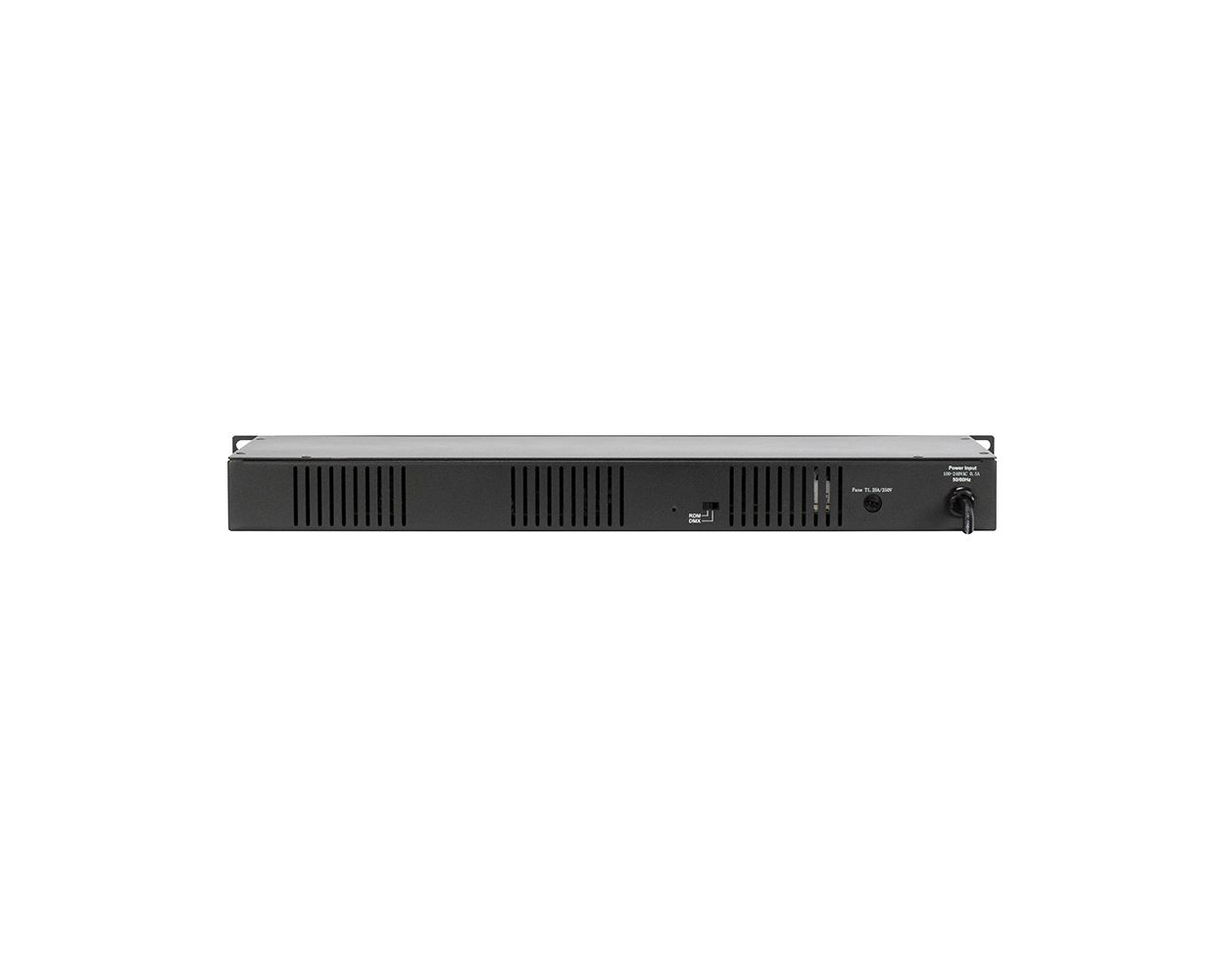

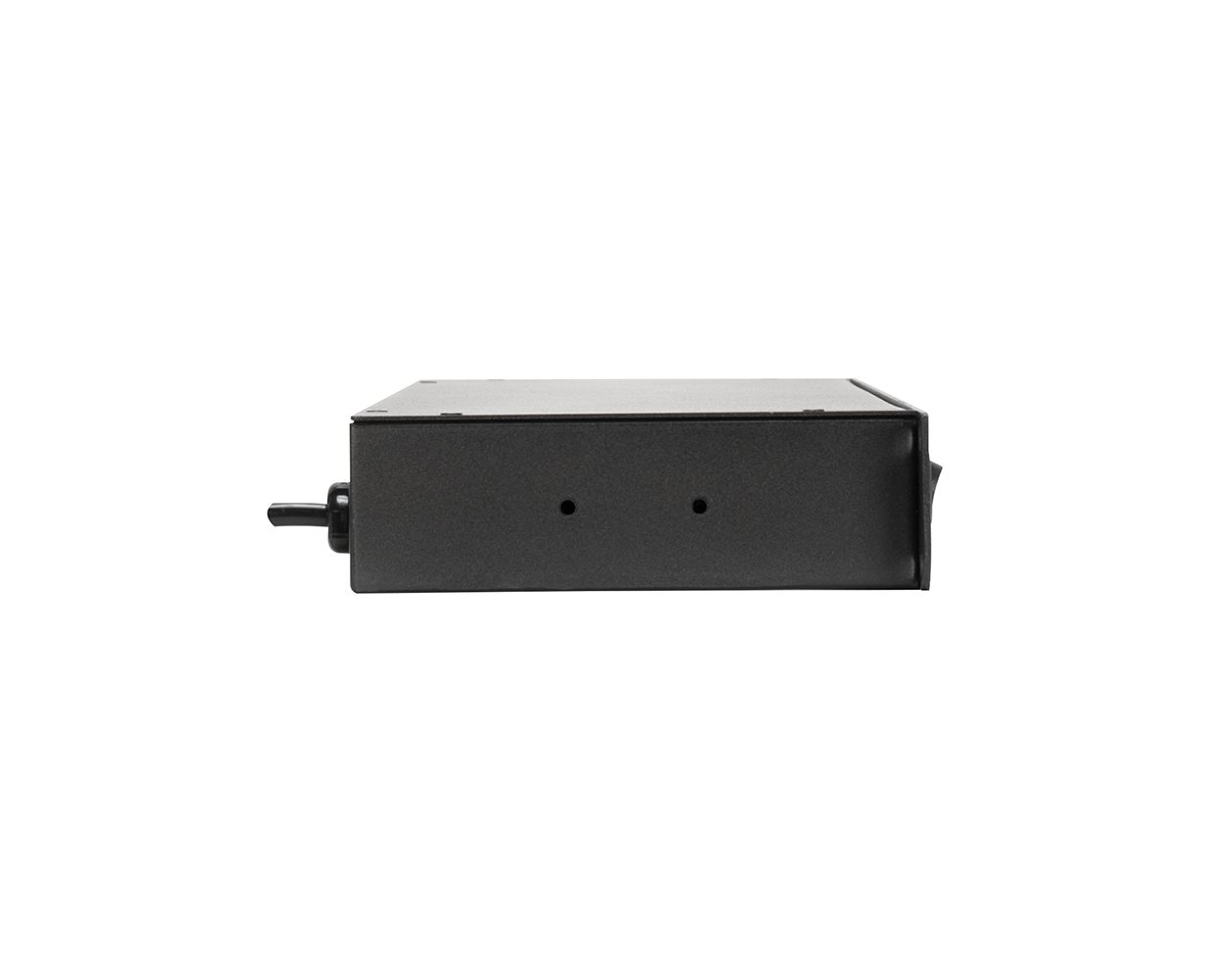

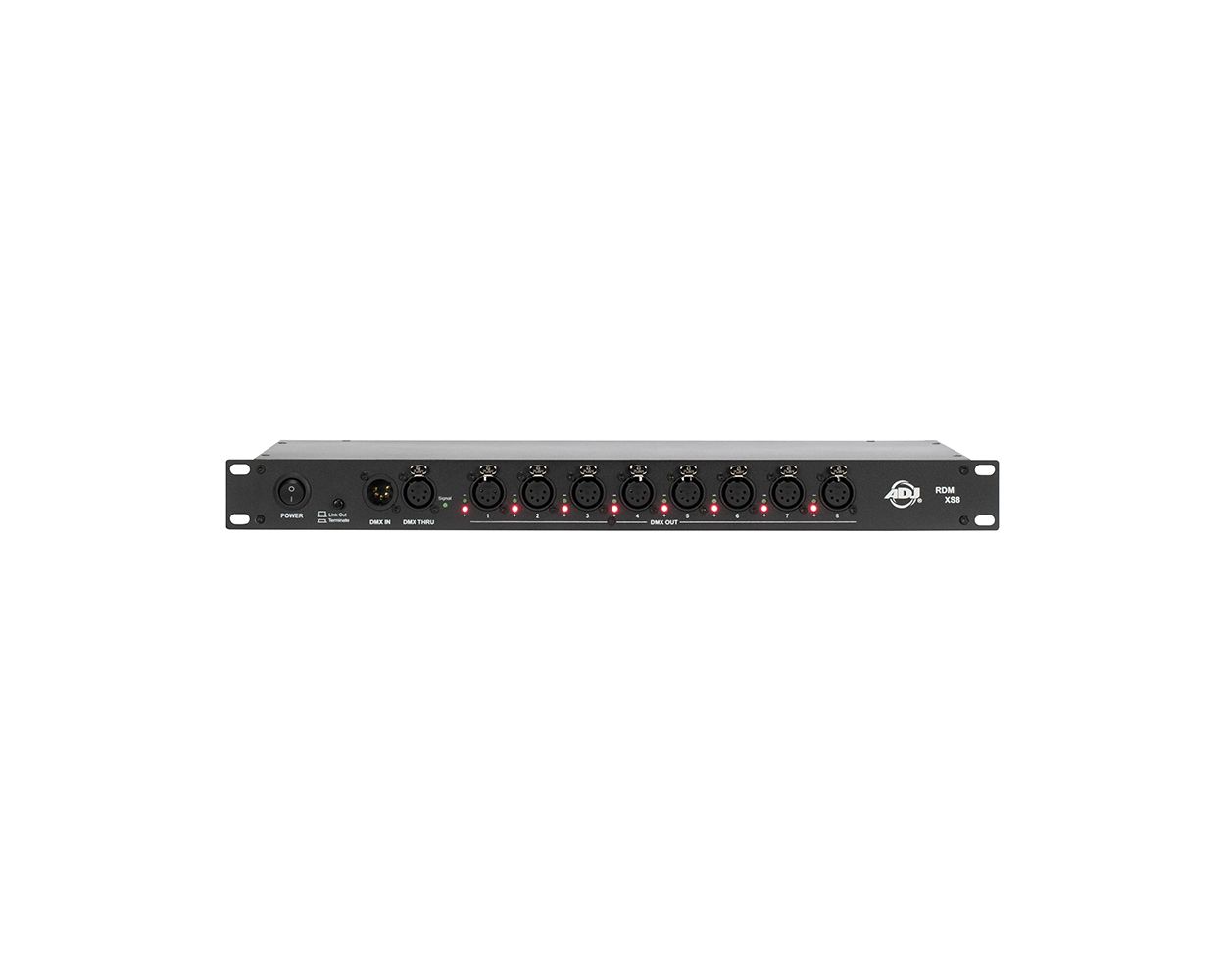

ADJ RDM-XS8 19-Inch Rack Mount, 8-Way DMX & RDM Data Splitter
Model: RDM-XS8
About: ADJ RDM-XS8 19-Inch Rack Mount, 8-Way DMX & RDM Data Splitter
The ADJ Lighting RDM XS8 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet. Its slim one rack configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, 8x indoor 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
Specifications
- Protocols
- DMX512
- RDM
- Physical
- 19" Rack Mount
- 1x Indoor 5pin XLR Input
- 1x Indoor 5pin XLR Thru
- 8x Indoor 5pin XLR Outputs
- Link Out Termination Switch
- DMX / RDM Protocol Switch
- Power
- AC Input: 100-230V 50/60Hz
- Power Consumption: 3.1W @ 120V and 3.3W @ 230V
- Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
- Thermal
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Humidity: <75%
- Storage Temperature: 77°F (25°C)
- Certifications & IP Rating
- CE
- cETLus (Pending)
- FCC
- IP20
- Dimensions & Weight
- Length: 6" (152.4mm)
- Width: 19" (482mm)
- Height: 1.73" (44mm)
- Weight: 4.87lbs. (2.21kg)
