ADJ Hydro IP Tester Mobile Service Tool

About: ADJ Hydro IP Tester Mobile Service Tool

ADJ's Hydro IP Tester is a mobile service tool specifically designed to assess the integrity of compatible IP-rated lighting fixtures, including ADJ's Hydro series fixtures. This versatile device is capable of both vacuuming and detecting pressure leaks, making it ideal for use after a fixture has been opened for tasks such as lamp replacement, gobo replacement, or regular maintenance.

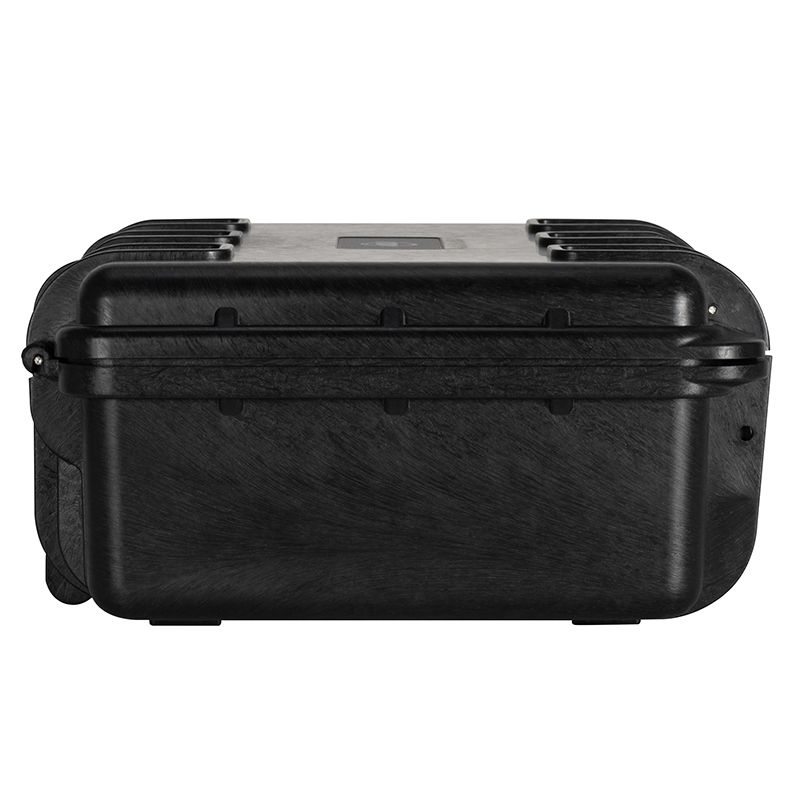

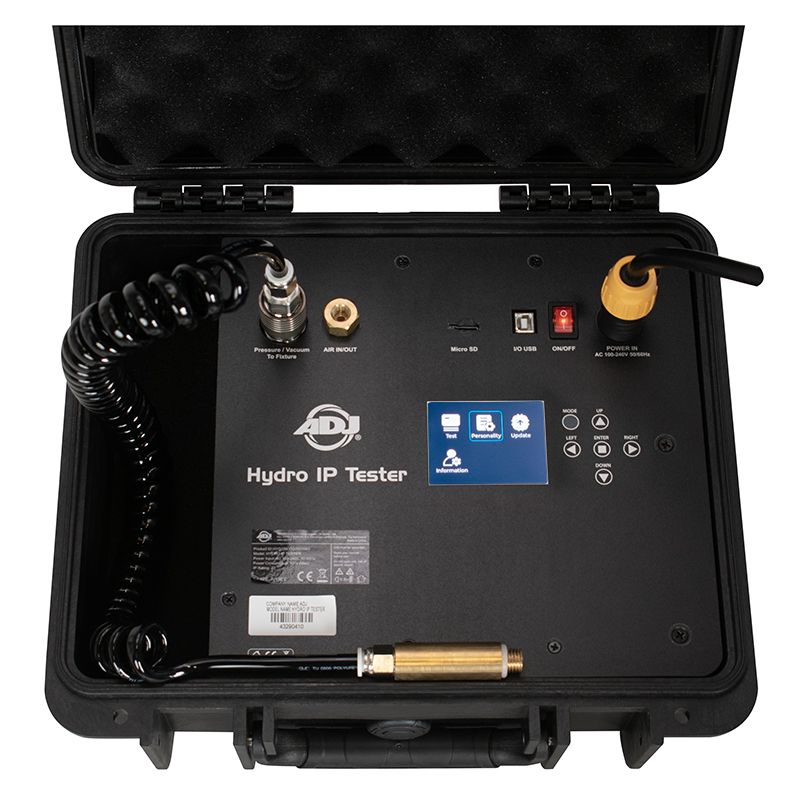

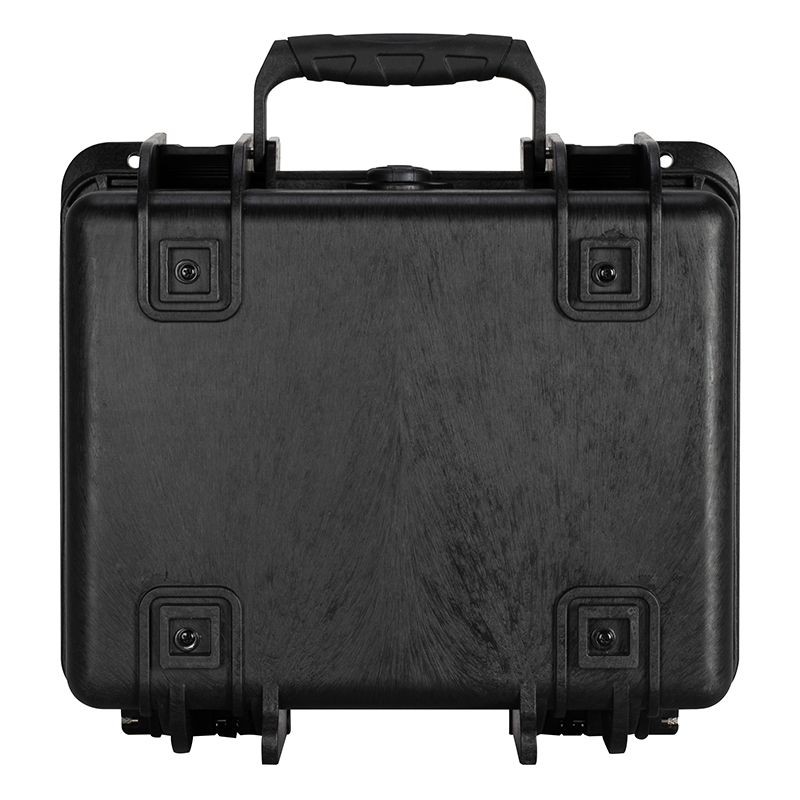

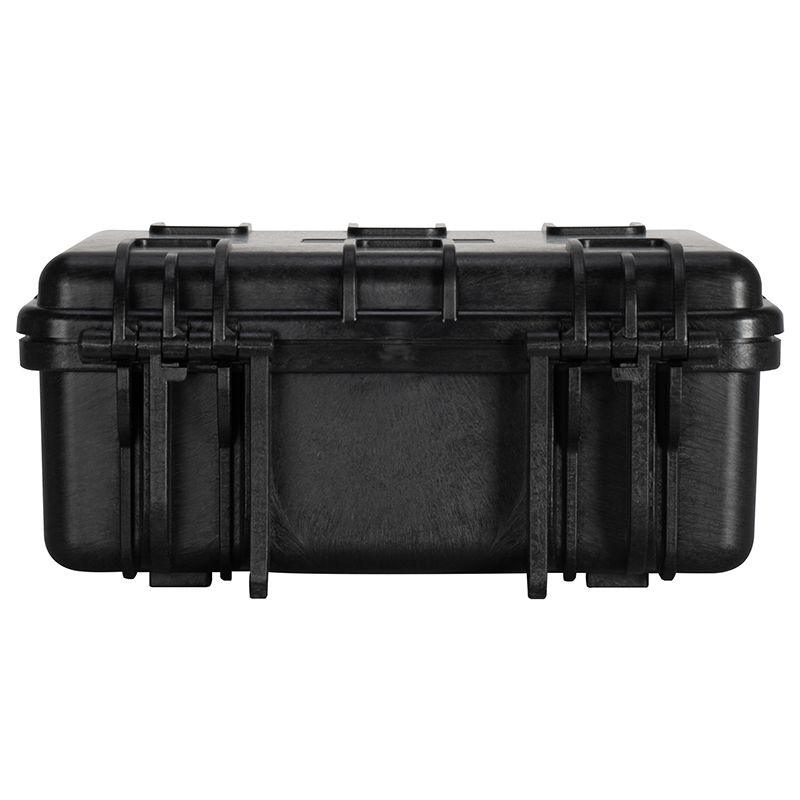

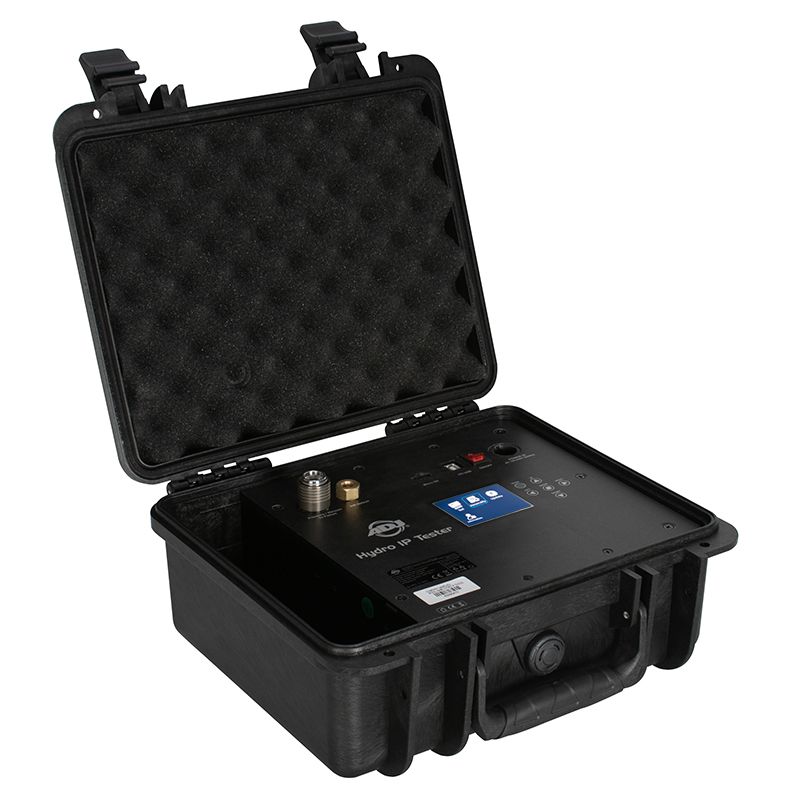

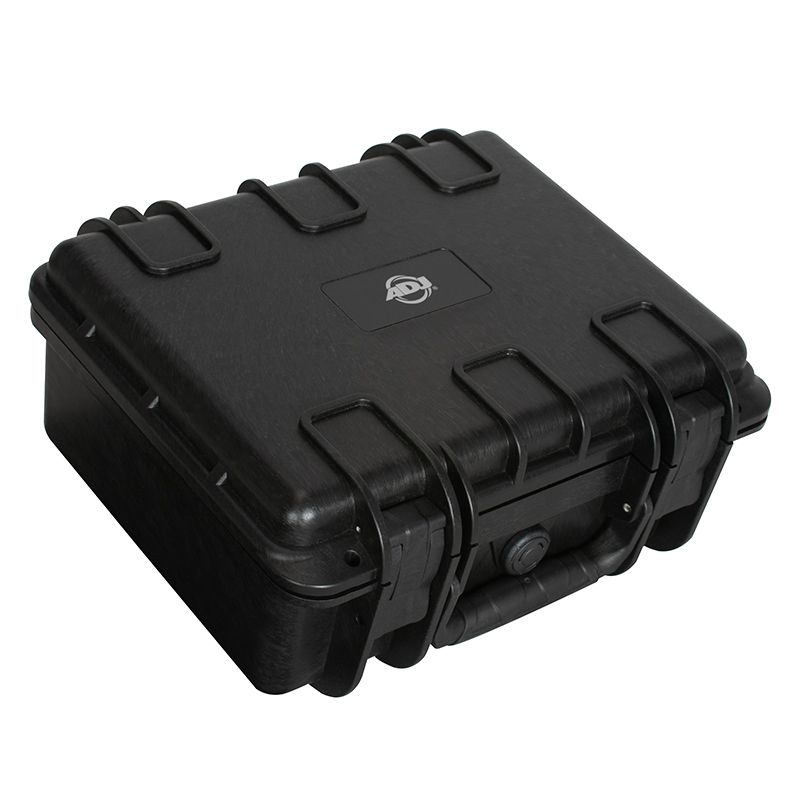

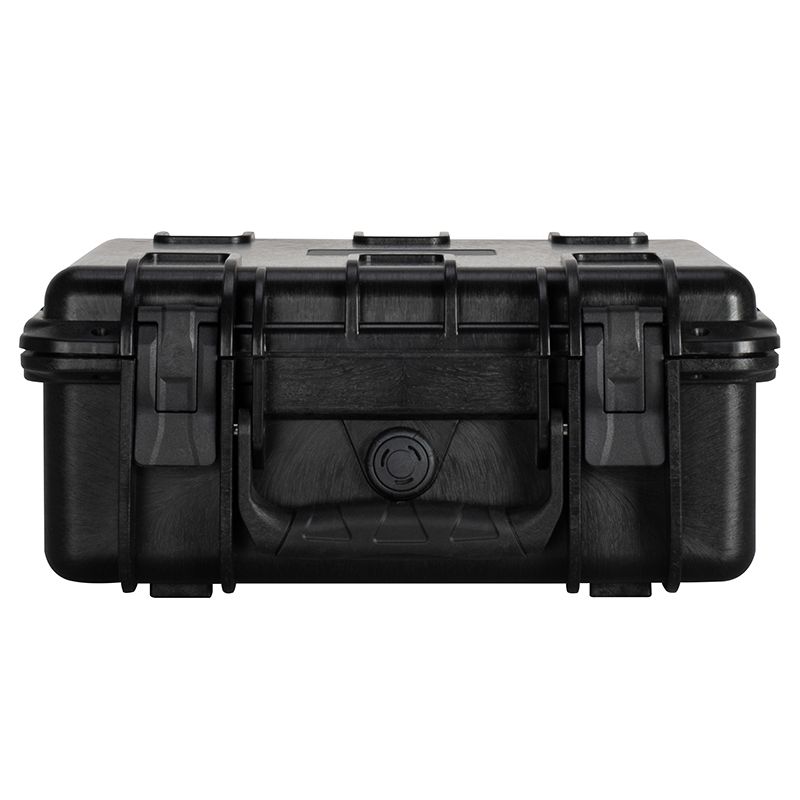

The Hydro IP Tester boasts several impressive features. It comes in a durable flight case that is easy to transport. The user-friendly interface features a 6-button LCD control menu display, allowing for effortless navigation. Progress bars on the display indicate the remaining test time, ensuring efficient testing. The Micro SD card slot provides a convenient means to update the testers software.

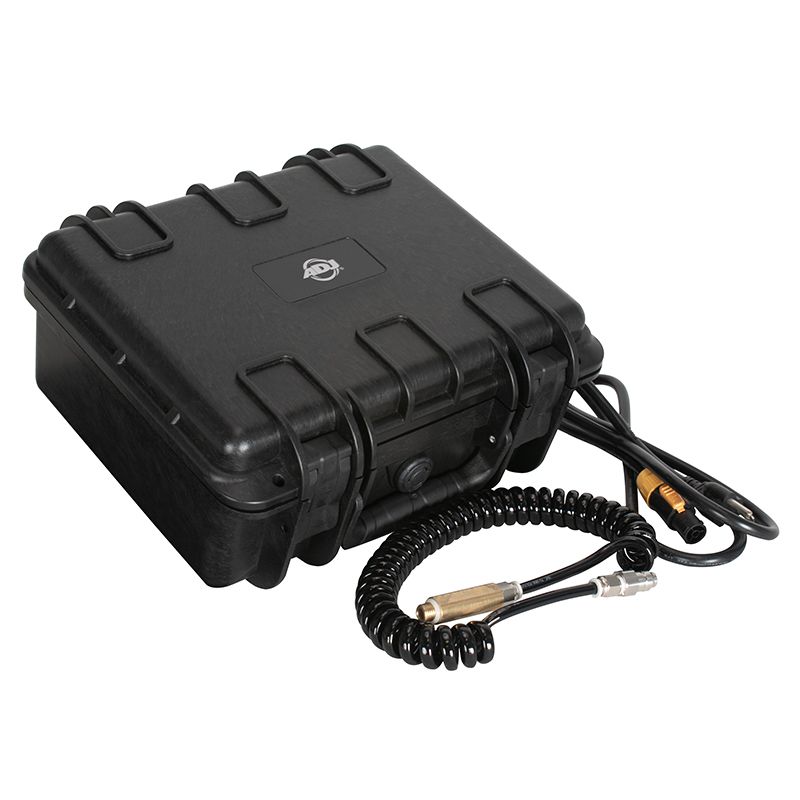

Included with the Hydro IP Tester are a 3-5 ft (0.9-1.5m) coiled air hose with a quick-connect fitting, a threaded M12 brass nozzle with a push-to-connect fitting, two M12 x 1.5 nylon bolts, a 6ft (1.8m) USB cable, a 5ft (1.5m) IP65 Locking Power Cable, a Micro SD card, and a durable, easy-to-carry case.

Features

• Mobile IP Fixture Vacuum and Pressure Tester
• Compatible with any IP Fixture such as ADJ's Hydro Series
• Internal Profiles Storage
• Manual and Auto Testing Modes
• Easy to navigate LCD Control Menu Display
• Micro SD Card Slot for updating Hydro IP Tester Device

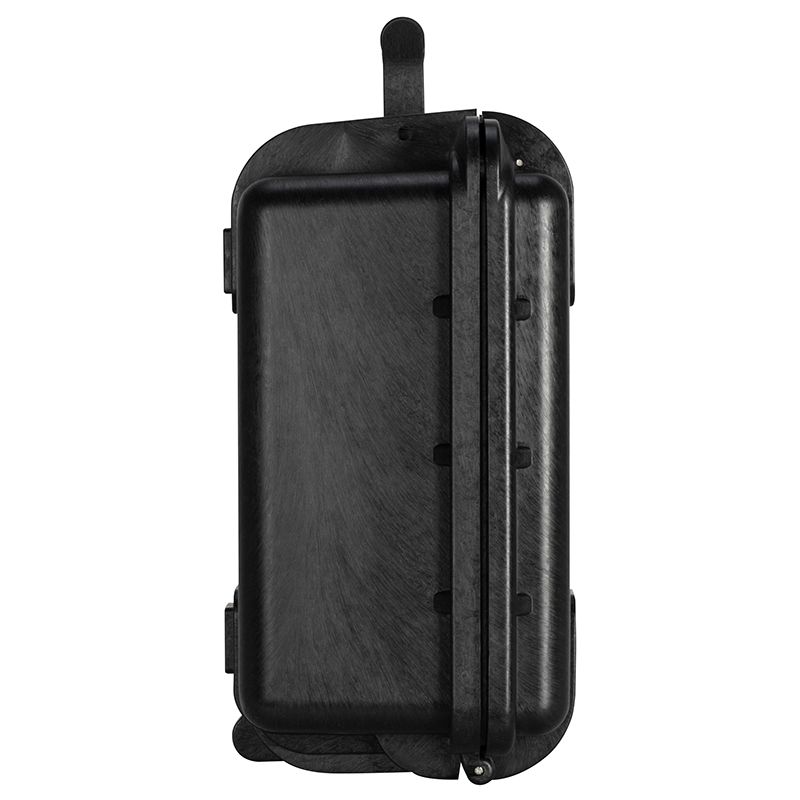

• Easy To Carry Rugged Case

Specifications

• Control / Connections
  • LCD Control Menu Display
  • Air In/Out Vent
  • Quick-Release Air Hose Fitting
  • Micro SD Card Slot
  • USB B Port
  • IP65 Power In
• ​Size / Weight
  • Length: 16.5” (419.1mm)
  • Width: 6.5” (165.1mm)
  • Vertical Height: 14.25” (362mm)
  • Weight: 15.4 lbs. (7.0kg)
• Electrical
  • AC 100-240V - 50/60Hz
  • 40W Max Power Consumption

What's Included

• 3-5ft (0.9-1.8m) Air Hose with Quick-Connect Fitting
• M12 Threaded Brass Nozzle with Push-to-Connect Fitting
• (x2) M12 x 1.5 Orange Colored Nylon Bolt
• 6ft (1.8m) USB Cable
• 5ft (1.5m) IP65 Power Cable
• Micro SD Card (4GB min)
