Lilliput K2 Touchscreen PTZ Camera Controller

About: Lilliput K2 Touchscreen PTZ Camera Controller

The Lilliput K2 Touchscreen PTZ Camera Controller is Lilliput's multi-featured PTZ Controller line. Designed to work with a host of control schemas and protocols, the new controls and features which the K2 system sports are numerous.

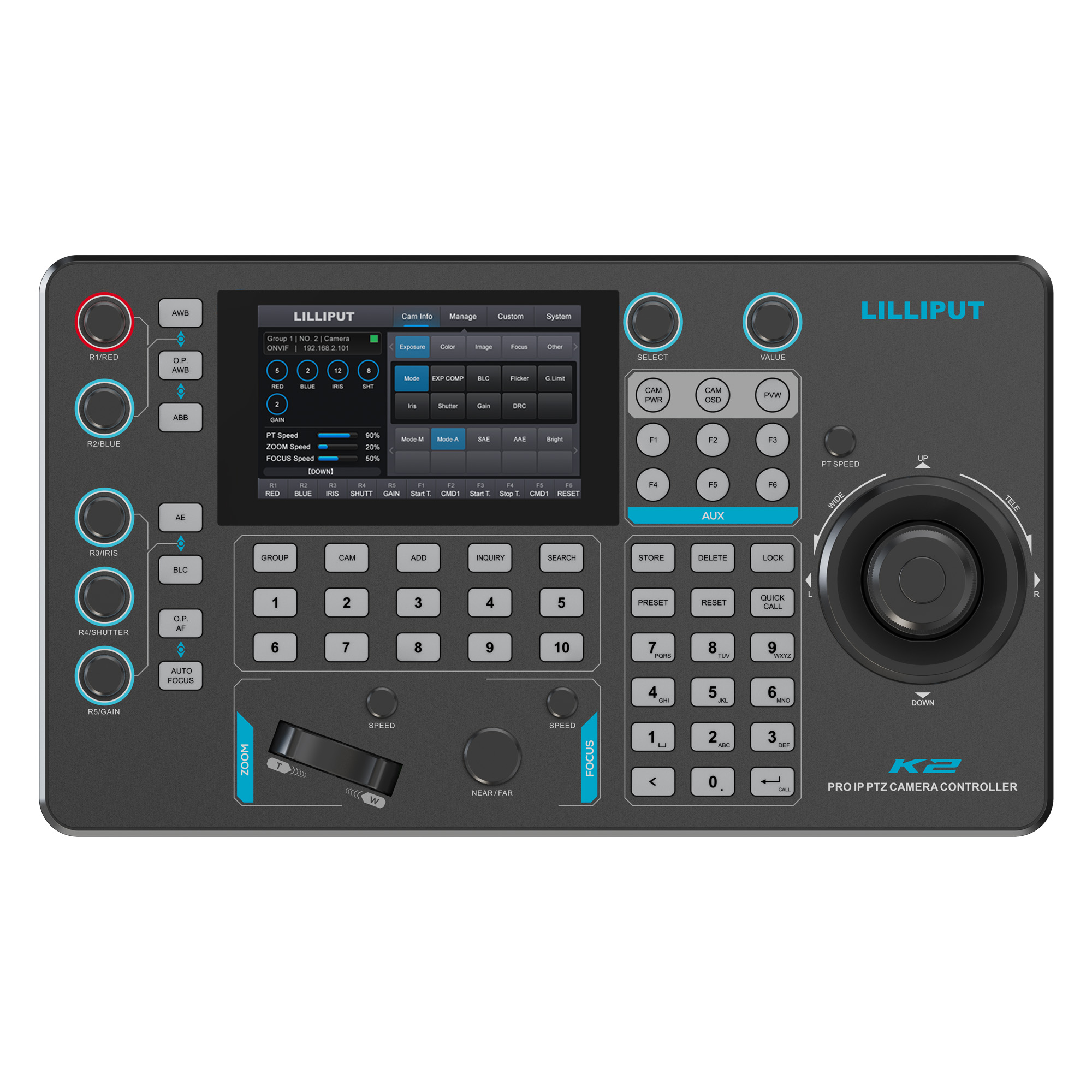

• 5-inch touch screen controls, and a 4D joystick make the K2 easy to operate
• Supports real-time preview camera in 5″ screen
• Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols
• Control the system via IP, RS-422, RS-485 and RS-232 interface
• Automatically assigns IP addresses to devices for quick setup
• Manage up to 100x independent IP cameras on a single network
• 6 user-assignable buttons for quick access to functions
• Quickly control exposure, iris, focus, pan, tilt and other functions
• Can support PoE (Power over Ethernet) and 12V DC Power Supply inputs
• Optional NDI version available

Specifications

• CONNECTIONS

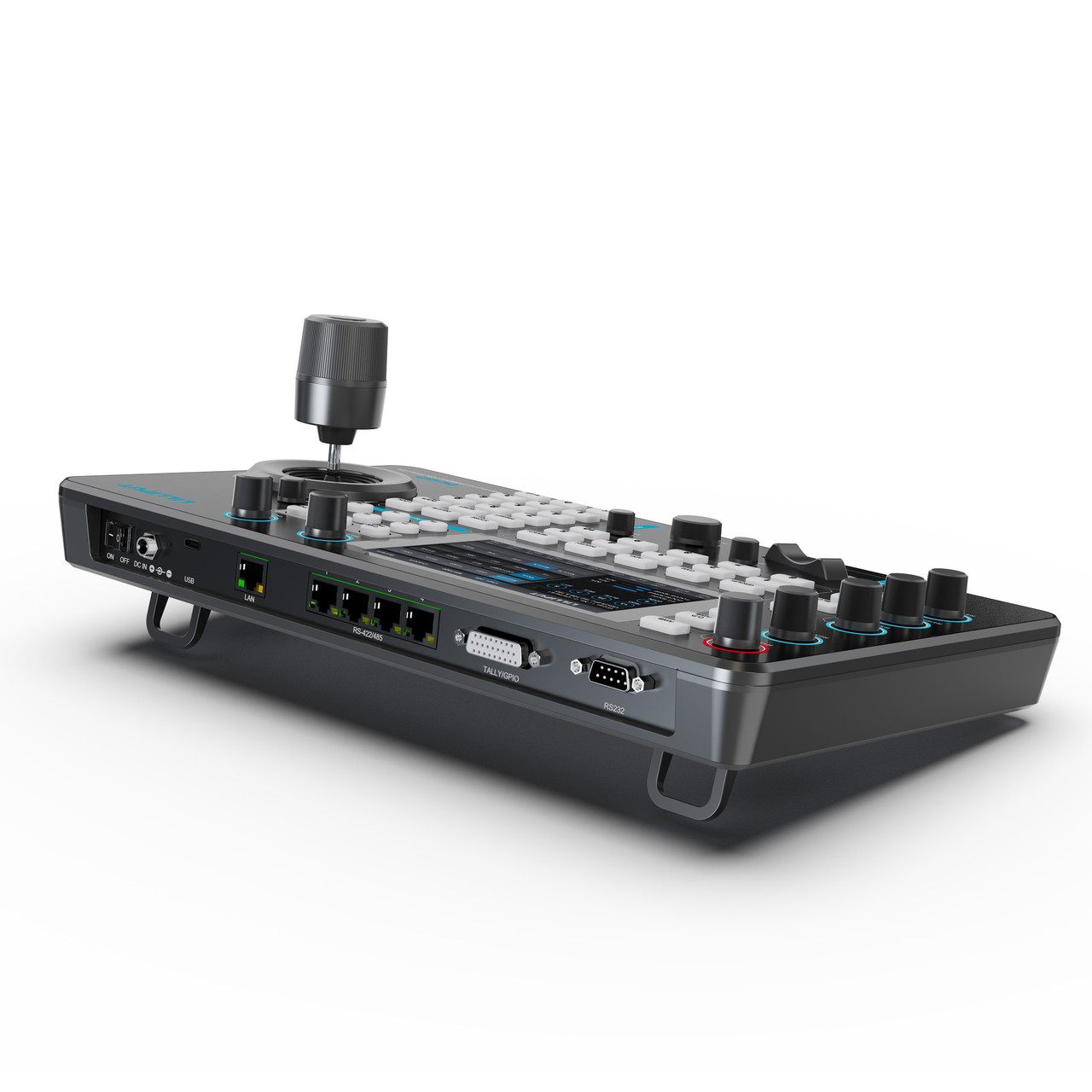

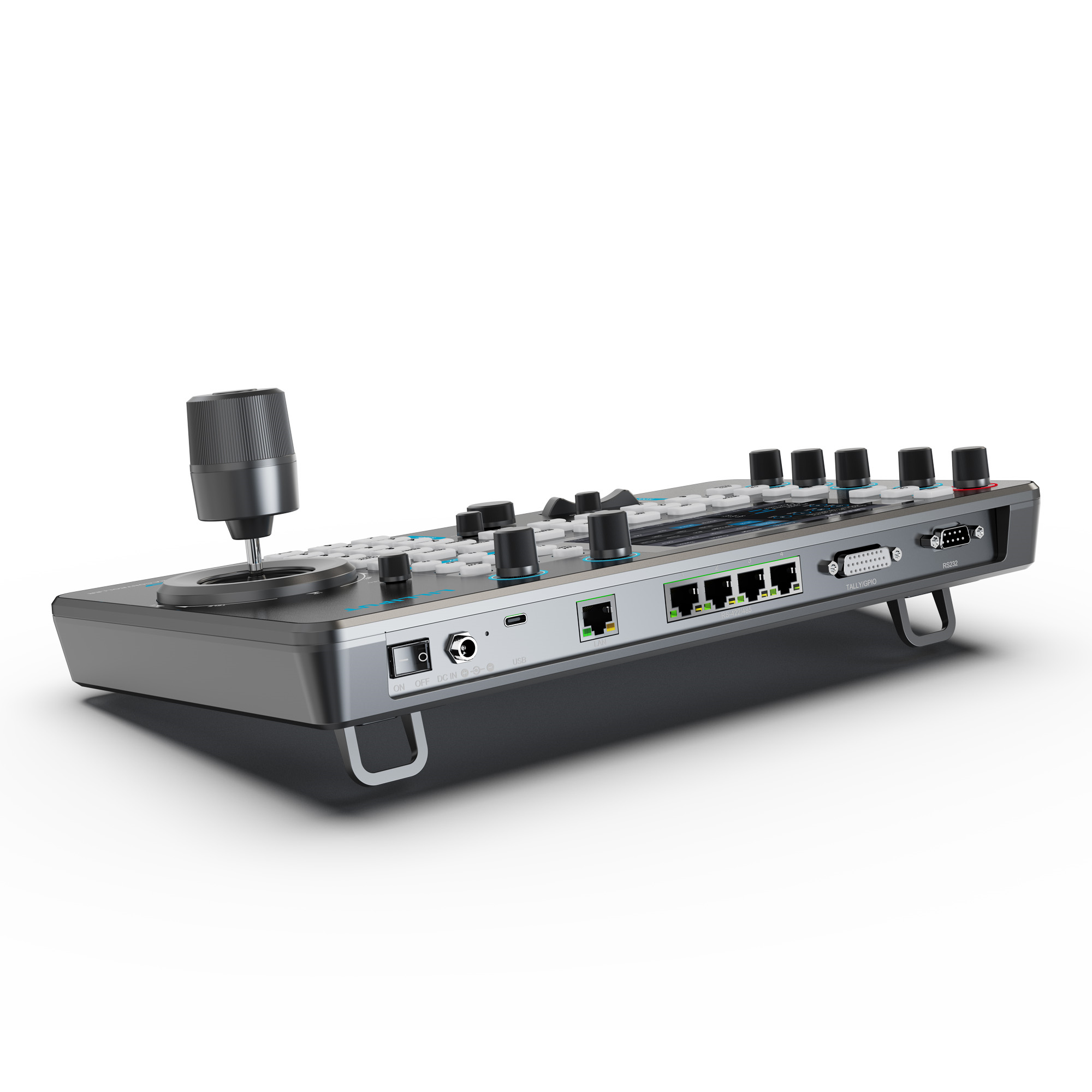

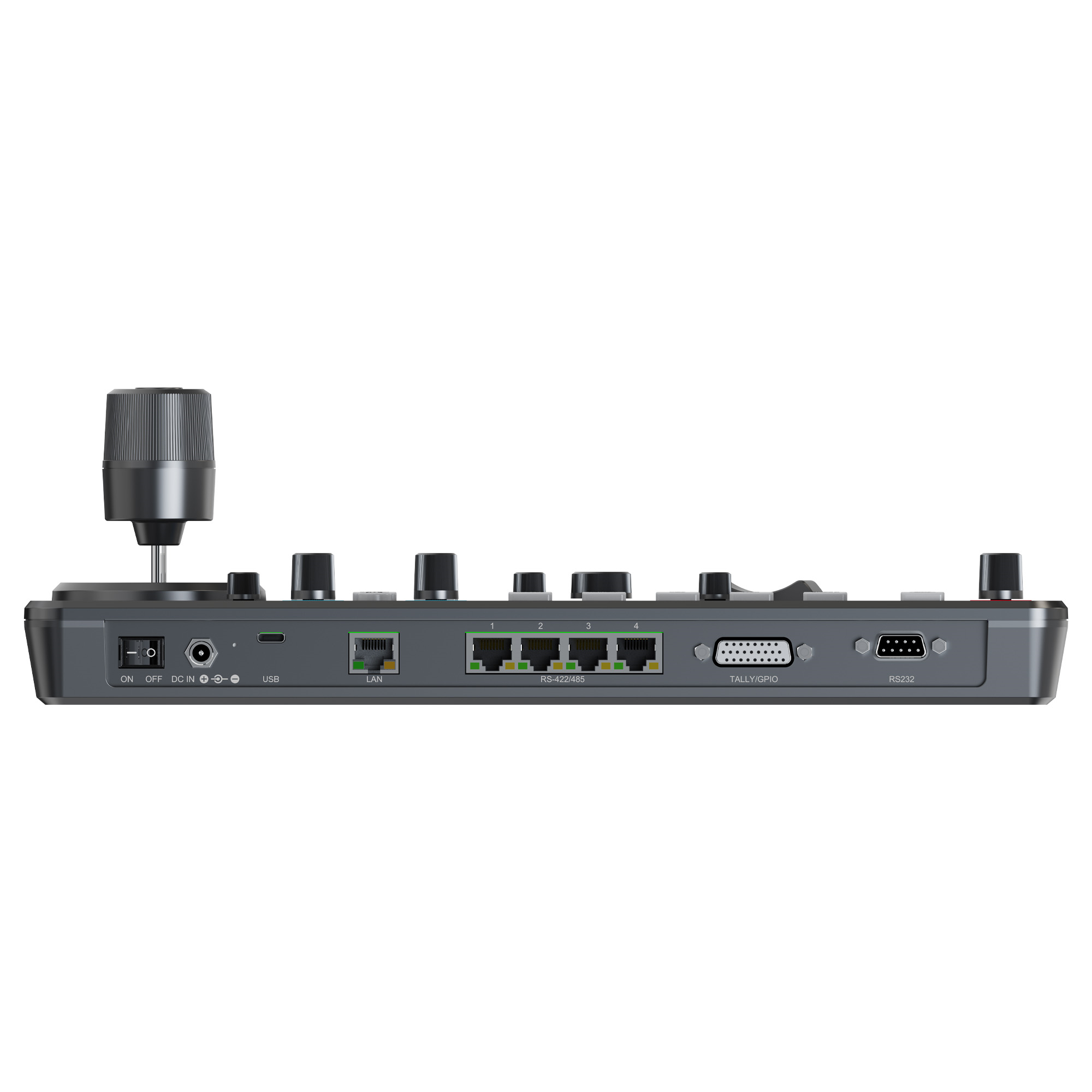

  • Interfaces
    • 1x IP(RJ45)
    • 1x RS-232
    • 4x RS-485/RS-422
    • 1x TALLY
    • 1x USB-C (For upgrade)
  • Control Protocol: ONVIF, VISCA- IP
  • Serial Protocol: PELCO-D, PELCO-P, VISCA
  • Serial Baud Rate: 2400, 4800, 9600, 19200, 38400, 115200 bps
  • LAN port standard: 1x 100M (PoE/PoE+: IEEE802.3 af/at)
• USER
  • Display: 5 Inch Touch Screen
• INTERFACES
  • Knob: Quickly control iris, shutter speed, gain, auto exposure, white balance, etc.
  • Joystick: Pan/Tilt/Zoom
  • Camera Group: 10 (Each group connect up to 10 cameras)
  • Camera Address: Up to 100
  • Camera Preset: Up to 255
• POWER
  • Power: PoE+ / DC 7~24V
  • Power Consumption: PoE+: < 8W, DC: < 8W
• ENVIRONMENT
  • Working Temperature: -20°C~60°C
  • Storage Temperature: -20°C~70°C

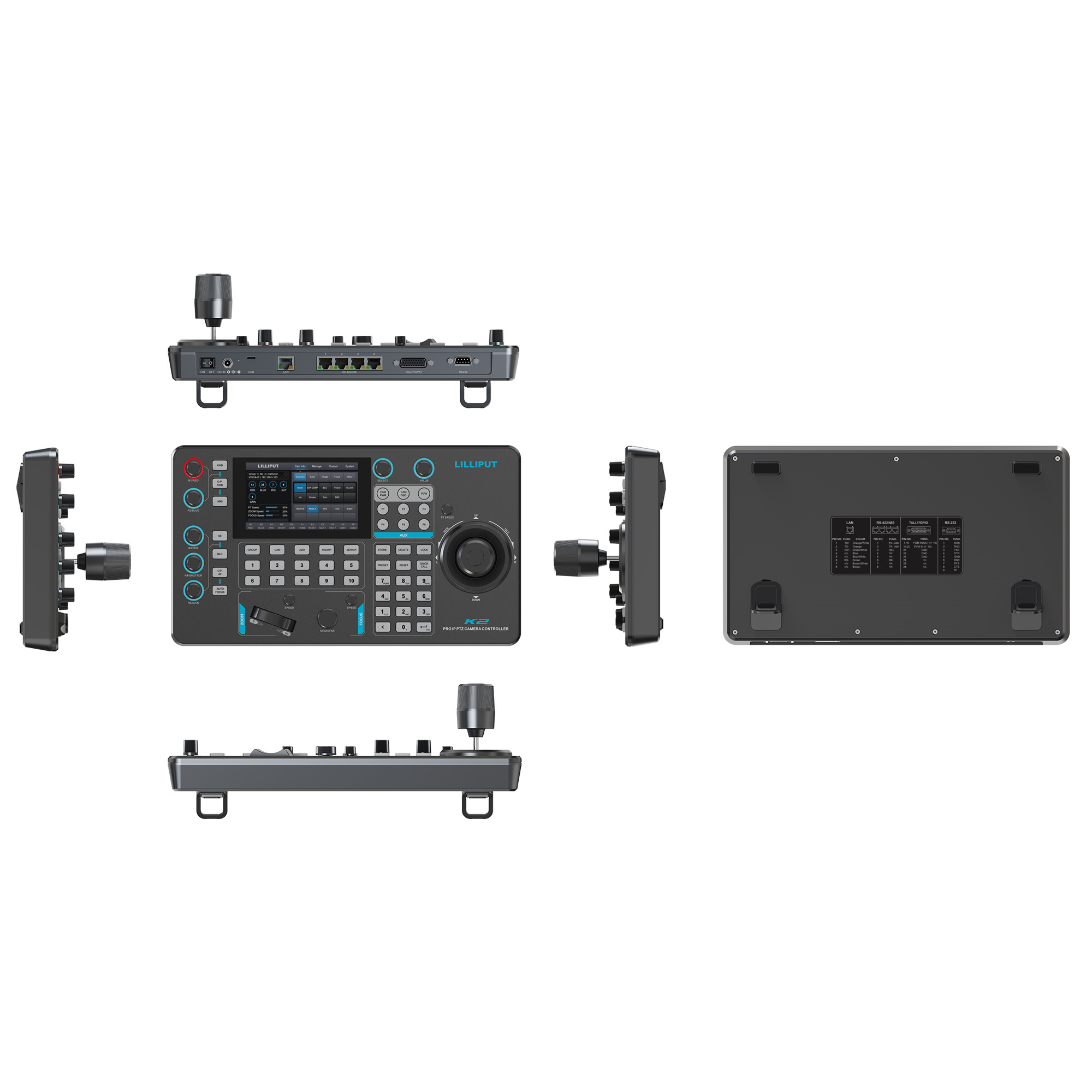

• PHYSICAL
  • Dimension(LxWxH): 13.39 x 7.68 x 1.95 inch (340 x 195 x 49.5mm)
    • with joystick: 13.39 x 7.68 x 4.34 inch (340 x 195 x 110.2mm)
  • Weight: 3.81 lbs (1730g)
