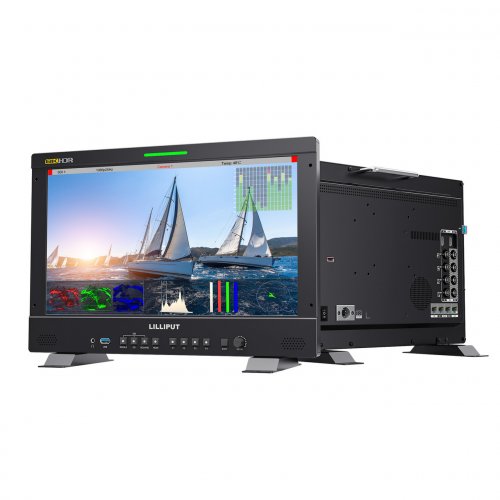

Lilliput 15.6-inch 8K 12G-SDI Production Studio Monitor (Gold Mount)

About: Lilliput 15.6-inch 8K 12G-SDI Production Studio Monitor (Gold Mount)

The Lilliput Q15-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.

With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q18-8K packs massive value monitoring into an easy-to-operate system.

Specifications

• Display
  • Panel - 15.6″
  • Physical Resolution - 3840x2160
  • Aspect Ratio - 16:9
  • Brightness - 600 cd/m²
  • Contrast - 1700：1
  • Viewing Angle - 170°/170°（H/V)
  • HDR - ST2084 300/1000/10000/HLG
  • Supported Log Formats - SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
  • Look up Table (LUT) support - 3D LUT (.cube format)
  • Technology - Calibration to Rec.709 with optional calibration unit
• Video Input
  • SDI - 4×12G (Supported 8K-SDI Formats Quad Link)
  • SFP - 1×12G SFP+(Fiber module for optional)
  • HDMI - 1×HDMI 2.0
• Video Loop Output
  • SDI - 4×12G (Supported 8K-SDI Formats Quad Link)
  • HDMI - 1×HDMI 2.0
• Supported Formats
  • SDI - 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • SFP - 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • HDMI - 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
• Audio In/Out (48kHz PCM Audio)
  • SDI - 16ch 48kHz 24-bit
  • HDMI - 8ch 24-bit
  • Ear Jack - 3.5mm
  • Built-in Speakers - 2
• Remote Control
  • RS422 - In/out
  • GPI - 1
  • LAN - 1
• Power
  • Input Voltage - DC 12-24V
  • Power Consumption - ≤37W (15V)
  • Compatible Batteries - Anton Bauer Mount
  • Input Voltage (battery) - 14.8V nominal
• Environment
  • Operating Temperature - 0℃~50℃
  • Storage Temperature - -20℃~60℃
• Size
  • Dimension (LxWxD) - 393mm × 267mm × 41.4mm
  • Weight - 2.9kg
