Lilliput HT10S 10.1in 1500nits 3G-SDI Touch Camera Control Monitor
Model: HT10S
About: Lilliput HT10S 10.1in 1500nits 3G-SDI Touch Camera Control Monitor

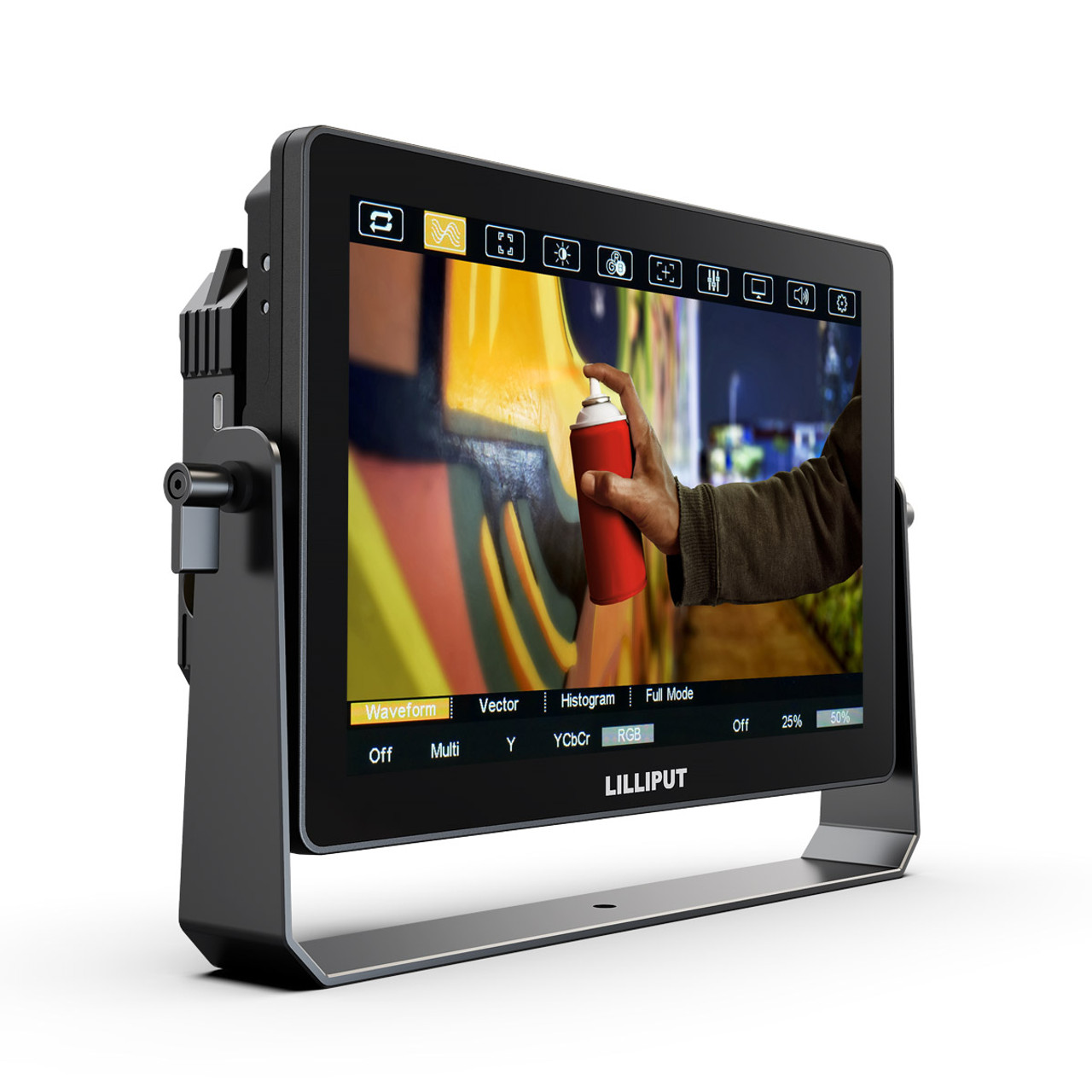

HT10S is a precision on-camera monitor came an amazing 1500 nits Ultra High Brightness and touch LCD screen which capable of controlling video camera menu on set. Specifically for photography and film maker, especially for outdoor video and film shooting.
- 1500nits, Auto Dimming
- 50000h LED Life
- HDR 3D-LUT
- LANC cable control
- Touch Screen

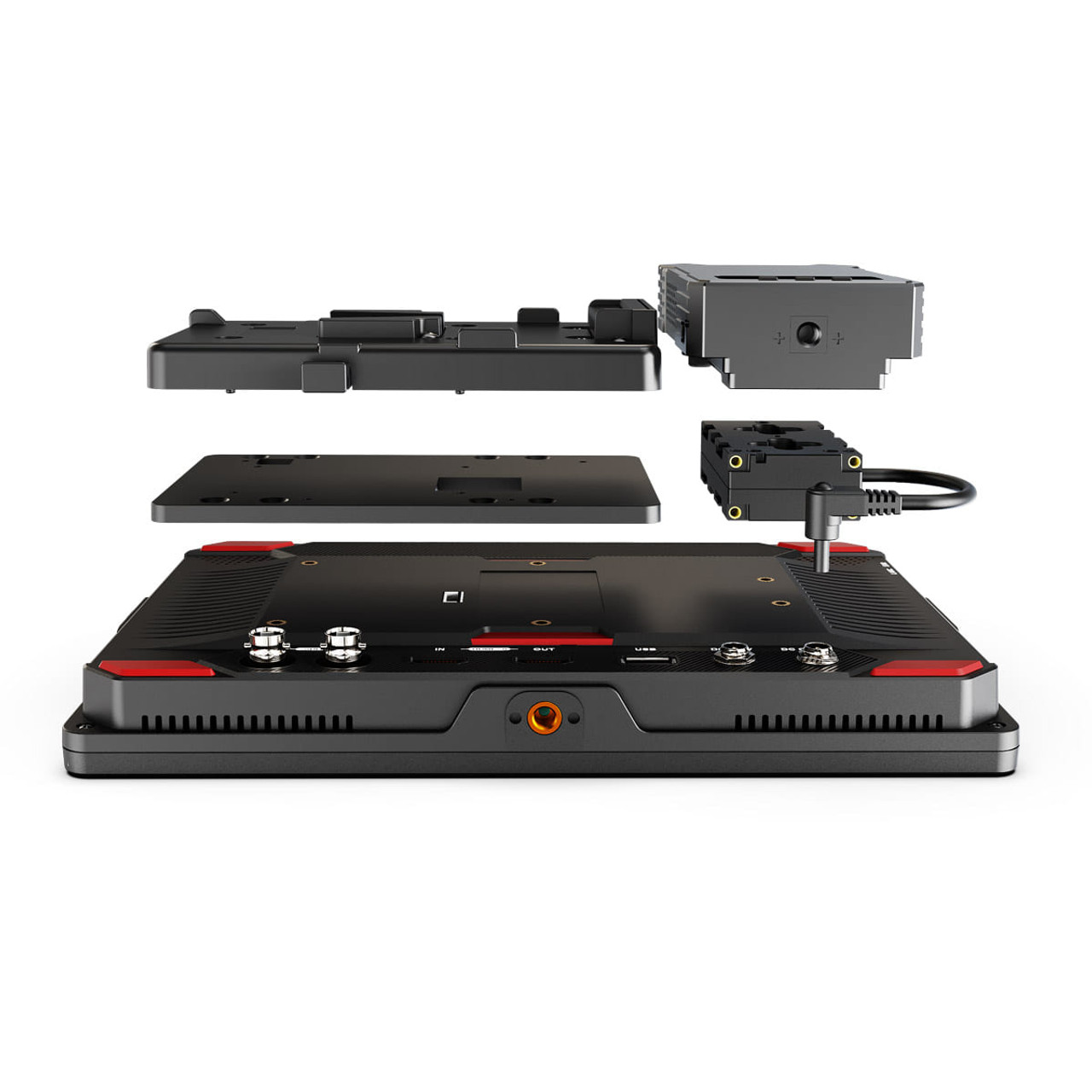

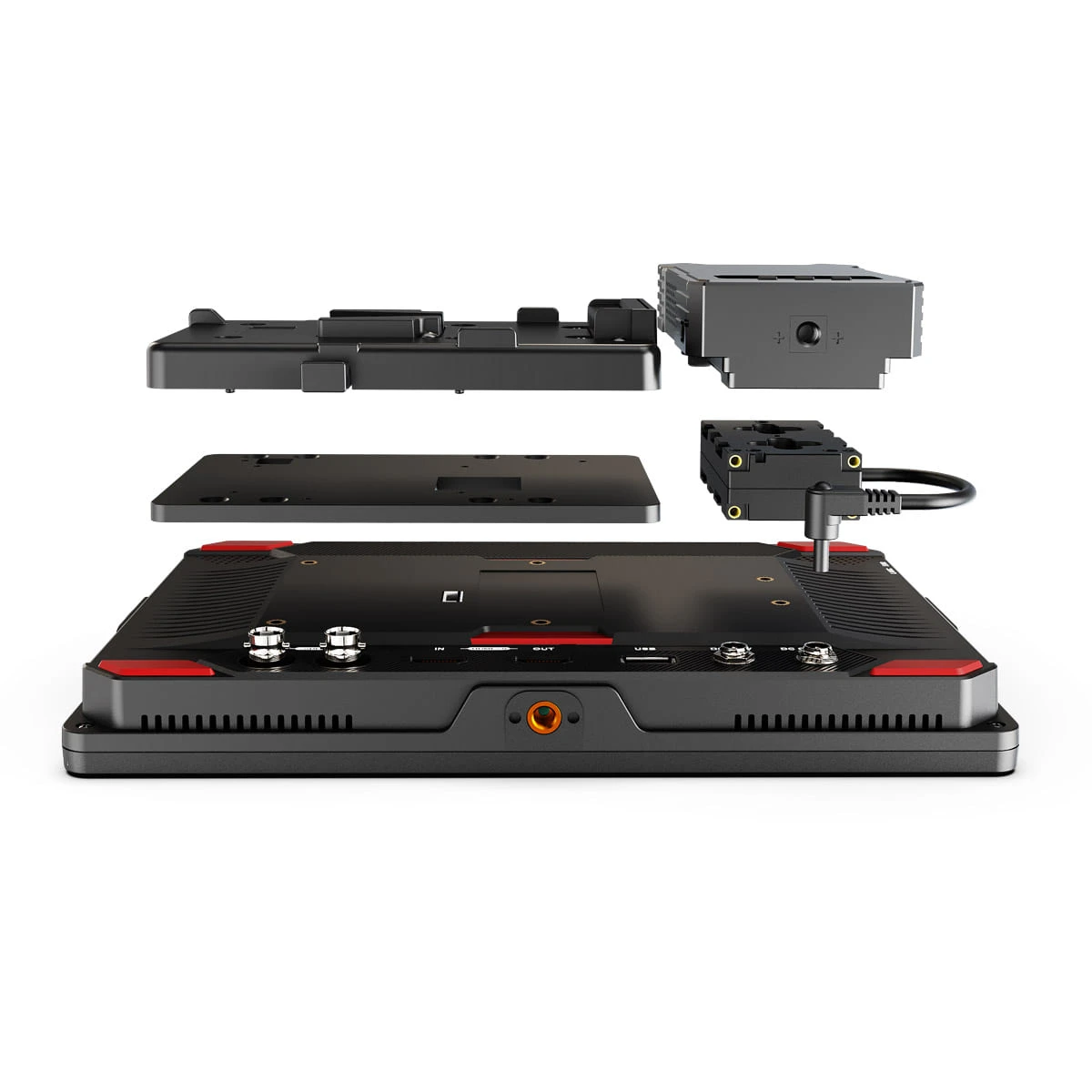

- V-lock Battery Plate
- Camera Control
- 3G-SDI up to 1080p 60Hz
- HDMI 2.0 up to 2160p 60Hz
Specifications
- DISPLAY
- Aspect Ratio - 16:10
- Brightness - 1500 cdm²
- Colour Space - (Original) 125% BT.709 / 92.5% DCI P3
- Contrast Ratio - 1000:1
- Resolution - 1920 x 1200
- Touch Panel - Capacitive Touch
- Viewing Angle - 170° / 170°
- HDR - HLG; ST2084 300/1000/10000
- Screen Size - 10.1" LCD
- SIGNAL INPUT
- SDI - 1×3G-SDI
- HDMI - 1×HDMI 2.0
- SIGNAL LOOP OUTPUT
- SDI - 1×3G-SDI
- HDMI - 1×HDMI 2.0
- SUPPORT FORMATS
- SDI - 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
- HDMI - 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
- AUDIO IN/OUT
- HDMI - 8ch 24-bit
- Ear Jack - 3.5mm – 2ch 48kHz 24-bit
- Built-in Speakers - 1
- POWER
- Input Voltage - DC 7-24V
- Power Consumption - ≤23W (12V)
- ENVIRONMENT
- Operating Temperature - 0°C~50°C
- Storage Temperature - -20°C~60°C
- OTHER
- Dimension (LxWxD) - 9.88 x 6.69 x 1.04 inch (251mm × 170mm × 26.5mm)
- Weight - 1.87 lbs (850g)
UPC: 6950821602638
