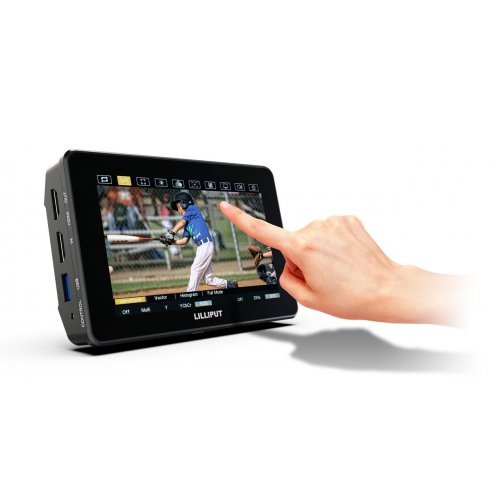

Lilliput HT5S 5.5in 2000nits 3G-SDI Touch Camera Control Monitor
Model: HT5s
About: Lilliput HT5S 5.5in 2000nits 3G-SDI Touch Camera Control Monitor
The Lilliput HT5S is a strong workhorse for the DSLR user. A 5.5" monitor with a 1920 x 1080 pixel panel, it is capable of displaying a 4K 2160P 60Hz input on its panel and sports very high 2000cdm² brightness - ideal for outdoor usage.
Where it shines is with it's touch screen capability. Using a LANC Cable (supplied) you can connect your camera directly to the monitor and control it's functions from the panel directly. This means you can spend more time focusing on the shot more than switching between viewfinders - ideal for a more studied camera shot.
Specifications
- Display
- Panel - 5.5" LCD
- Physical Resolution - 1920 x 1080
- Aspect Ratio - 16 -9
- Brightness - 2000 nit
- Contrast - 1000 -1
- Viewing Angle - 160°/ 160°(H/V)
- Color Space - 100% BT.709
- HDR Supported - HLG; ST2084 300/1000/10000
- Signal Input
- SDI - 1 x 3G-SDI
- HDMI - 1 x HDMI 2.0
- Signal Loop Output
- SDI - 1 x 3G-SDI
- HDMI - 1 x HDMI 2.0
- Support Formats
- SDI - 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60.
- HDMI - 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.
- Audio In/Out
- HDMI - 8ch 24-bit
- Ear Jack - 3.5mm - 2ch 48kHz 24-bit
- Built-in Speakers - 1
- Power
- Input Voltage - DC 7-24V
- Power Consumption - ≤14W (15V)
- Environment
- Operating Temperature - 0°C~50°C (32°F~122°F)
- Storage Temperature - -20°C~60°C (-4°F~140°F)
- Other
- Dimension (LxWxD) - 6.09 x 3.69 x 1.04 inch (154.8 x 93.8 x 26.5 mm)
- Weight - 0.68 lbs (310g)
NOTE: Package contains single monitor.
UPC: 6950821602560
Reviews: Lilliput HT5S 5.5in 2000nits 3G-SDI Touch Camera Control Monitor
Warranty: Lilliput HT5S 5.5in 2000nits 3G-SDI Touch Camera Control Monitor
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
