Lilliput 13.3" 12G-SDI Studio/Broadcast Monitor

About: Lilliput 13.3" 12G-SDI Studio/Broadcast Monitor

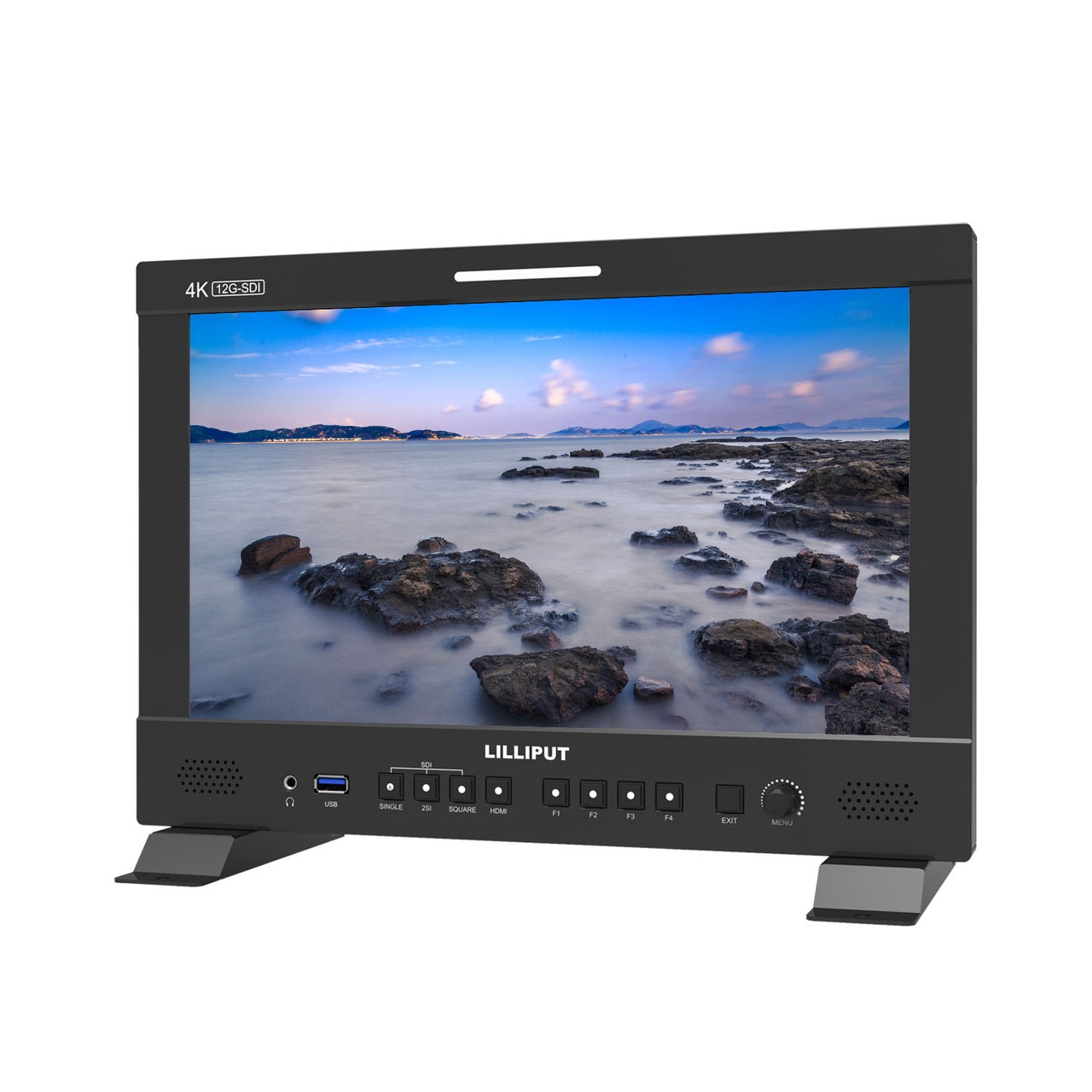

The Lilliput Q13 is a professional studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.

Specifications

• DISPLAY
  • Panel -  13.3"
  • Physical Resolution -  3840*2160
  • Aspect Ratio -  16:09
  • Brightness -  300 cd/m²
  • Contrast -  1000:01:00
  • Viewing Angle -  178°/178°(H/V)
  • HDR -  ST2084 300/1000/10000/HLG
  • Supported Log Formats -  SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
  • Look up Table (LUT) support -  3D LUT (.cube format)
  • Technology -  Calibration to Rec.709 with optional calibration unit

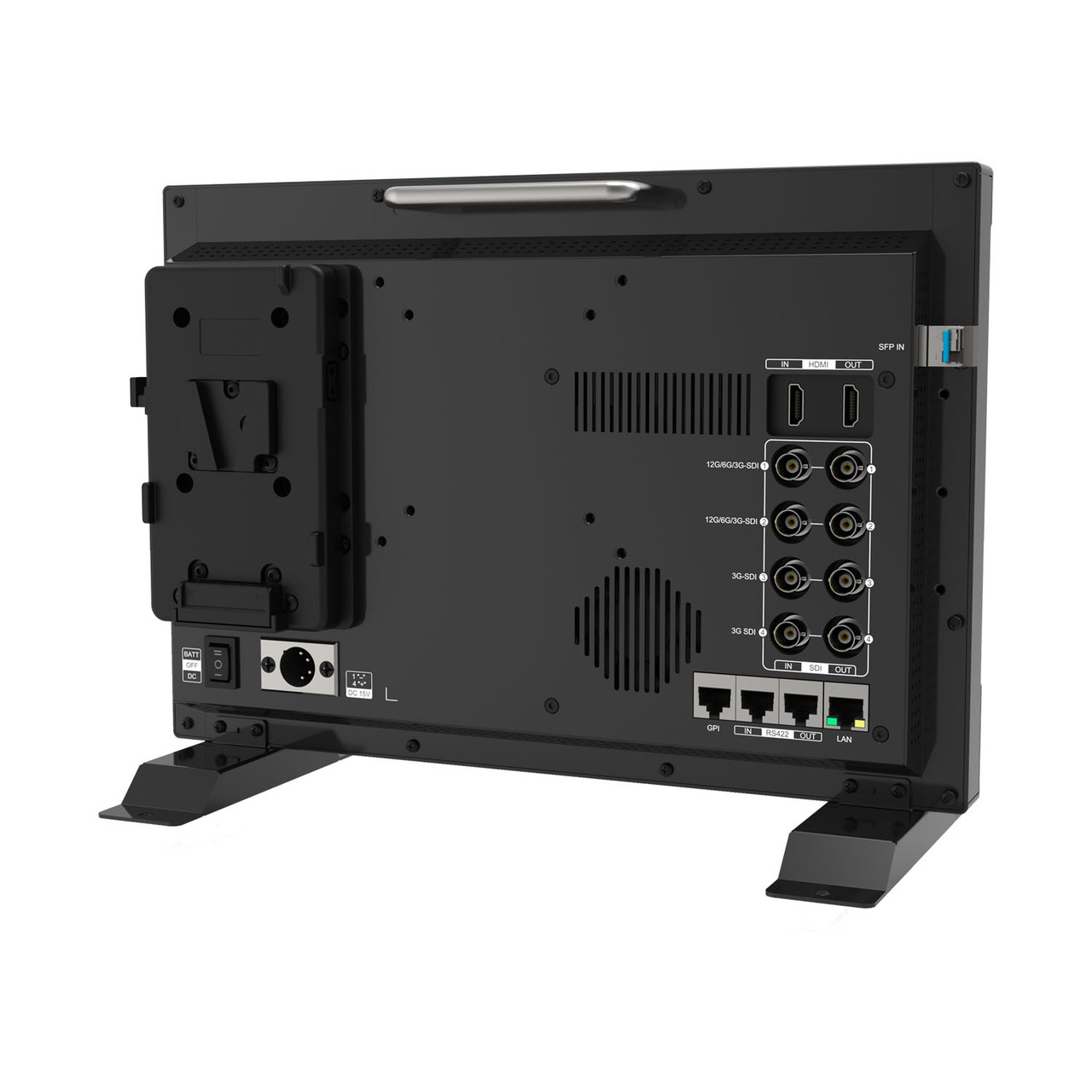

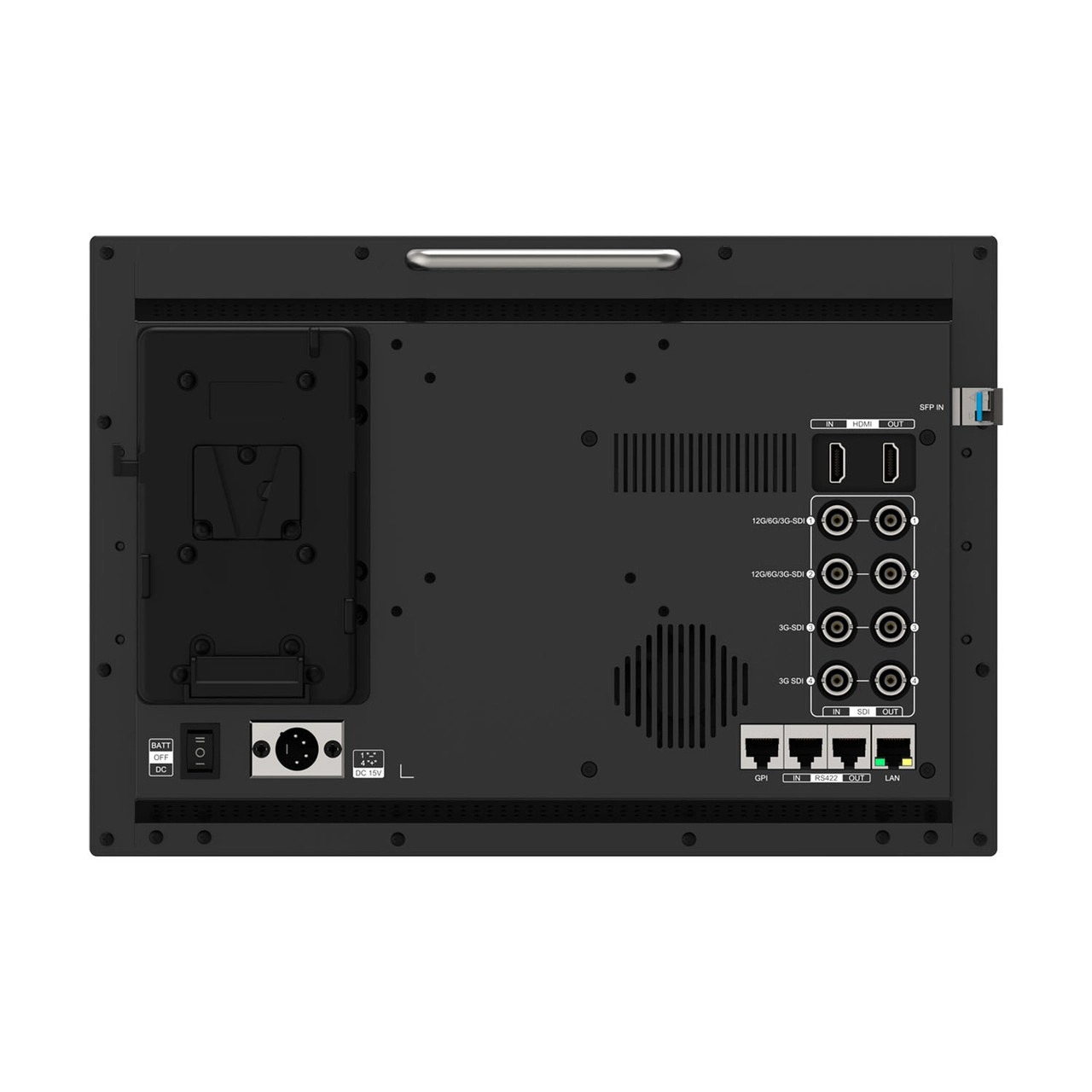

• VIDEO INPUT
  • SDI -  2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
  • SFP -  1×12G SFP+(Fiber module for optional)
  • HDMI -  1×HDMI 2.0
• VIDEO LOOP OUTPUT
  • SDI -  2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
  • HDMI -  1×HDMI 2.0
• SUPPORTED FORMATS
  • SDI -  2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
  • SFP -  2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
  • HDMI -  2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
• AUDIO IN/OUT (48kHz PCM AUDIO)
  • SDI -  16ch 48kHz 24-bit
  • HDMI -  8ch 24-bit
  • Ear Jack -  3.5mm
  • Built-in Speakers -  2
• REMOTE CONTROL
  • RS422 -  In/out
  • GPI -  1
  • LAN -  1
• POWER
  • Input Voltage -  DC 12-24V
  • Power Consumption -  =31.5W (15V)
  • Compatible Batteries -  V-Lock or Anton Bauer Mount
  • Input Voltage(battery) -  14.8V nominal
• ENVIRONMENT
  • Operating Temperature -  0C~50C
  • Storage Temperature -  2.4kg
• OTHER
  • Dimension(LxWxD) -  340mm × 232.8mm × 46mm
  • Weight -  2.4kg

What's in the Box

• Q13 Monitor
• 15V DC ADApter
• VESA Mount Plate
• Base Bracket
• USB Flash Drive
• V-Lock Mount (default)
