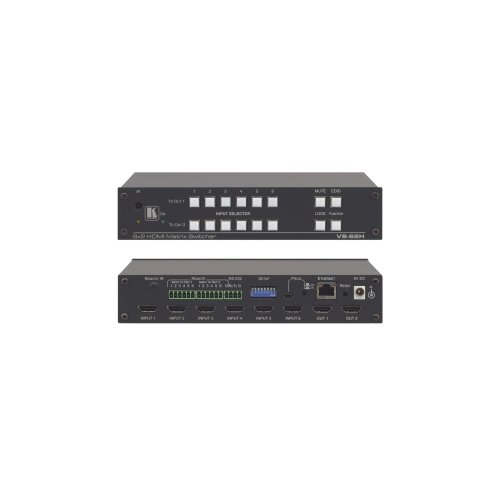

Kramer 6x2 4K60 4:2:0 HDMI Automatic Matrix Switcher

About: Kramer 6x2 4K60 4:2:0 HDMI Automatic Matrix Switcher

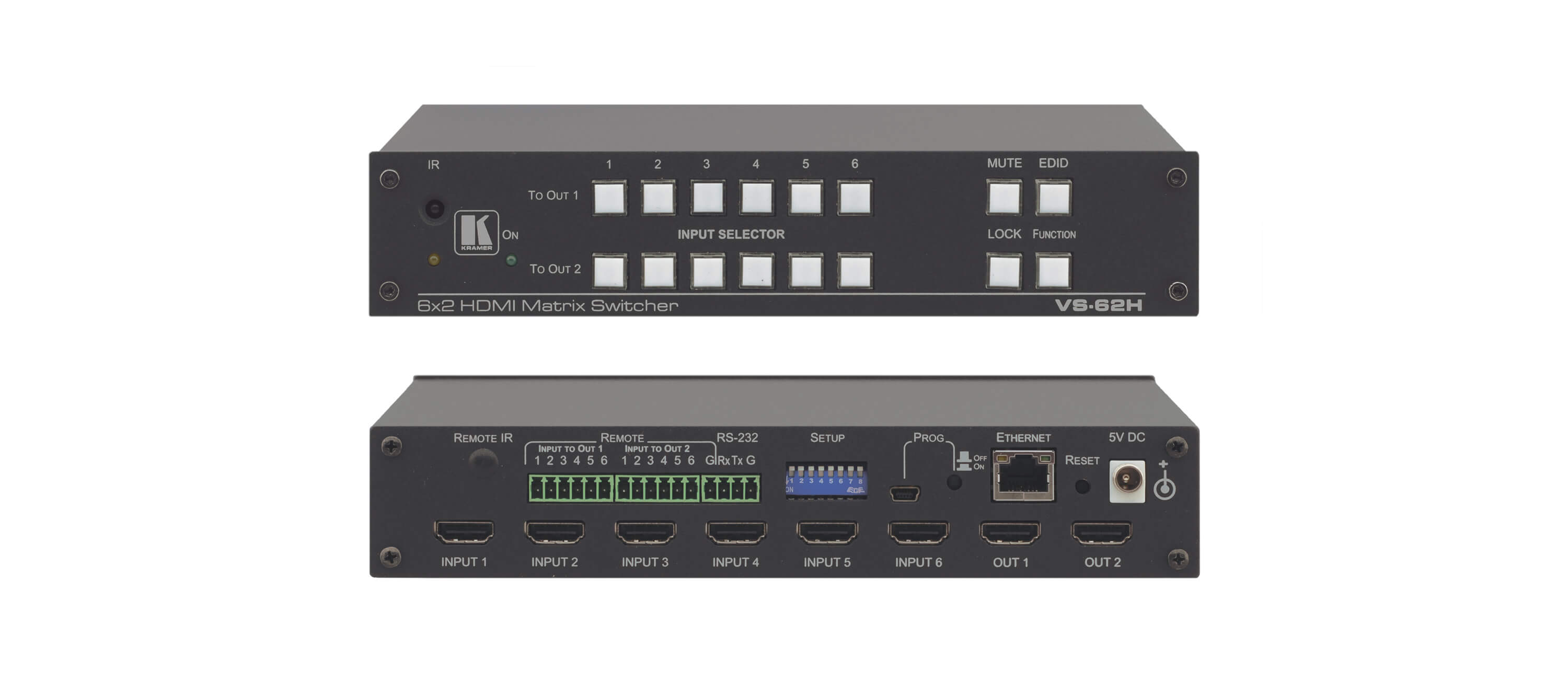

The VS−62H is a high−quality, 6x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA.

• Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics channel).
• Max. Resolution - Up to 4K@60Hz (4:2:0) and WUXGA.
• HDCP Compliant.
• HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS−HD®, and 7.1 multi−channel audio.
• EDID Capture - Copies and stores the EDID from a display device.
• Programmable Step-In Functionality - When used in conjunction with compatible step−in devices, such as the SID−X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
• True Video Clock Detection.
• Auto Switching Option - For either or both outputs, last−connected or priority switching.
• Non-Volatile EDID Storage.
• Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
• Lock Button - Prevents unwanted tampering with the front panel.
• Internal Pattern Generator.
• Kramer Protocol 3000 Support.
• Embedded Web Pages - Provide remote configuration and operation.
• Static or Dynamic DHCP IP Addressing.
• Flexible Control Options - Front panel buttons, IR remote (included), optional external remote IR receiver, RS−232, Ethernet, contact closure, embedded Web server.
• USB Port - For upgrading firmware.
• Size - Desktop - Mount 2 units side-by-side in a 1U rack space with the optional RK-1 adapter.

Applications:

• Conference rooms
• Education
• Hospitality

Quick Facts

• Max Data Rate − 8.91Gbps
• Max Resolution 4K@60Hz (4:2:0)
• Kramer reKlocking™ & Equalization Technology
• Supports Programmable Step−In Functionality
• 3D Pass Through.
• EDID Capture
• Internal Pattern Generator
• Control − IR, RS−232, Ethernet, contact closure
• Size - Desktop
• Audio - E
