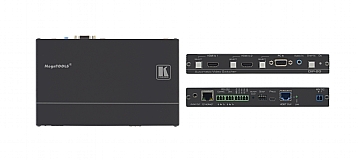

Kramer 4K60 4:2:0 HDMI & VGA Step−In PoE Transmitter with Ethernet
Model: DIP-20
About: Kramer 4K60 4:2:0 HDMI & VGA Step−In PoE Transmitter with Ethernet
The DIP−20 is an extended reach 4K@60Hz (4:2:0), HDBaseT transmitter and Step−in commander for computer graphics video, HDMI, and unbalanced stereo audio embedding and de−embedding. The DIP−20 accepts HDMI and PC graphics video input, an Ethernet signal, serial data, and an unbalanced stereo audio input (that is embedded into the output signal). It transmits the signal to an HDBaseT (twisted pair) cable to a compatible receiver (for example, the TP−588D or TP−580RXR).
DIP−20 is a PoE (Power over Ethernet) provider and can power compatible PoE acceptors (for example, TP−588D).
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- Max. Resolution - Up to 4K@60Hz (4:2:0) and WUXGA.
- HDTV Compatible.
- HDCP Compliant - Works with sources that support HDCP repeater mode.
- HDMI Support - Deep Color, x.v.Color™ and 3D.
- HDBaseT Certified.
- Automatic Live Input Detection - Based on video clock presence.
- Automatic Input Selection - Based on manual selection or last connected input.
- Automatic Analog Audio Detection & Embedding.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- System Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−UNIKAT cables.
- Data Equalization and Reclocking.
- Local Balanced Audio De-Embedding.
- Support for Digital Audio Formats.
- Lockable EDID.
- Local Step-In Switching - Button & contact closure.
- Power Supply - Supports PoE to power a remote receiver (such as TP−588D). Requires independent power supply.
- Size - MegaTOOLS® - Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Quick Facts
- Max. Data Rate − 10.2Gbps (3.4Gbps per graphic channel)
- Resolution Support up to 4K@60 (4:2:0)
- Automatic Live Input Detection
- Local Step−In Switching
- Provides PoE Power
- Size - MegaTOOLS™
- Audio - U/E
UPC: 7291063075897
Reviews: Kramer 4K60 4:2:0 HDMI & VGA Step−In PoE Transmitter with Ethernet
Warranty: Kramer 4K60 4:2:0 HDMI & VGA Step−In PoE Transmitter with Ethernet
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Limited warranty for seven (7) years from date of original purchase.
Fiber Optic cables have a one (1) year warranty, and Cobra products have a three (3) year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
