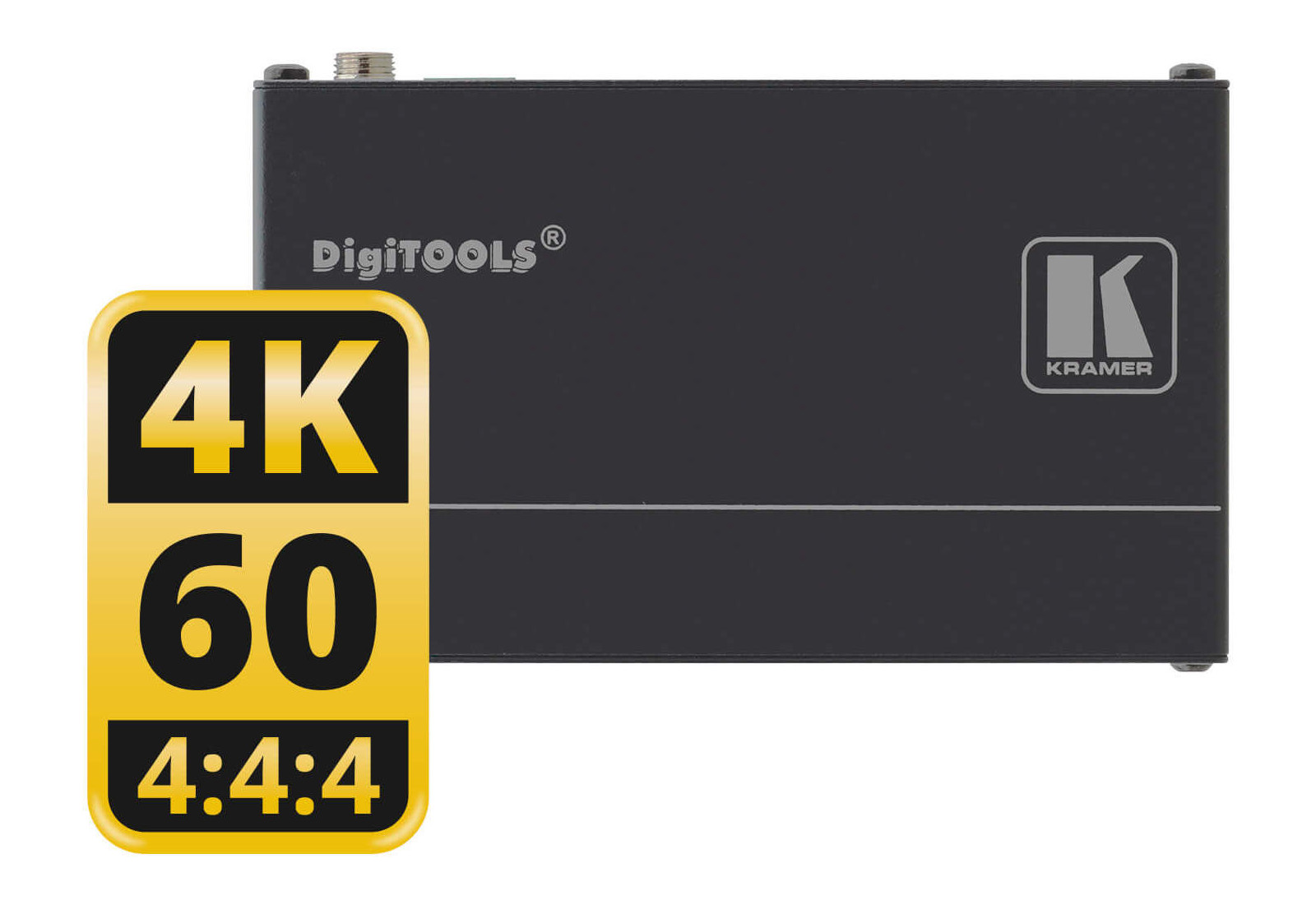

Kramer 2x1 4K60 4:4:4 HDCP 2.2 HDMI 2.0 Automatic Standby Switcher

About: Kramer 2x1 4K60 4:4:4 HDCP 2.2 HDMI 2.0 Automatic Standby Switcher

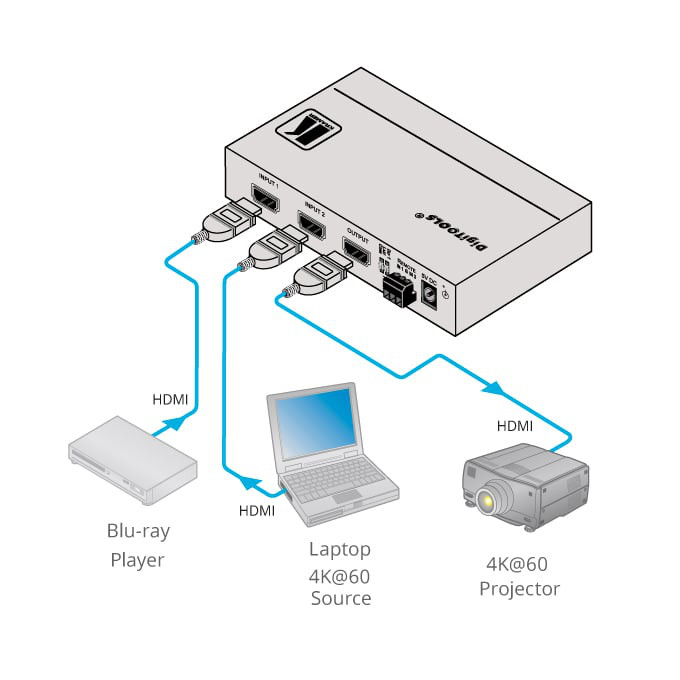

The VS−211H2 is a high−performance auto switcher for 4K@60Hz (4:4:4) HDMI video signals. Offering priority and last−connected auto switching scheme options, it automatically switches input signals to output connection, according to the selected switching scheme, and based on active video signals detection.

•  HDMI Signal Switching — HDR and HDCP 2.2 compliant, it supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
•  Multi–channel Audio Switching — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
•  I–EDIDPro Kramer Intelligent EDID Processing — Intelligent EDID handling, processing, locking and pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.

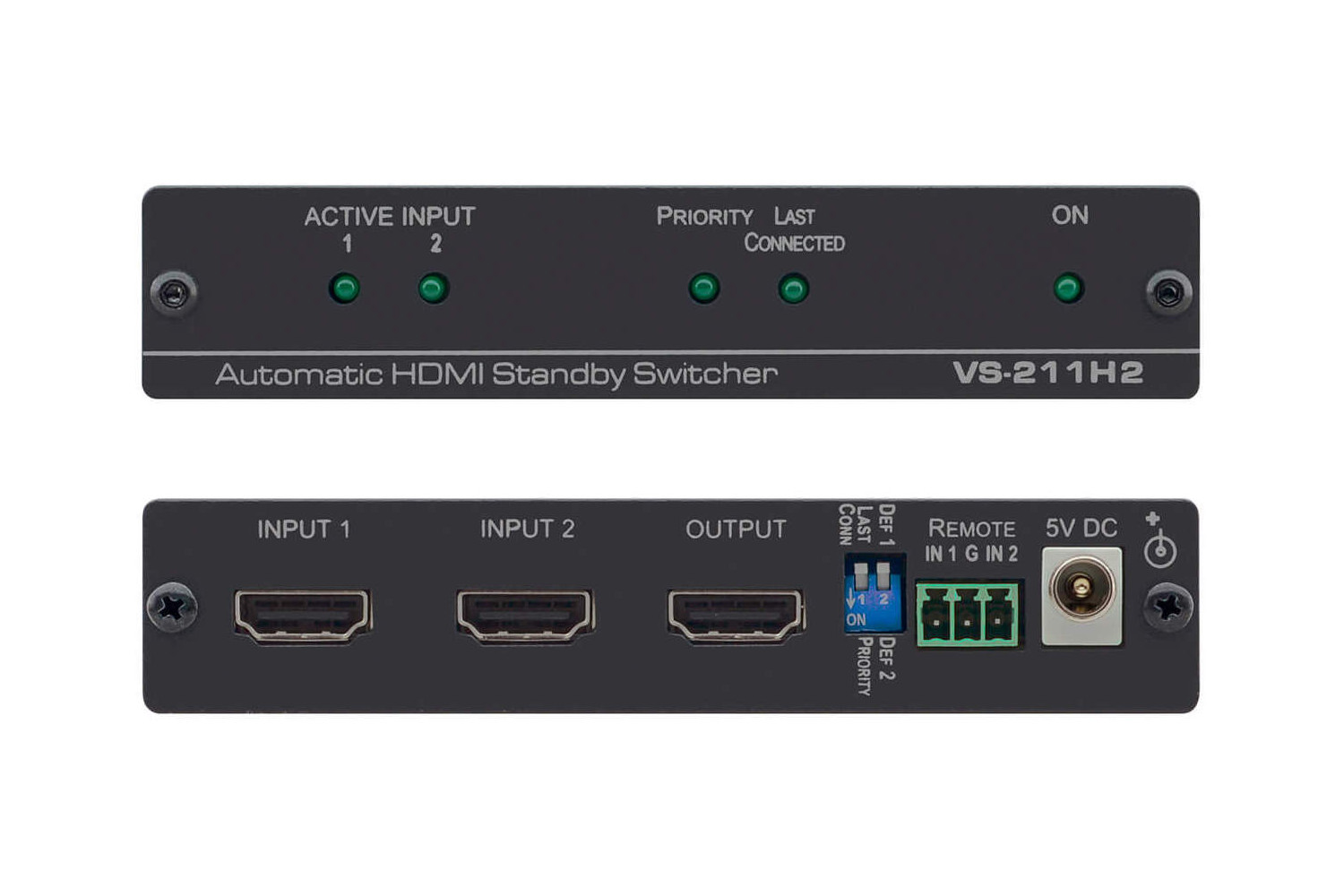

•  Cost–Effective Maintenance — Status LED indicators for HDMI ports facilitate easy local troubleshooting.
•  Easy Installation — Compact DigiTOOLS® fan–less enclosure fits for convenient under tables or dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.

Applications

• Basic hi–quality auto switcher for any AV distribution solutions
• Standard small–medium meeting

Specifications

• Inputs - 2x HDMI - On female HDMI connectors
• Outputs -  1x HDMI - On a female HDMI connector
• Ports - 2x Contact-Closure Switches - On a 3–pin terminal block connector for remote device operation
• Video
  • Max. Data Rate: 17.82GBPS (5.94Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:4:4)
  • HDMI Support: Deep Color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
  • Standards Compliance: HDR10, HDCP 2.2 (does not support conversion to HDCP 1.4)
• User Interface - Controls - Status/priority DIP–switches, contact closure remote control
• Regulatory - Certification - EMC EN 55032, IEC 60950–1(ed.2), IEC 60950–1(ed.2)am1, IEC 60950–1(ed.2)am2
• Environmental Conditions
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
• Power - Consumption - 5V DC, 560mA
• Accessories - Power adapter
• Dimensions (WxDxH) - 4.72 x 2.81 x 0.96 in (12 x 7.15 x 2.44 cm)
• Weight - 0.4 lbs (0.2kg)
