KanexPro 18Gbps 4K HDMI Audio Extractor w/ Dolby Atmos

About: KanexPro 18Gbps 4K HDMI Audio Extractor w/ Dolby Atmos

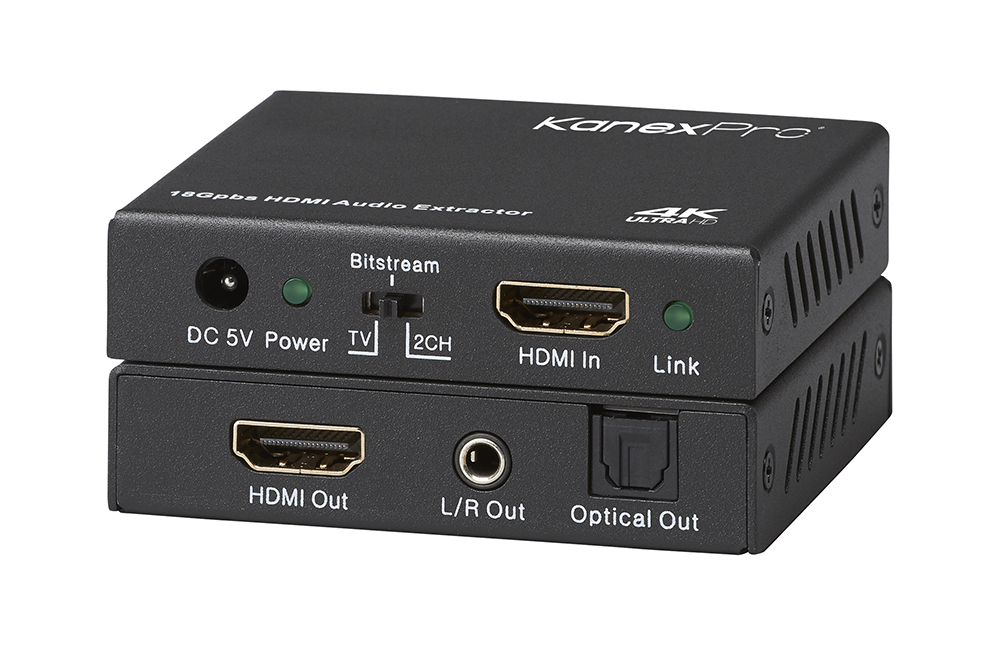

The KanexPro HAECOAX3 is our 3rd gen. audio extractor designed with 18 Gbps of high bandwidth and supporting the latest HDMI 2.0 specifications. This audio extractor will de-embed HDMI audio streams from any HDMI based device to digital or analog stereo maintaining 4K/60 video resolutions with YUV 4:4:4 color space and pass-thru for HDR 10 (High Dynamic Range). Audio formats include LCPM 2-channel stereo, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master audio with audio sampling rate up to 192kHz.

Applications:

Widely used by audiophiles for de-embedding high-fidelity audio signals up to 192kHz and analog 2-channle stereo audio in residential and audio based home theaters. Perfect for de-embedding audio from devices such as, Apple TV 4th generation, Google Chromecast, Xbox One, PS4, Sonos Speaker systems where you can simply extract audio from HDMI and drive it through 2-channel stereo or AV receiver.

Features

• 4K/60 HDMI Audio Extractor with Dolby Atmos®
• Select your bit-stream audio by switching instantly
• 18 Gbps bandwidth with latest HDMI 2.0 Specs
• Supports HDMI® HBR (High Bit Rate) audio pass-through
• Supports HDR 10(High Dynamic Range) pass-through for wide color gamut
• Supports video resolutions up to 4K@24/30/50/60Hz (YUV4:4:4) & 1080p HD
• De-embeds audio to multi-channel digital via TOSLINK / SPDIF or analog
• HDCP 2.2 compliant
• CEC- pass through
• HDMI audio output: PCM 2, 5.1, 7.1, Dolby 5.1, DTS 5.1, D-TrueHD & DTS-HD
• Supports uncompressed audio such as LPCM
• Converts 2CH from 24-bit up to 192 kHz audio
• Automatic input cable equalization

Specifications

• HDMI Compliance: HDMI 2.0a
• HDCP compliance: HDCP 2.2 & HDCP 1.4
• Video bandwidth: 18 Gbps
• Suported Video Resolutions:
  • 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz
  • 1080P@120Hz, and 1080P 3D@60Hz
• Other Supported Resolutions (HDTV)
  • Interlaced (50&60Hz):
  • 480i
  • 576i
  • 1080i
  • Progressive (50&60Hz):
  • 480
  • 576p
  • 720p
  • 1080p
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Color Depth: 10-bit, 12-bit
• Audio Formats:
  • HDMI Audio Formats pass-thru: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Optical Audio Formats: LPCM 2CH,LPCM 5.1,Dolby Digital 2/5.1CH, DTS2/5.1CH
  • L/R Audio Formats: Analog Stereo 2CH
• Connectors:
  • Input Connector: HDMI with pigtail (Male)
  • Output Connector: HDMI (Female),  TOSLINK (fiber optic), 3.5mm Stereo L/R
• Supported Audio formats & Specifications:
  •  HDMI In: DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3 and 2.0CH 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
  • HDMI Out:  DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3 and 2.0CH 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
  • TOSLINK Out : PCM and compressed audio formats up to 192 kHz (DTS, Dolby-AC3 and 2.0CH)
  • Headphone Out :  2.0 CH stereo audio
• EDID Switch: Selects 2.0CH, 5.1 CH, TV EDID to source
• Power Requirements
  • Power Supply: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption (Max): less than 1 Watt
• Environmental
  • Operating Temperature: 0°C to +70°C
  • Operating Humidity: -10% to 80% RH (No Condensation)
  • Storage Temperature: -20°C to +60°C
  • Storage Humidity: 5% to 90% RH (No Condensation)
  • ESD Protection : Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
• Regulatory Approvals
  • Converter Unit:  FCC,CE, UL
  • Power Supply: FCC,CE, UL
• Mechanical:
  • Housing: Metal Enclosure
  • Color: black
  • Dims: W 2.8" x D 2.38"x H0.66" (73.5mm x 60.7mm x 17mm)
  • Weight: 0.28 Lbs. (130g)
