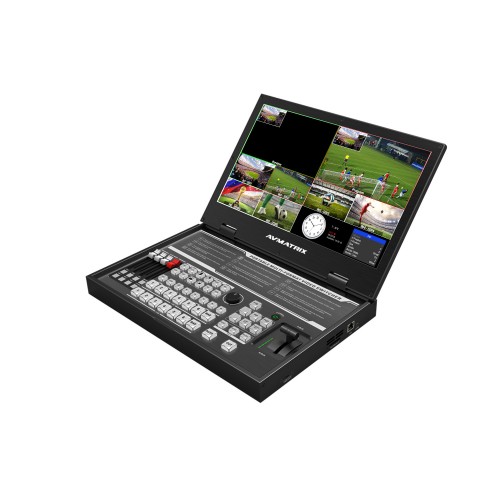

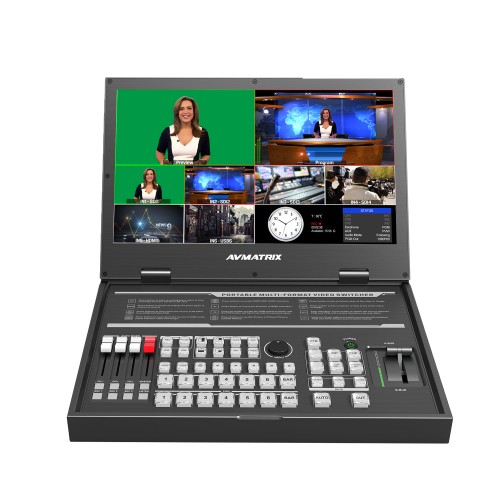

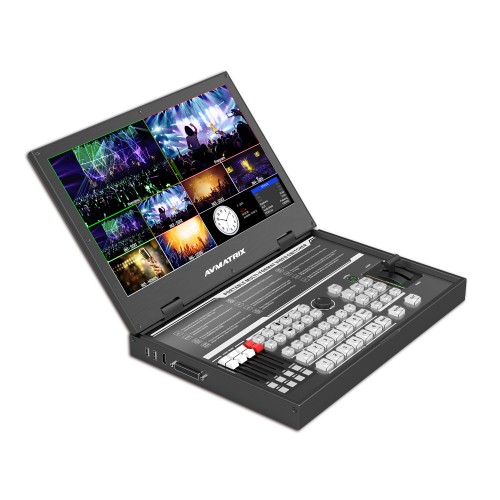

AVMatrix PVS0615U - 6 Channel USB Streaming Video Switcher

About: AVMatrix PVS0615U - 6 Channel USB Streaming Video Switcher

Designed for small scale broadcasting and online streaming, the PVS0615U is a perfect compact solution for any desktop live editing situation. With USB Streaming output (for Youtube / Twitch / Zoom streaming), a built in 15.6" FHD LCD monitor and a T-bar for live fades - as well as a whole host of input and output media feeds - the PVS0615U will bring both your online and offline video presentations to the fore.

Features

• Uncompressed capture for live streaming, comply with UVC & UAC
• Portable All-In-One design with 15.6 inch FHD LCD display for multiview
• 6 channel inputs: 4xSDI and 2xHDMI/ DVI-I/ VGA/ USB
• 1xUSB type-C out, 3xSDI PGM/ AUX out
• 2xHDMI PGM & 1xHDMI multiview out
• Multiformat input auto-detected and PGM/AUX output format selectable
• T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
• Luma Key/ Chroma Key/ Recordder/
• Audio mixer: TRS audio & SDI, HDMI, USB embedded audio

Specifications

• Functions
  • Transitions: Manual T-Bar / Wipe /Mix / Cut / Auto / Fade / Fade to Black
  • Layouts: Multiview / PiP / PoP
  • Streaming: USB Type C uncompressed capture - compliant with UVC and UAC
  • Audio Mixer: Following / Mixing
  • LCD Display: 15.6 inch, 1920 x 1080 resolution
  • Record (Optional): SD Card, H.264 Encode, video format following PGM
• Inputs
  • SDI Video Inputs: SD / HD / 3G-SDI (75O) x4 / Auto Detects SD, HD, and 3G-SDI
  • HDMI Video Inputs: HDMI type-A x2
  • DVI Video Inputs: DVI-I (VGA Compatible) x2
  • USB Media Player: USB Type A x2
  • Analog Audio Inputs: XLR (L/R) x1
• Standard - SDI Input Format Support
  • 1080p - 60/59.94/50/30/29.97/25/24/ 23.98
  • 1080PsF - 30/29.97/25/24/23.98
  • 1080i - 60/59.94/50
  • 720p - 60/59.94/50/30/29.97/25/24/23.98
• Outputs
  • SDI PGM Outputs: SD / HD / 3G-SDI (75O) x3
  • HDMI Multiview Output: HDMI type-A x1
  • HDMI PGM Outputs: HDMI type-A x2
  • Analog Audio Output: XLR (L/R) x1
  • Tally: GPIO
• Standards
  • SDI & HDMI Scaling PGM Output: 625i 50 PAL, 525i 59.94 NTSC, 1080p 60/50/30/25/24/23.98, 1080i - 60/50, 720p - 60/50/30/25
  • SDI Compliance: SMPTE 292M / SMPTE 259M / SMPTE 424M
