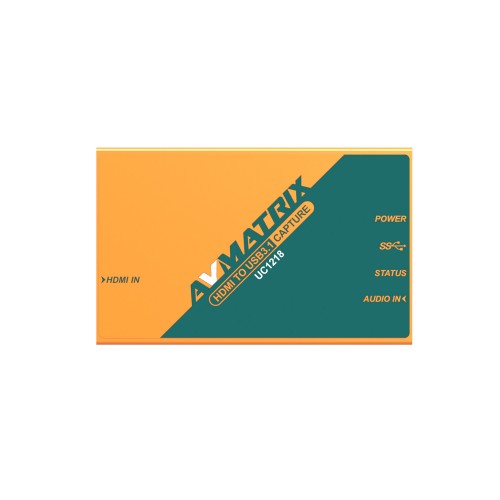

AVMatrix UC1218 - HDMI to USB 3.1 (Gen 1) Type C Video Capture System

About: AVMatrix UC1218 - HDMI to USB 3.1 (Gen 1) Type C Video Capture System

The AVMatrix UC1218 is a video capture and conversion system which allows for the transformation of an HDMI video input across to a USB 3.1 compatible video signal. It's useful if you are using an HDMI camera to capture video streams and need to have them available for USB transport into a piece of software - such as a capture program, or a live stream.

• Plug-and-Play, driver free & power free
• HDMI in, and USB 3.1 Gen1(USB3.0) out
• Automatic input signal detection, up to 1080p60
• Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
• Comply with UVC video capture and YUY2 video output
• Comply with UAC audio out from HDMI embedded audio or line in
• Compatible with Windows, Linux, macOS
• Compatible with OBS, ZOOM, Teams & Twitch, etc.

Specifications

• Connection

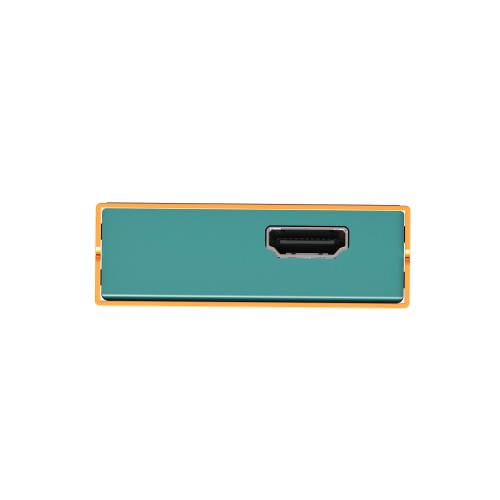

  • Input Interface: 1x HDMI 1.4a, 1x3.5mm stereo audio (Line in)
  • Output Interface: 1x USB Type C, USB 3.1 Gen1 (up to 200MB/s)
• Format
  • HDMI Input Format: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50/576i50, 80i 59.94/60, 480 59.94/60
  • USB Output Format: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1440x900, 1368x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360
  • Video & Audio Capture: UVC (USB video class) & UAC (USB audio class) Standard
  • Audio Codec: 2-Channel, 16 bit PCM, 48kHz, 1536kbps
  • Video Color Space: YUY2
• Others
  • Supported OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and above), MacOS (10.8 & above)
  • Software Compatibility: OBS Studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuickTime Player, FaceTime, Wirecast, CAMTASIA, Ecamm.Live, Twitch.tv
  • Compatible SDK: DirectShow (Windows), DirectSound (Windows)
  • Dimensions: 3.86 x 2.20 x 0.63" (98 x 56 x 16mm)
  • Weight: 0.66Lbs (300g)
  • Power Consumption: 3.5W
  • Operating Temperature: -4° to 140°F (-20° to 60°C)
  • Storage Temperature: -22° to 158°F (-30° to 70°C)
  • Relative Humidity: 20 to 90% RH, non-condensing

Item Includes:

• 1x USB 3.0 A-C Cable
