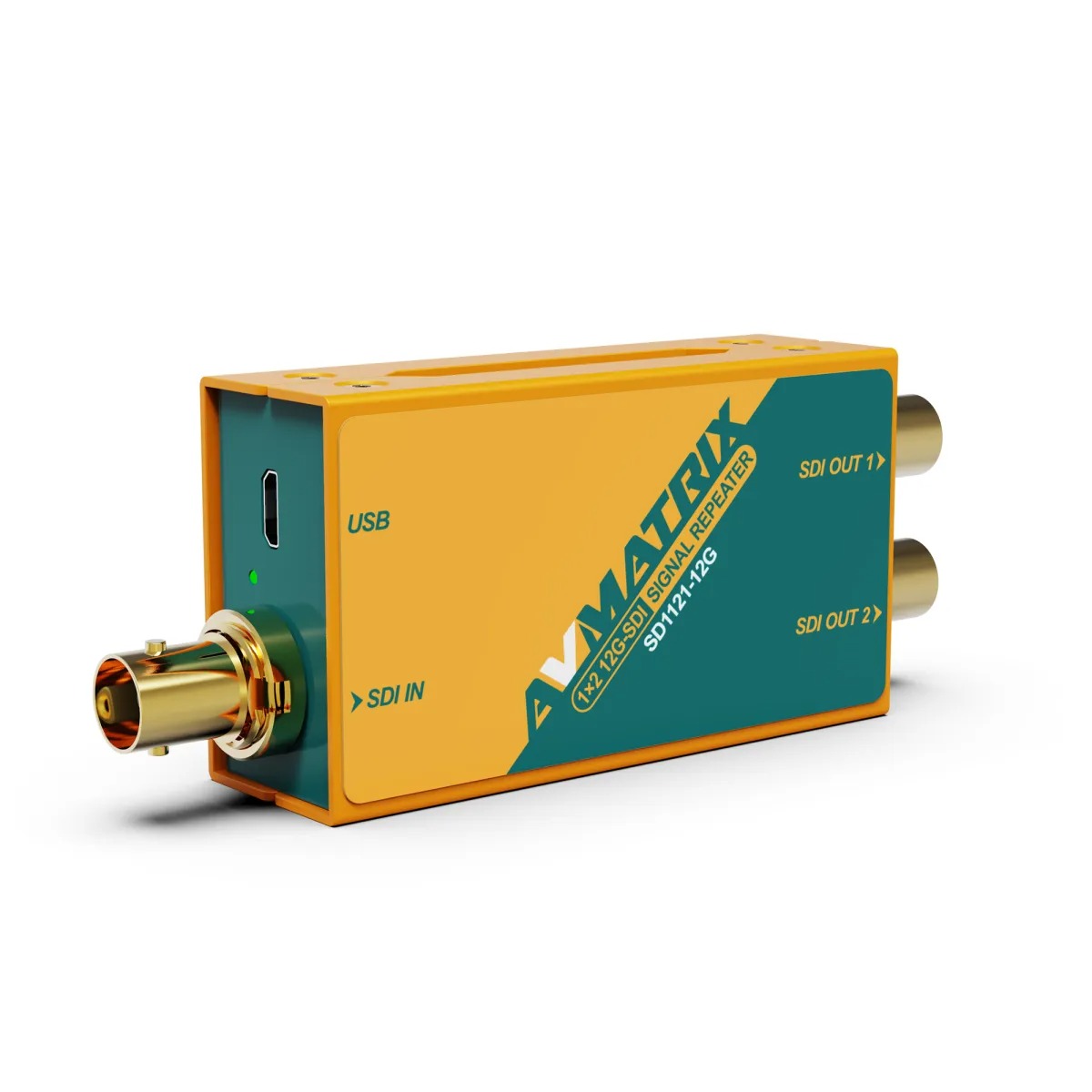

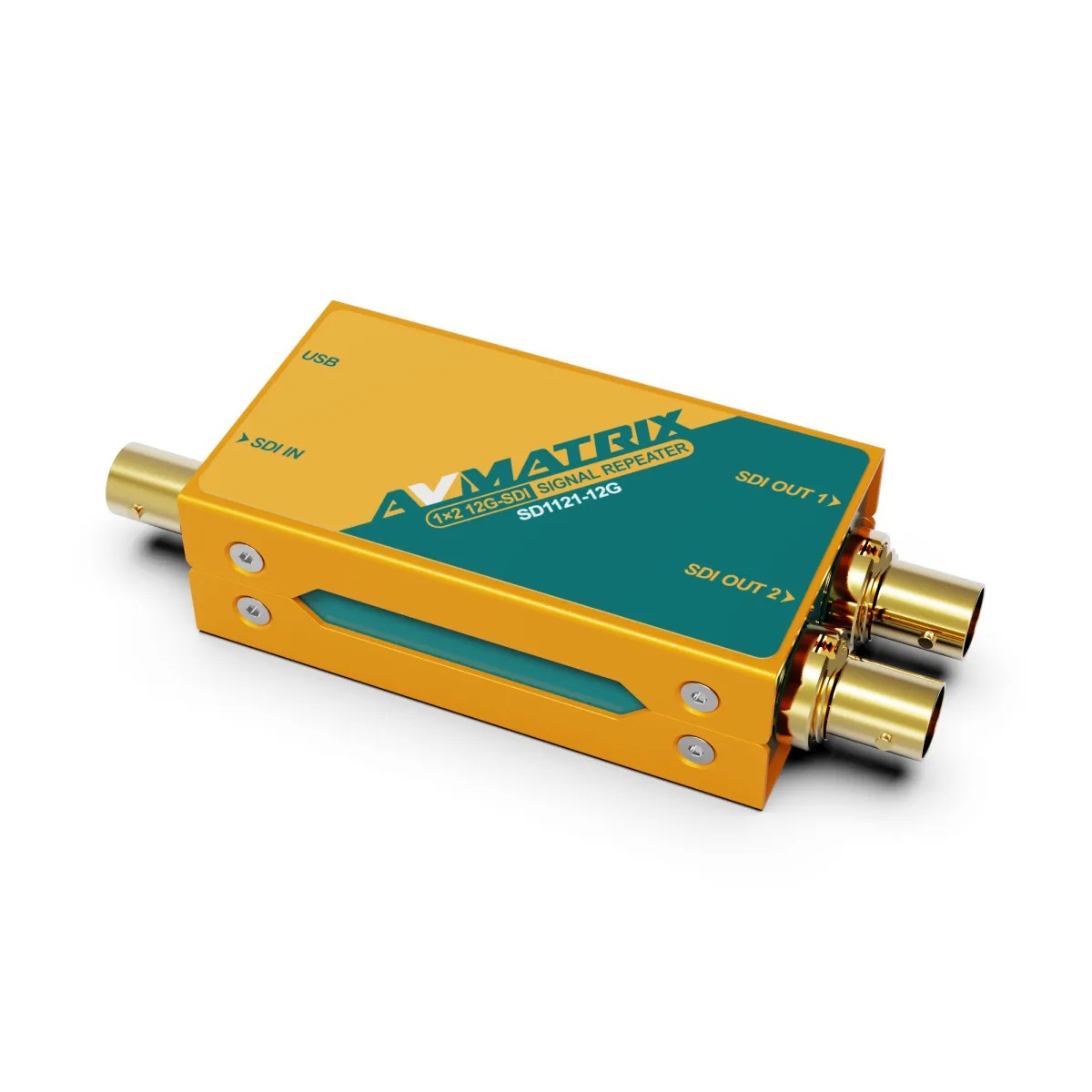

AVMatrix SD1121-12G 1×2 12G-SDI Signal & Repeater
Model: SD1121-12G
About: AVMatrix SD1121-12G 1×2 12G-SDI Signal & Repeater
Features

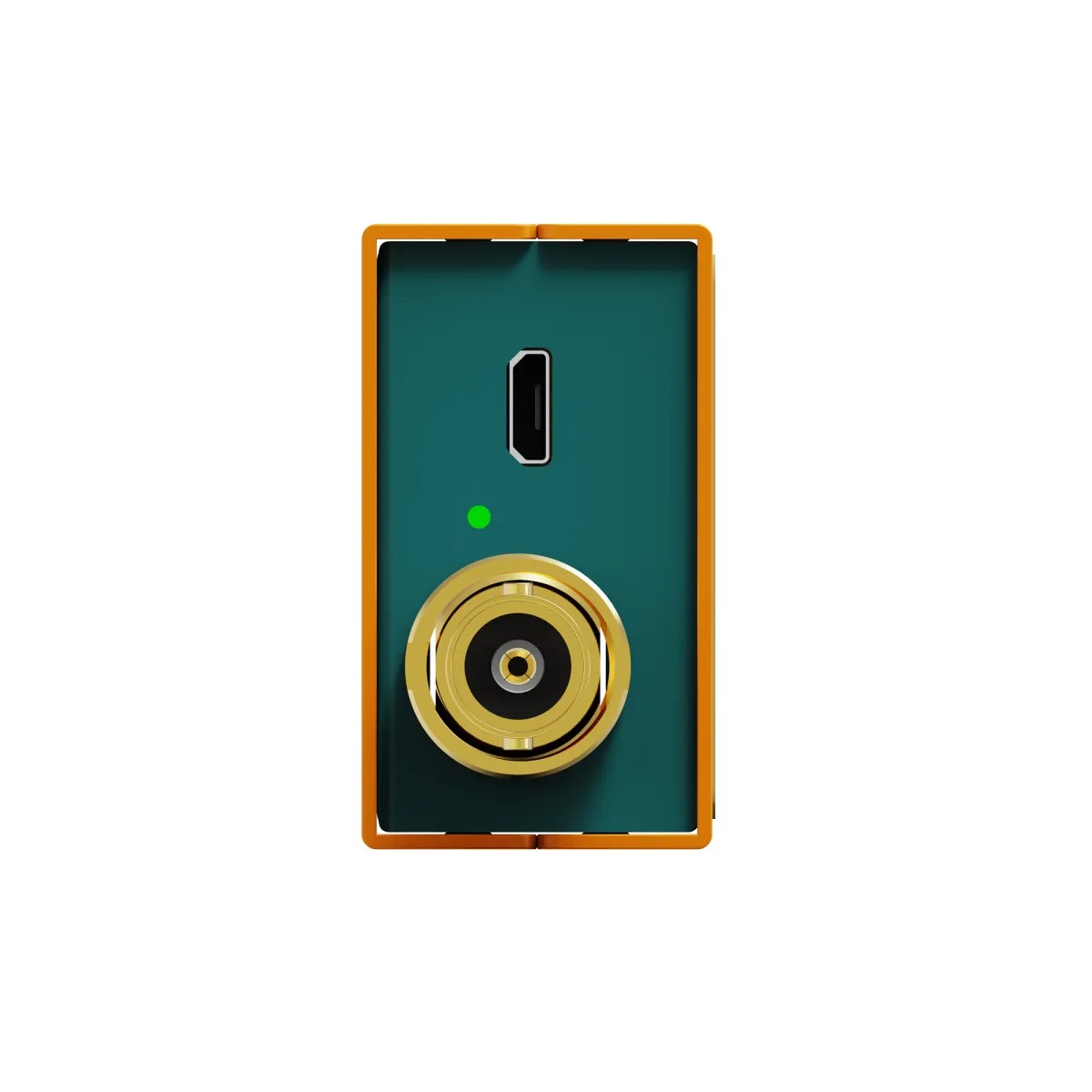

- Input: 1x12G-SDI

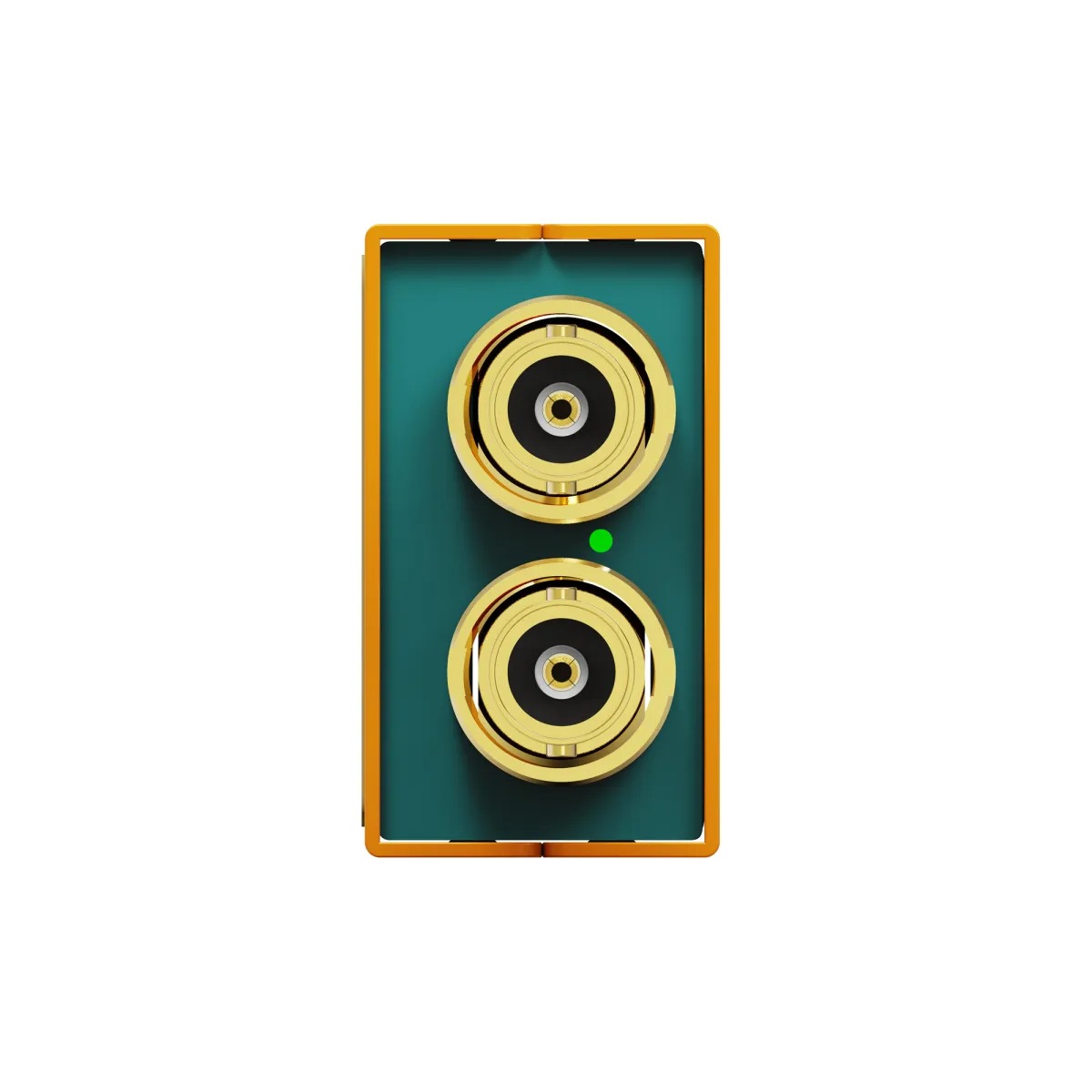

- Output: 2x12G-SDI
- Automatically detects SD, HD, 3G, 6G, and 12G-SDI
- Support DVB-ASI signal
- Automatic cable equalization and signal retiming
- Pass all ancillary data and embedded audio
- 5V micro USB power

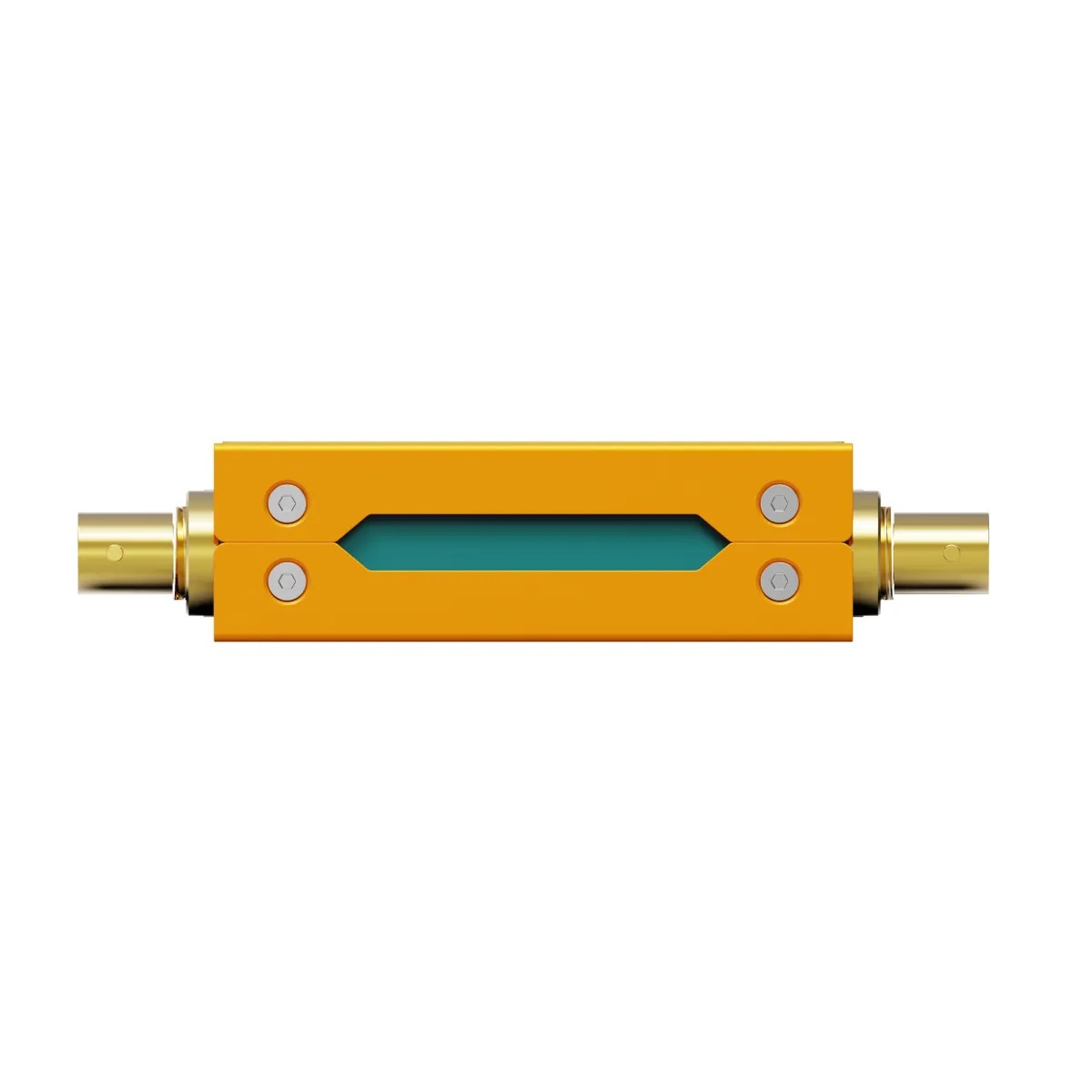

- Detachable bracket design for wall mounting
Specifications
- Input: SD/HD/3G/6G/12G-SDI/DVB-ASI x1
- Output: SD/HD/3G/6G/12G-SDI/DVB-ASI x2
- SDI Video Rate: SD/HD/3G/6G/12G-SDI
- SDI Compliance: SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425M
- ASI Compliance: DVB-ASISDI Color Space: YUV, RGB
- SDI Equalization and Re-Clocking: Yes, SDI input and output support up to 60m/100m for 12G/3G-SDI
- Power Connector: Micro USB
- Voltage Range: USB 5V
- Power Consumption: 1W
- Operating Temperature: -20°C ~ 60°C
- Storage Temperature: -30°C ~ 70°C
- Relative Humidity: 0% ~ 90% non-condensing
- Size: 105.5 x 41 x 23mm
- Weight: 156g
Includes
- 1x AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater
- 1x 5V power adapter
UPC: 6971118001514
