AVMatrix PVS0613U - Portable 6 Channel SDI/HDMI Multi-Format Streaming Switcher

About: AVMatrix PVS0613U - Portable 6 Channel SDI/HDMI Multi-Format Streaming Switcher

Designed for small scale broadcasting and online streaming, the PVS0613U is a perfect compact solution for any desktop live editing situation. With USB Streaming output (for Youtube / Twitch / Zoom streaming), a built in 13.3" FHD LCD monitor and a T-bar for live fades, as well as a whole host of input and output media feeds, the PVS0613U will bring both your online - and offline video presentations to the fore.

• Uncompressed capture for live streaming, complies with UVC & UAC

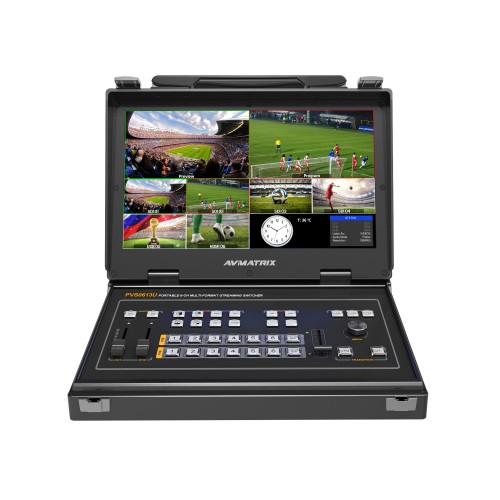

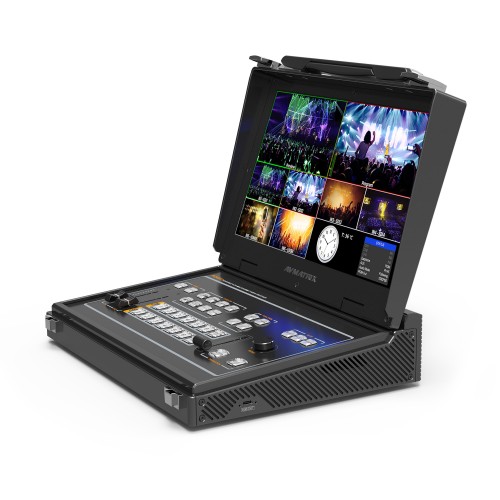

• Built In 13.3 inch FHD IPS LCD monitor
• 6 channels of input : 4×SDI & 2×HDMI

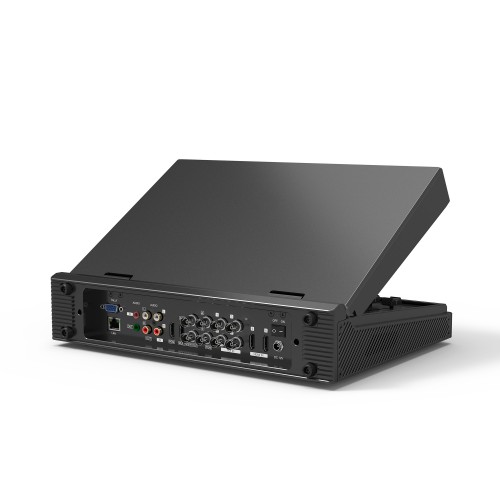

• 1×USB type-C out, 2×SDI & 1×HDMI PGM out, 1×SDI & 1×HDMI multiview out
• 1×SDI AUX output, can be selected as PGM or PVW
• Multi-format input auto-detected and PGM outputs format selectable
• T-Bar/ AUTO/ CUT transitions & Mix/ Fade/ Wipe transition effects
• PIP mode size and position adjustable
• Support audio MIXING and AFV mode
• GPIO for Tally, FTB for emergency

Specifications

• Functions
  • Transitions -  Manual T-Bar / Cut / Auto, Wipe / Mix / Fade / FTB
  • Layouts -  Multiview / PiP
  • Audio Mixer -  AFV / Mixing
  • LCD Display -  13.3 inch FHD LCD monitor
• Inputs
  • SDI Video Inputs -  SD / HD / 3G-SDI (75Ω) x4 / Auto Detects SD, HD, and 3G-SDI
  • HDMI Video Inputs -  HDMI type-A x2
  • Analog Audio Inputs -  RCA (L/R) x1 // 3.5mm Stereo Audio x1
• Standard
  • SDI Input Format Support -  1080p - 60 /59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 --- 1080PsF - 30 / 29.97 / 25 / 24 / 23.98 --- 1080i - 60 / 59.94 / 50 --- 720p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• Outputs
  • SDI PGM Outputs -  SD / HD / 3G-SDI (75Ω) x4
  • HDMI Multiview Output -  HDMI type-A (100Ω) x1
  • Analog Audio Output -  XLR (L/R) x1
  • Tally -  DB-15x1
• Standards
  • SDI & HDMI Scaling PGM Output -  625i 50 PAL, 525i 59.94 NTSC --- 1080p 60 / 50 / 30 / 25 / 24 / 23.98 --- 1080i - 60 / 50 --- 720p - 60 / 50 / 30 / 25
  • SDI Compliance -  SMPTE 292M / SMPTE 259M / SMPTE 424M
