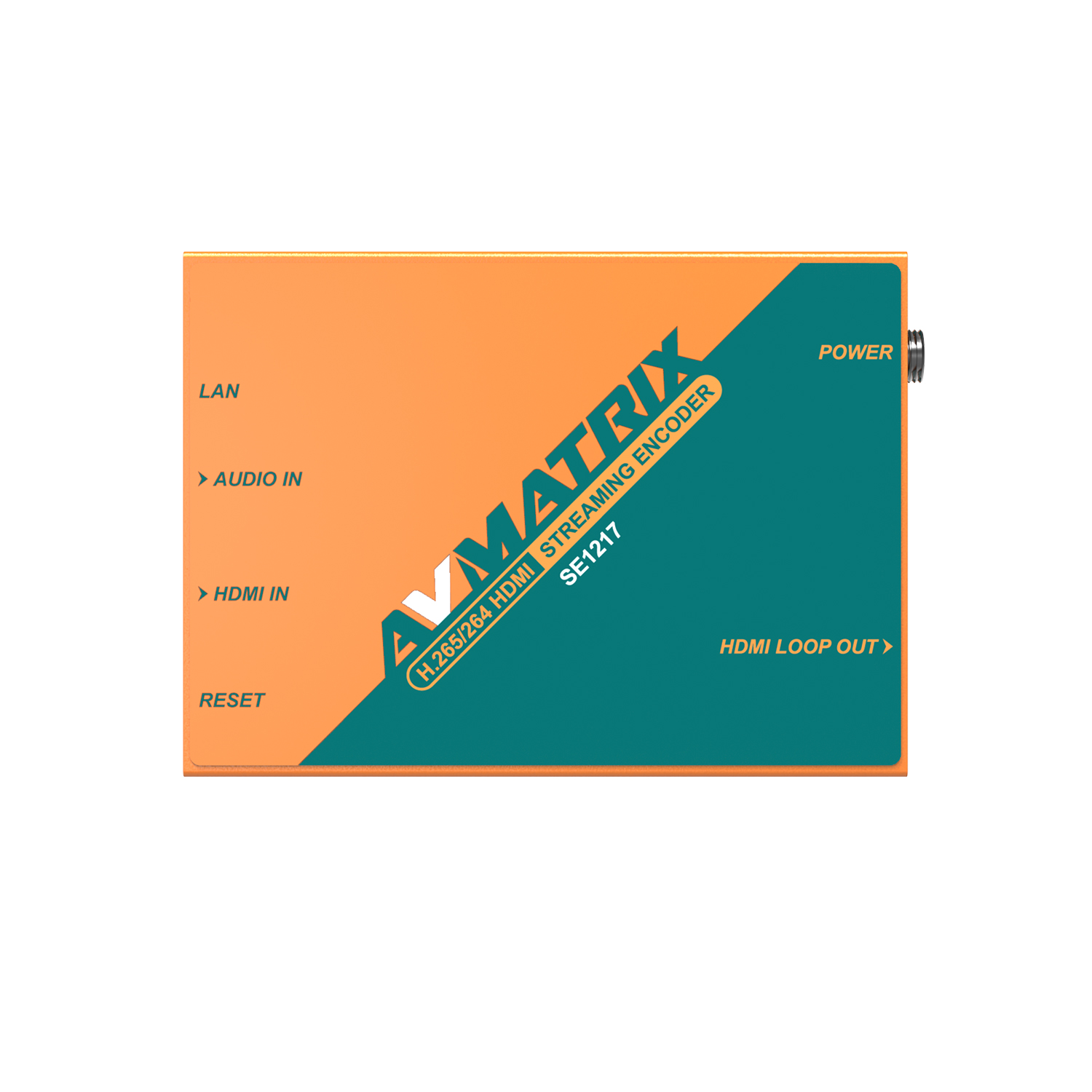

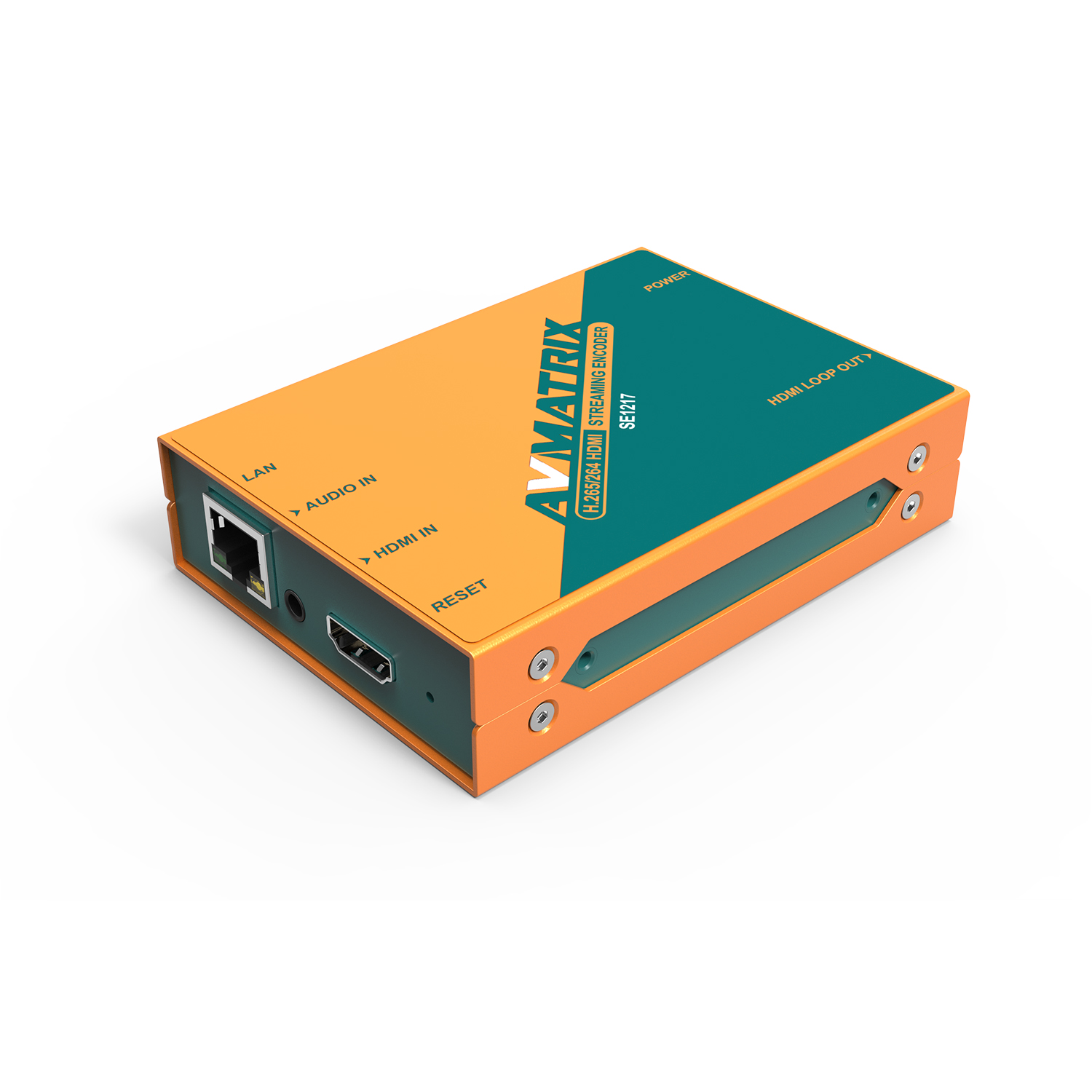

AVMatrix SE1217 - HDMI H.264 / H.265 Streaming Encoder

About: AVMatrix SE1217 - HDMI H.264 / H.265 Streaming Encoder

The AVMatrix SE1217 H.265/264 HDMI Streaming Encoder is designed for both unicast and multicast. The SE1217 supports both LAN and WAN Streaming and features simultaneous main and sub streaming with compatibility for all major streaming platforms.

Features

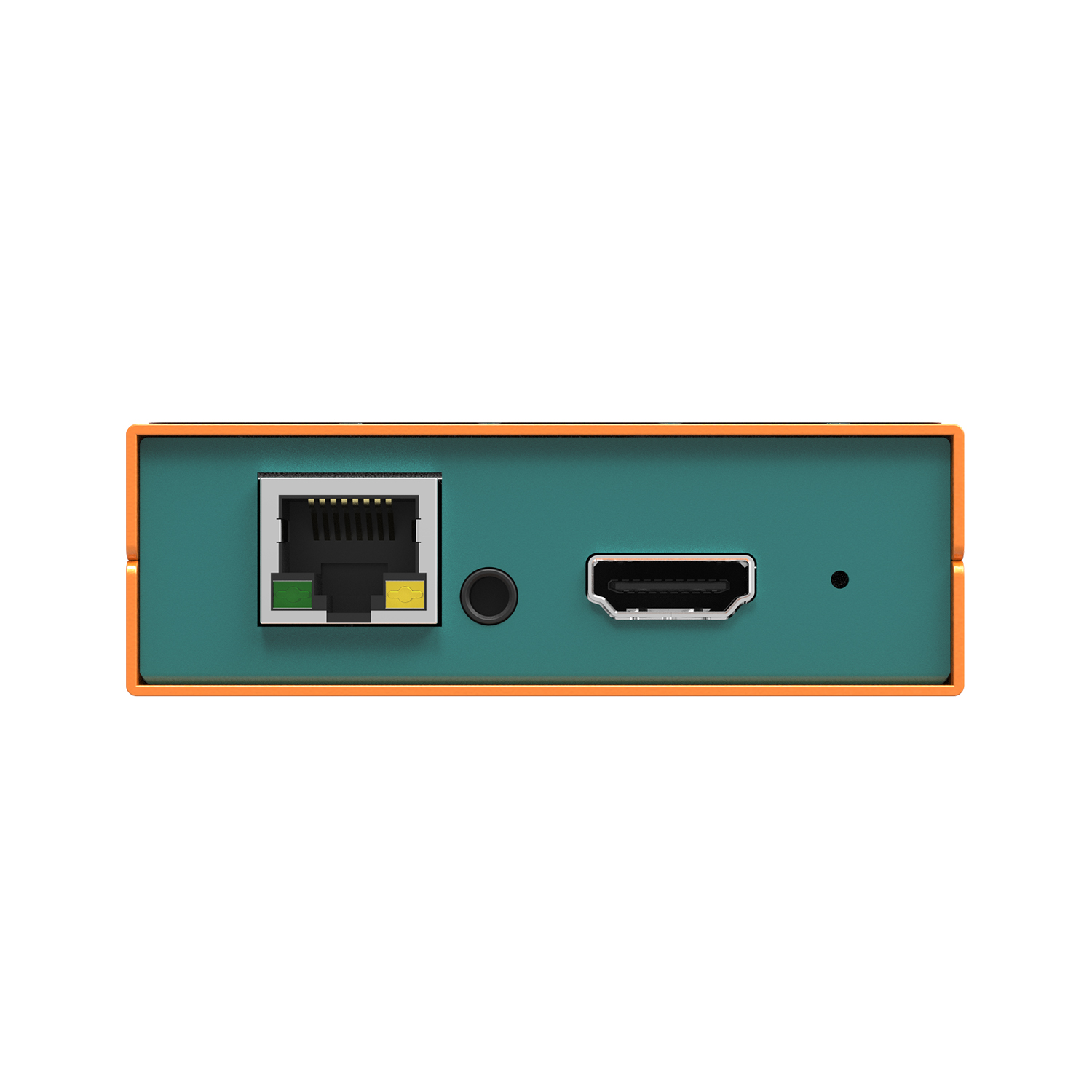

• 1xHDMI input, 1xHDMI loop out, 1xAnalog audio input
• Supports H.265/ H.264 stream encode protocol, up to 1080p60hz
• Dual-stream (main stream and sub stream)
• RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast
• Video and audio streaming or single audio streaming
• Image and text overlay
• Mirror image & upside-down image
• Live stream with no need for connecting a computer

Specifications

• Input
  • Video Input Connectors: 1 x HDMI
  • Input Video Format: HDMI
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
  • 1080i: 50/59.94/60 fps
  • 720p: 23.98/24/25/29.97/30/50/59.94/60 fps
  • 576p: 50 fps
  • 576i / 625 lines: 50 fps
  • 480p: 59.94/60 fps
  • 480i / 525 lines: 59.94/60 fps
  • Audio Input Connectors: 1 x 1/8" / 3.5 mm TRS Stereo Analog
  • Input Audio Format: Analog
  • Embedded Audio Input: HDMI
• Output

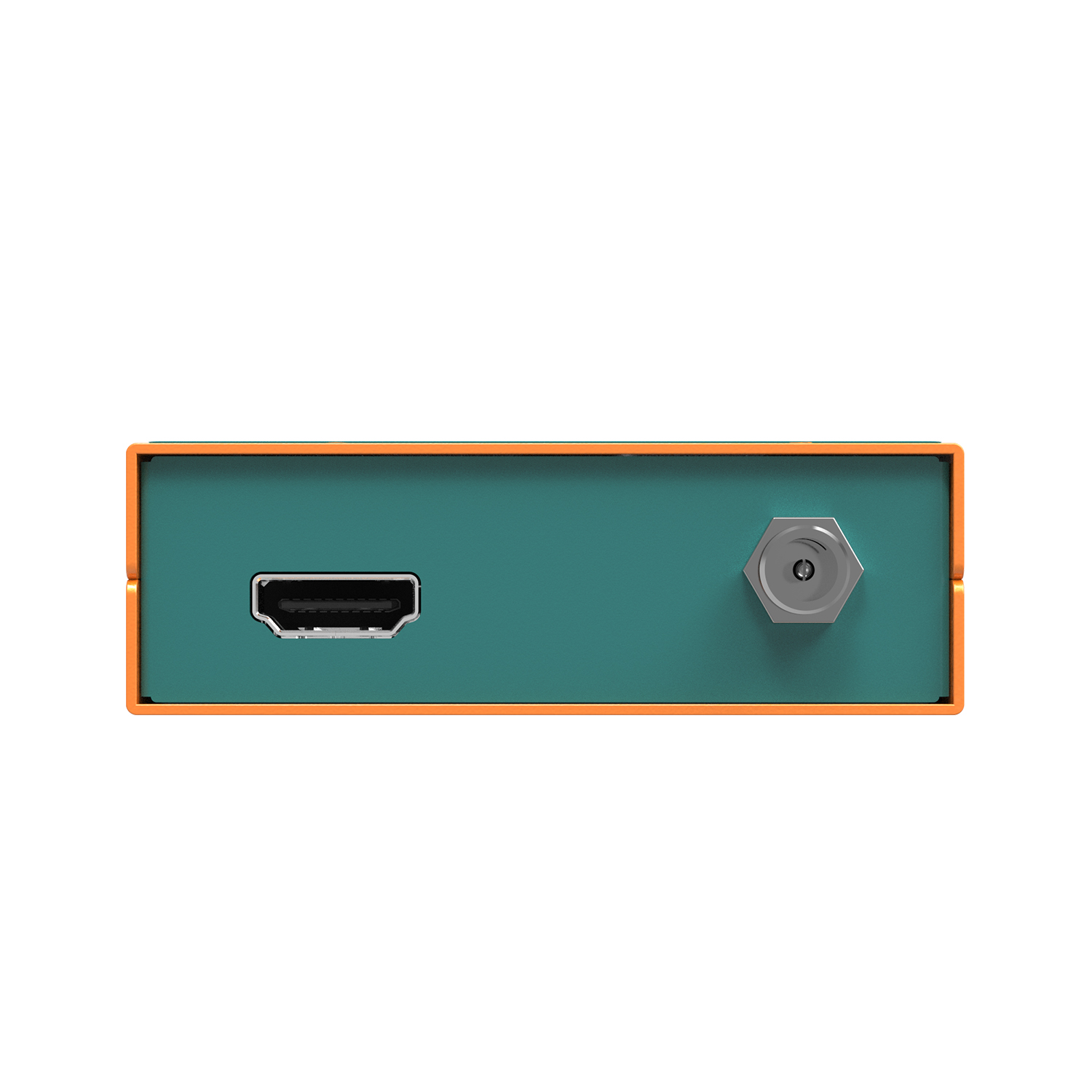

  • Video Output Connectors: 1 x HDMI (Loop Output)
  • Output Video Format: HDMI
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
  • 1080i: 50/59.94/60 fps
  • 720p: 23.98/24/25/29.97/30/50/59.94/60 fps
  • 576p: 50 fps
  • 576i / 625 lines: 50 fps
  • 480p: 59.94/60 fps
  • 480i / 525 lines: 59.94/60 fps
  • Audio Output Connectors: None
  • Embedded Audio Output: HDMI
• Connectivity
  • Other I/O: 1 x RJ45 LAN
  • Expansion Slots: None
• IP Streaming
  • Video IP Encoding: H.264, H.265: 640 x 360 to 1920 x 1080 at 60p
  • Audio IP Encoding: AAC, MPEG Layer 2, G.711
• Hardware
  • Wi-Fi Support: Yes
• Power
  • Power Connector: 1 x Barrel (12 VDC at 2 A) Input
  • Power Consumption: 5 W
• Environmental
  • Operating Temperature: 32 to 104°F / 0 to 40°C
  • Storage Temperature: -4 to 158°F / -20 to 70°C

Item Includes

• 1x AVMatrix SE1217 Encoder
• 1x 12V 2A Power Supply
• 1x Mounting Bracket
