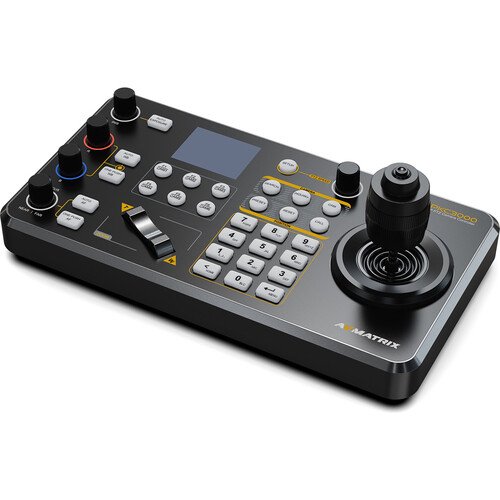

AVMatrix PKC3000 - Professional IP & Serial PTZ Camera Joystick Controller

About: AVMatrix PKC3000 - Professional IP & Serial PTZ Camera Joystick Controller

The AVMATRIX PKC300 has a variety of control interfaces including IP, RS-422/RS-485/RS-232. The rich control interface makes it easy to match camera connections of different interfaces. It offers cross protocol mix-control on one controller operating Protocol by VISCA, VISCA over IP, and Pelco P&D, as well as ONVIF. Control multiple different PTZ camera brands simultaneously, including AVMATRIX HuddleCamHD, PTZOptics, Sony, BirdDog, and NewTek.

Features

• Control protocol by VISCA, VISCA-Over-IP, Onvif and Pelco P&D
• Control up to total of 255 IP cameras on a single network
• 6 camera quick call up keys, and 6 user-assignable keys to quickly invoke shortcut functions
• Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
• Tactile feel with professional rocker/seesaw switch for zoom control
• Automatically search available IP cameras in a network and assign IP addresses easily
• Multi-color key illumination indicator directs operation to specific functions
• Tally GPIO output for indicating the camera be currently controlled

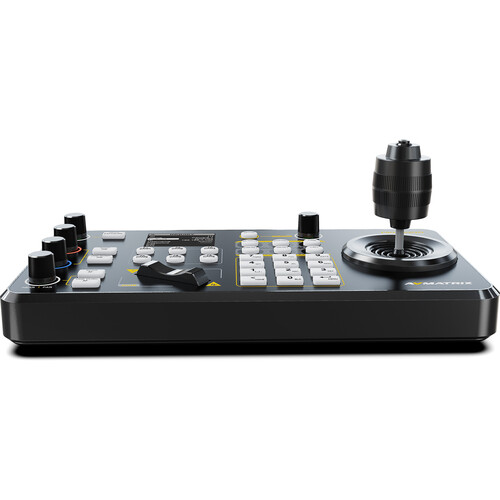

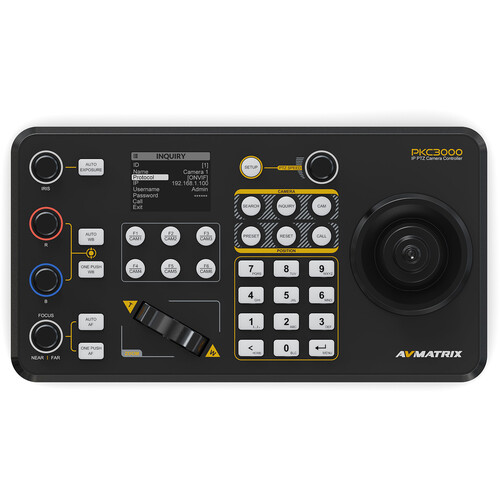

• Metal housing with 2.2 inch LCD display, 4D joystick, 5 rotation button
• Supports both POE and 12V DC power supplies

Specifications

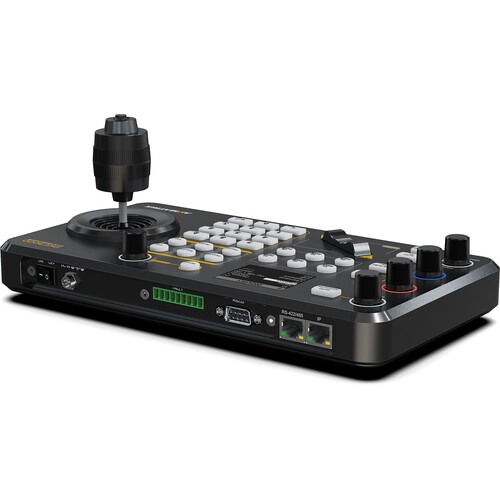

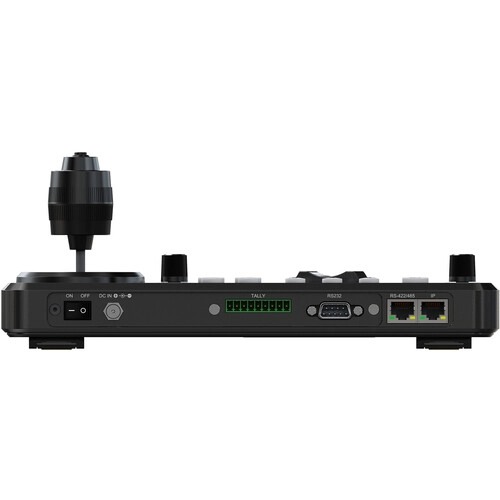

• Interfaces: IP (RJ45), RS-232, RS-485/RS-422
• Control Protocol: IP Protocol ONVIF, VISCA over IP, Serial Protocol Pelco-D, PELCO-P, VISCA
• Serial Baud Rate: 2400, 4800, 9600, 19200, 38400 bps
• Display: 2.2 inch LCD
• Joystick: 4D joystick (Pan/Tilt/Zoom/Lock)
• Camera Shortcut: 6-channel
• Keyboard: User-assignable keys x6, rotation button x5, rocker x1, seesaw x1
• Camera Address: Up to 255
• Preset: Up to 255
• Power: PoE/DC 12V
• Power Consumption: PoE: 5W, DC: 5W
• Working Temperature: -20°C ~ 60°C
• Storage Temperature: -40°C ~ 80°C
• Dimensions: 270mm x 145mm x 29.5mm / 270mm x 145mm x 106.6mm (with joystick)
• Weight: 1181g

Item Includes

• 1x AVMATRIX PKC3000 IP & Serial PTZ Camera Joystick Controller
