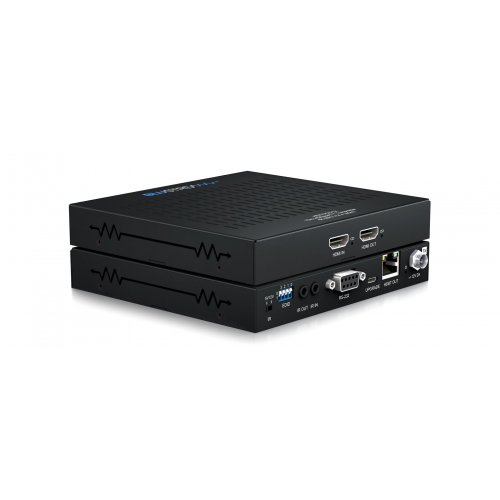

BLUSTREAM HEX70CS-TX HDBaseT Transmitter - 70m

Model: HEX70CS-TX

BLUSTREAM HEX70CS-TX HDBaseT Transmitter - 70m
BLUSTREAM HEX70CS-TX HDBaseT Transmitter - 70m
BLUSTREAM HEX70CS-TX HDBaseT Transmitter - 70m
BLUSTREAM HEX70CS-TX HDBaseT Transmitter - 70m
BLUSTREAM HEX70CS-TX HDBaseT Transmitter - 70m
Call for Price
  • Free Shipping!
  •  Special Order: Contact us for Lead Time
  • Not yet reviewed
Call for details

More models to choose from:

Extender Set
Transmitter
Receiver


About: BLUSTREAM HEX70CS-TX HDBaseT Transmitter - 70m

Our HEX70CS-TX HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT transmitter offers market leading features and outstanding value utilising CSC technology with video down conversion.

The product extends HDMI, bi-directional IR & RS-232, and bi-directional PoC (Power over Cable) up to lengths of 70m (4K 40m) to a compatible receiver or matrix.

The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC)
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
  • Supports bi-directional RS-232 pass-through
  • Supports bi-directional IR pass-through
  • Supports bi-directional IR pass-through with switchable
  • 5V/12V IR hardware support
  • HDCP 2.2 support

Specifications

  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT RJ45 connector, 1 x HDMI Type A female
  • RS-232 Serial Port: 1 x DB-9 female
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • EDID DIP Switch: 4-pin
  • Power Supply: 12V/2A DC, screw type connector
  • Power Consumption: 12.7W
  • Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
  • Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
  • Ind. Extender Weight: 0.35kg (excluding accessories)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting Kit Included

What's in the Box

  • 1x HEX70CS-TX
  • 1x Mounting Kit

UPC: 9340242003300

Reviews: BLUSTREAM HEX70CS-TX HDBaseT Transmitter - 70m

There are currently no product reviews.
