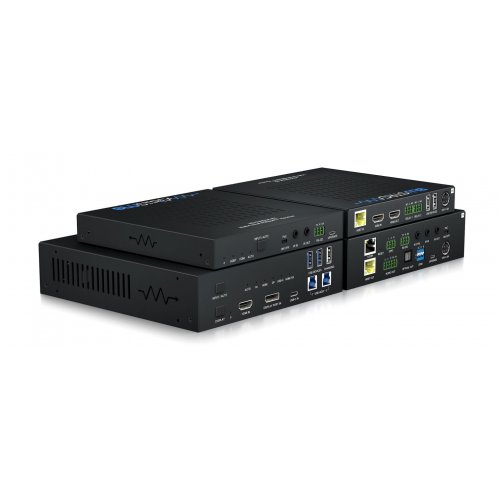

BLUSTREAM HEX70HDUK-KIT Multi Format HDBaseT CSC Extender Set

About: BLUSTREAM HEX70HDUK-KIT Multi Format HDBaseT CSC Extender Set

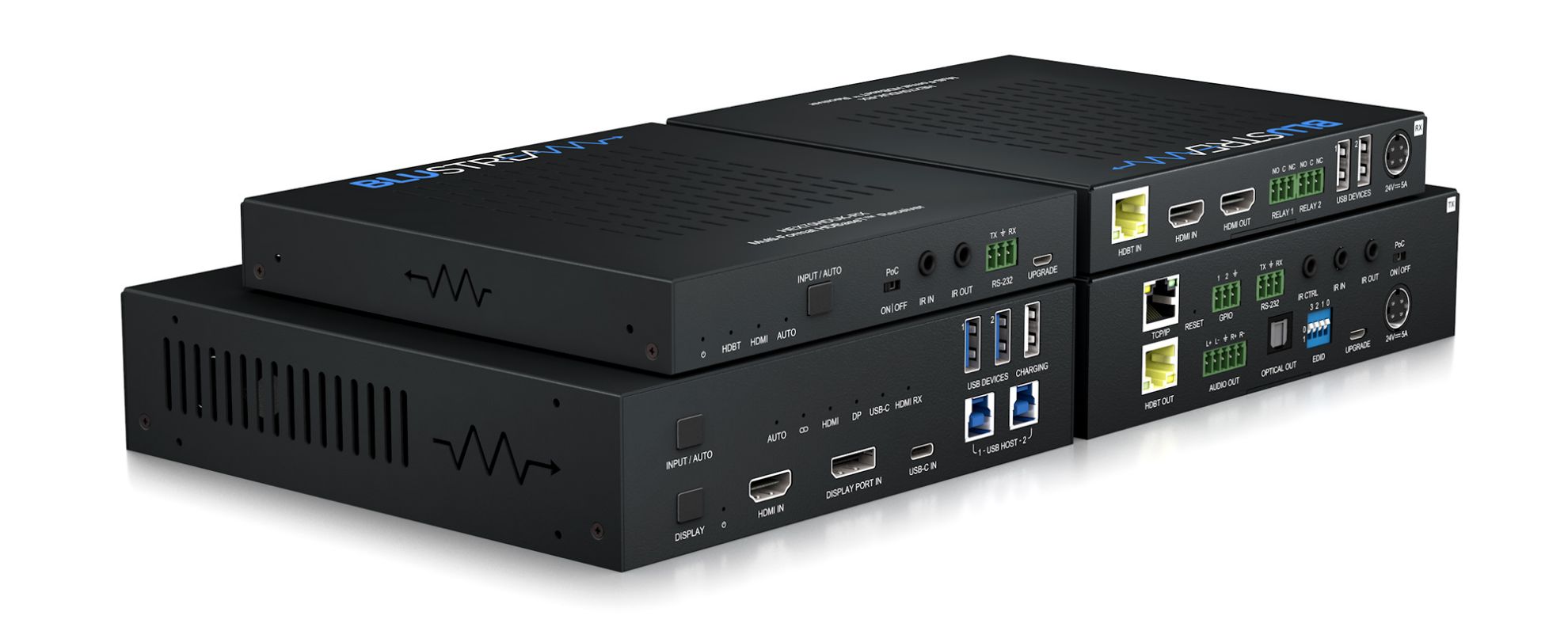

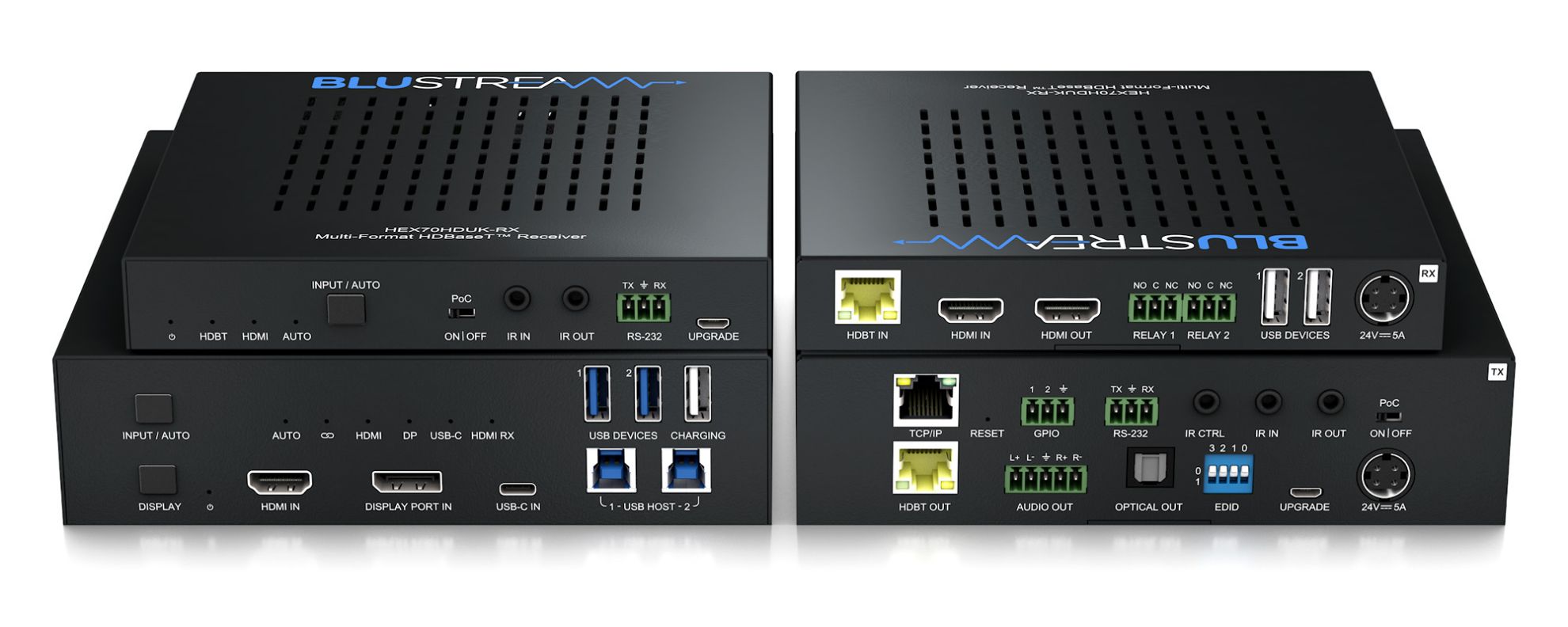

The HEX70HDUK-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort up to lengths of 40m (70m at 1080p) over a single CAT cable.

The HEX70HDUK-KIT provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseT Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through.

The HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.

• Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort input on the HDBaseT Transmitter with manual or auto source selection
• Features 1 x local HDMI input on the HDBaseT Receiver for connection of a source local to the display
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p up to a distance of 70m over single CAT cable
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*
• Supports DisplayPort up to 4K UHD 60Hz 4:4:4 DP1.2
• Features 2 x USB-Type A devices (RX - peripherals), 2 x USB-Type A devices (TX - peripherals) and 2 x USB Type-B (TX - host source specific) that support a combined data transmission bandwidth of up to 250Mbps
• USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
• Independent USB Type-A connection to support charging only of devices up to 5V 2A
• Audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently**
• Bi-directional IR pass-through
• Auto display on/off feature allowing control of display at the HDBaseT Receiver via CEC or RS-232
• Web interface module for control and configuration of HEX70HDUK-KIT
• Control via front panel, IR, RS-232 and TCP/IP
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Advanced EDID ad HDCP management
  • *USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device
  • **Analogue audio breakout supports 2ch PCM only

Specifications

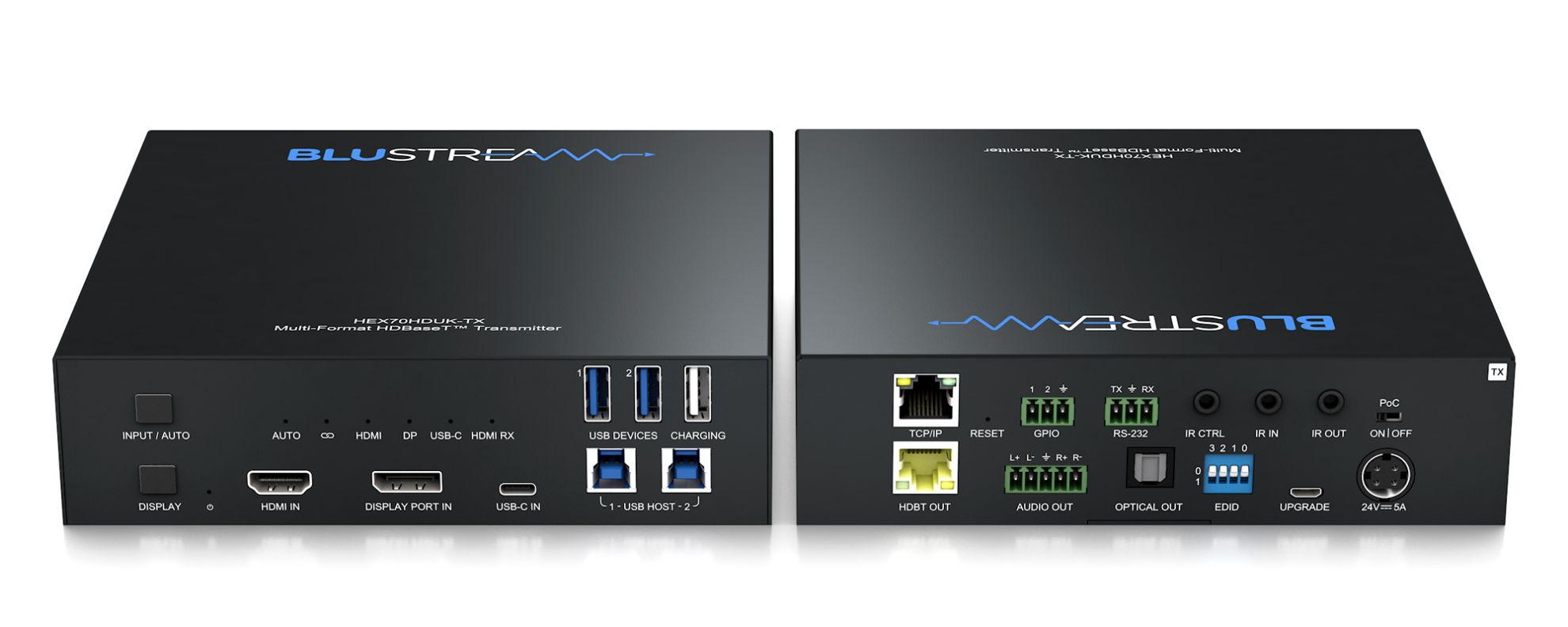

• HEX70HDUK-TX
  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort
  • Video Output Connectors: 1 x HDBaseT RJ45 connector
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 2 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • USB Ports: 3 x USB Type-A (1 x for charging only), 2 x USB Type-B
  • EDID: 4-pin DIP switch
  • Product Upgrade: 1 x Micro USB, female
  • Local Power Input: 1 x 24V/5A 4-pin DIN connector
  • Casing Dimensions (W x H x D): 183mm x 44mm x 173mm

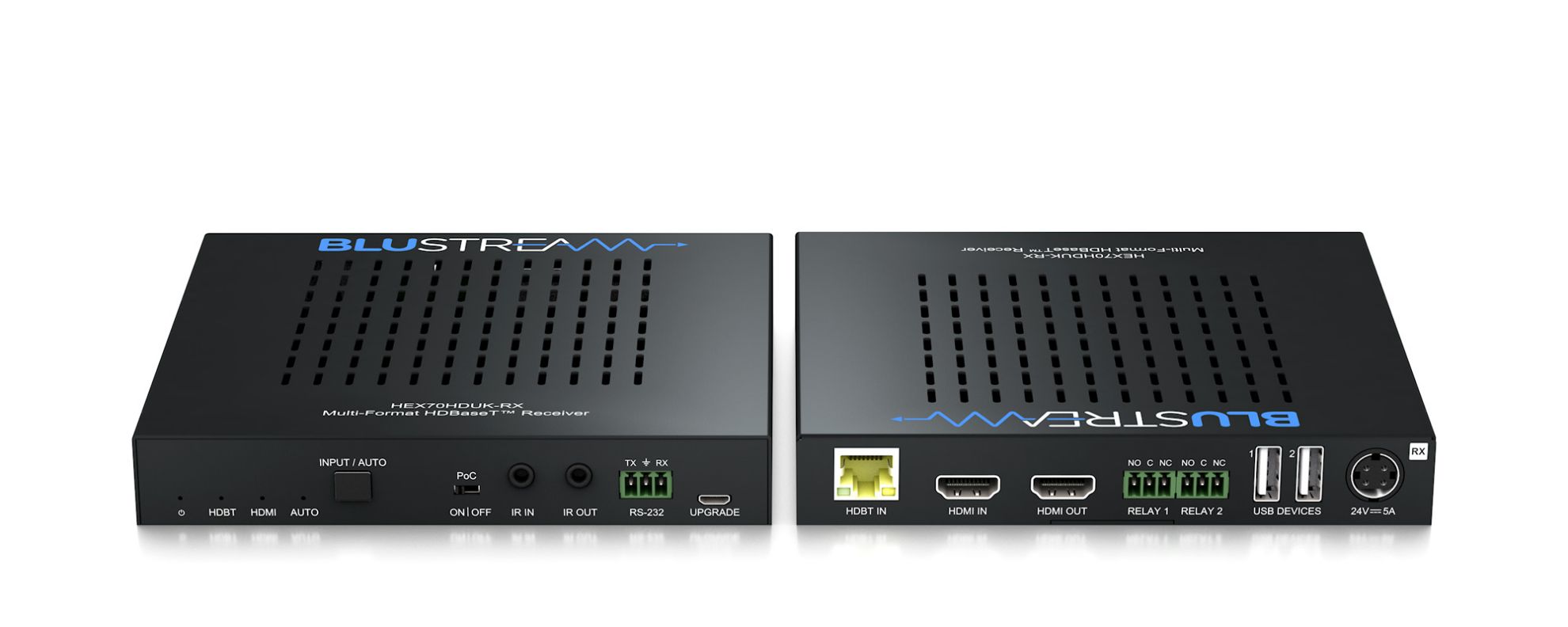

• HEX70HDUK-RX
  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT RJ45 connector
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • Relay Control: 2 x 3-pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • USB Ports: 2 x USB Type-A
  • EDID: 4-pin DIP switch
  • Product Upgrade: 1 x Micro USB, female
  • Local Power Input: 1 x 24V/5A 4-pin DIN connector
  • Casing Dimensions (W x H x D): 155mm x 24mm x 155mm
• General
  • Power Supply: 24V/5A 4-pin DIN connector
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)

What's in the Box

• 1x HEX70HDUK-TX
• 1x HEX70HDUK-RX
• 1x 24V/5A DC power supply
• 1x USB-A to USB-B cable
• 1x IRE1 emitter
• 1x IRR receiver
• 1x RS-232 control cable
• 2x Mounting kit
• 1x Quick Reference Guide
