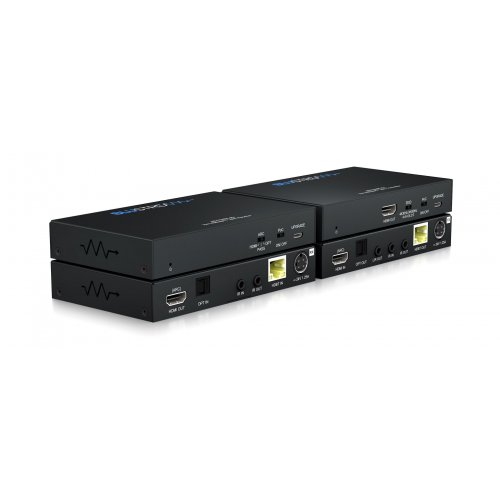

BLUSTREAM HEX70ARC-KIT HDBaseT ARC Extender Set - 70m

About: BLUSTREAM HEX70ARC-KIT HDBaseT ARC Extender Set - 70m

The HEX70ARC-KIT 4K HDBaseT ARC extender set offers market leading features for the custom installation industry.

The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).

• Advanced HDBaseT technology offering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input
• Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
• Bi-directional IR pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 2.2 compliant with smart EDID management
  • *Please note: Optical and L/R audio breakout on the HEX70ARC-TX are for audio return channel use only. HDMI source audio cannot be broken out from these connections.

Specifications

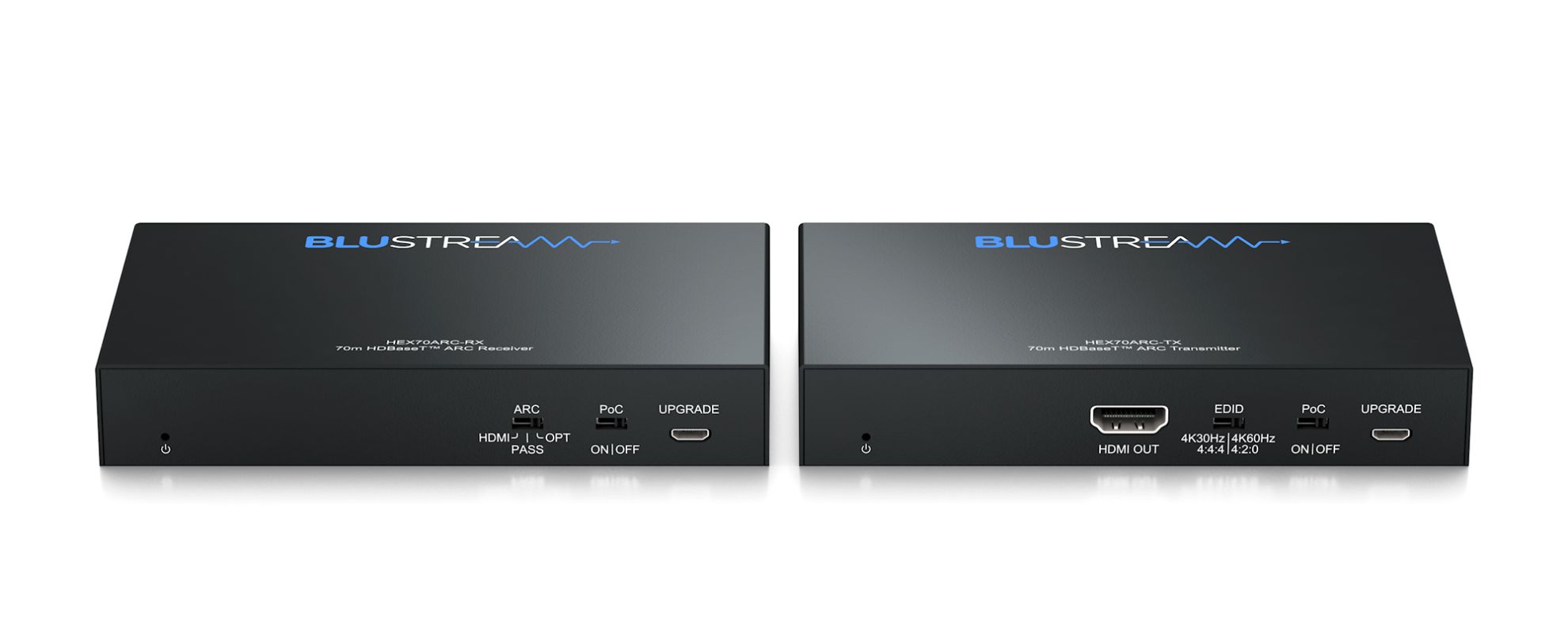

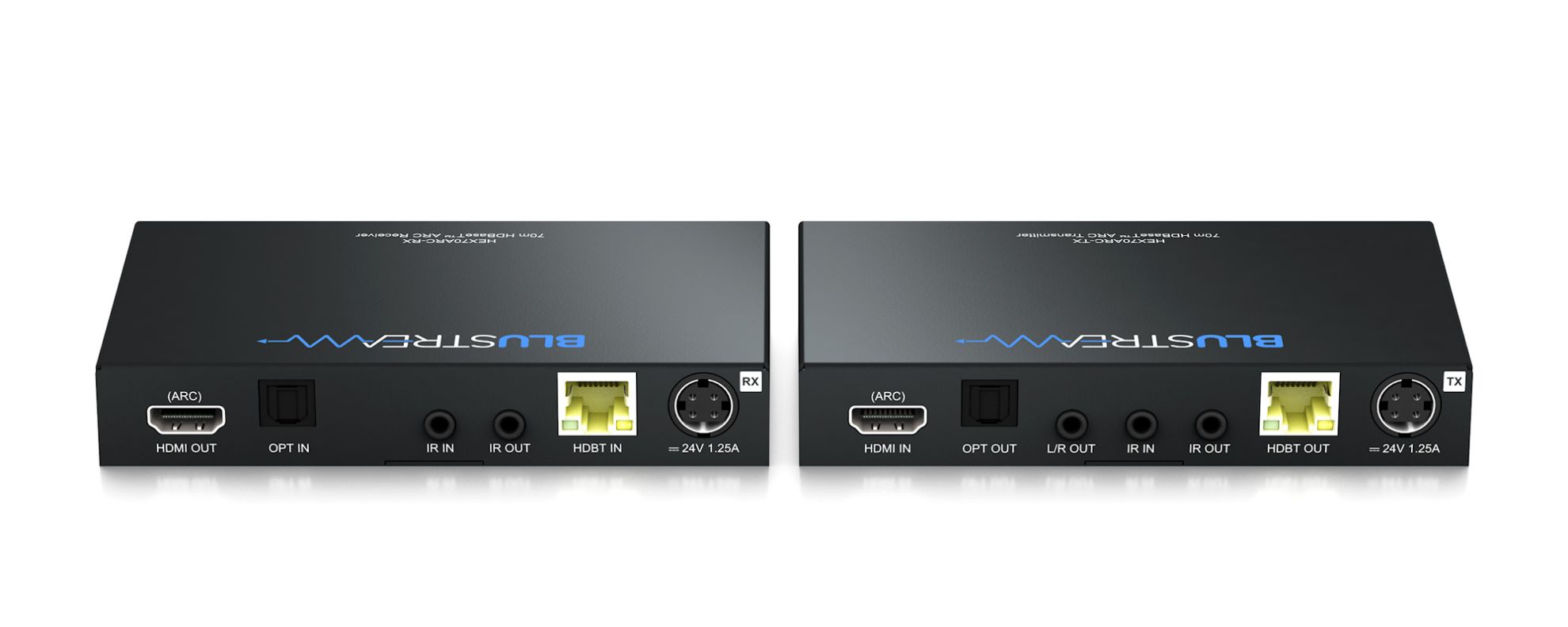

• HEX70ARC-TX
  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT RJ45 connector, 1 x HDMI Type A, female
  • Audio Output Ports: 1 x Optical (S/PDIF), 1 x 3.5mm L/R analogue audio (audio return only)
  • IR Input Port: 1 x 3.5mm stereo jack
  • IR Output Port: 1 x  3.5mm mono jack
  • Product Upgrade: 1 x Micro-USB, female
  • Casing Dimensions (W x D x H): 135 x 84 x 21mm
• HEX70ARC-RX
  • Video Input Connectors: 1 x HDBaseT RJ45 connector
  • Video Output Connectors: 1 x HDMI Type A, female
  • Audio Input Port: 1 x Optical (S/PDIF)
  • IR Input Port: 1 x 3.5mm stereo jack
  • IR Output Port: 1 x 3.5mm mono jack
  • Product Upgrade: 1 x Micro-USB, female
  • Casing Dimensions (W x D x H): 135 x 84 x 21mm
• General
  • Power Supply: 1 x 24V/1.25A DC, 4-pin DIN connector
  • Box Dimensions (W x D x H): 248 x 151 x 103mm
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)

What's in the Box

• 1x HEX70ARC-TX
• 1x HEX70ARC-RX
• 1x 24V/1.25A DC Power Supply
• 1x IR Emitter
• 1x IR Receiver
• 2x Mounting Bracket Sets
• 1x Quick Reference Guide
