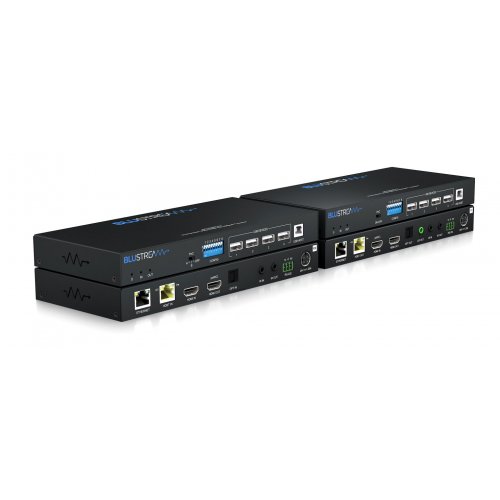

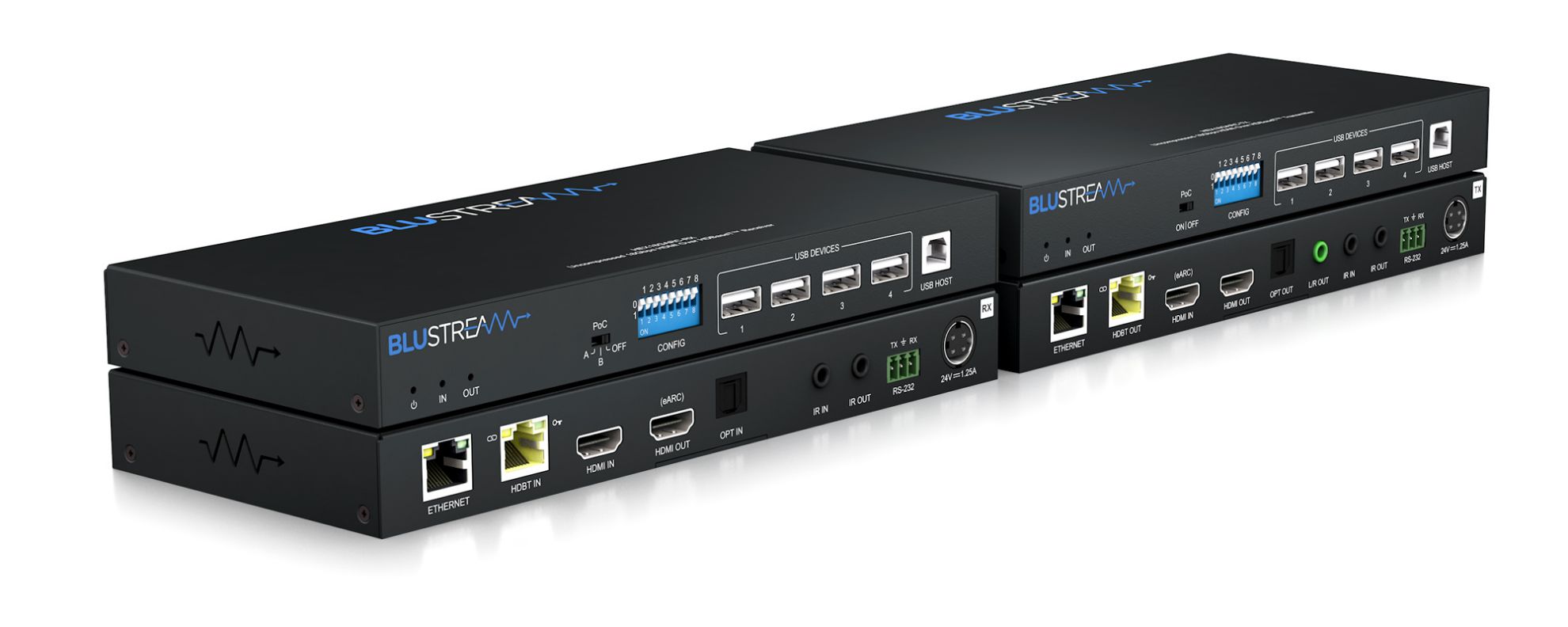

BLUSTREAM HEX18GARC-KIT Advanced HDBaseT Extender Set - 100m

About: BLUSTREAM HEX18GARC-KIT Advanced HDBaseT Extender Set - 100m

The HEX18GARC-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT technology.

The HEX18GARC-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.

The HEX18GARC-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable. The HEX18GARC-KIT also provides enhanced features including KVM, eARC via HDMI, or ARC via HDMI or Optical (S/PDIF), and 1Gb Ethernet pass through.

• Advanced uncompressed, unconverted, HDMI over HDBaseT technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
• Supports HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
• Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
• Supports HDMI video distribution up to 100m*
• Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HDBaseT Receiver to help solve HDMI HDCP, compatibility, and handshaking issues
• Supports eARC (Enhanced Audio Return Channel) from display via HDMI, and standard ARC from HDMI and Optical (S/PDIF) digital inputs
• Supports audio return to HDMI (eARC compatible), optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissions
• Features USB 2.0 for KVM with speeds of up to 350Mbps
• Bi-directional Ethernet (1Gb), IR, & RS-232 pass through
• Supplied with Blustream IR receiver and emitter
• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4
  • *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling

Specifications

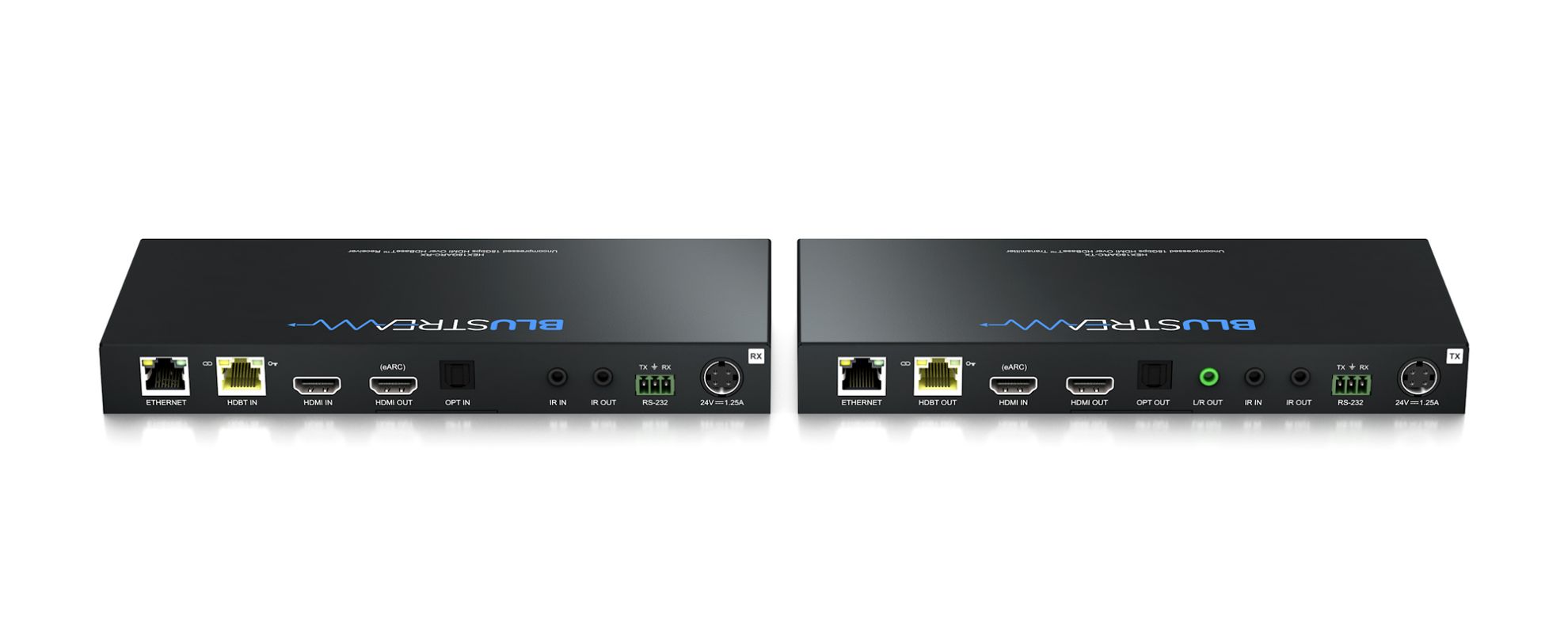

• HEX18GARC-TX:
  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT RJ45 connector,  1x HDMI Type A, female
  • Audio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (S/PDIF)
  • Ethernet port: 1 x RJ45 connector
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack
  • CTRL: 8-PIN DIP switch
• HEX18GARC-RX:
  • Video Input Connectors: 1 x HDBaseT RJ45 connector, 1x HDMI Type A, female
  • Video Output Connectors: 1 x HDMI Type A, female (reserved for future use)
  • Audio Input Connectors: 1 x Optical (S/PDIF)
  • Ethernet port: 1 x RJ45 connector
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack
  • CTRL: 8-PIN DIP switch
• General
  • Casing Dimensions (W x D x H ): 220mm x 100mm x 25mm (TX/RX)
  • Shipping Weight (kit): 1.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting kits included
  • Power Supply: 1 x 24V/1.25A DC

What's in the Box

• 1x HEX18GARC-TX Transmitter
• 1x HEX18GARC-RX Receiver
• 1x 24V/1.25A DC power supply
• 1x USB-A to USB-B cable
• 1x IRE1 receiver
• 1x IRR emitter
• 4x Mounting brackets
• 1x Quick Reference Guide
